Maintenance and Adjustment

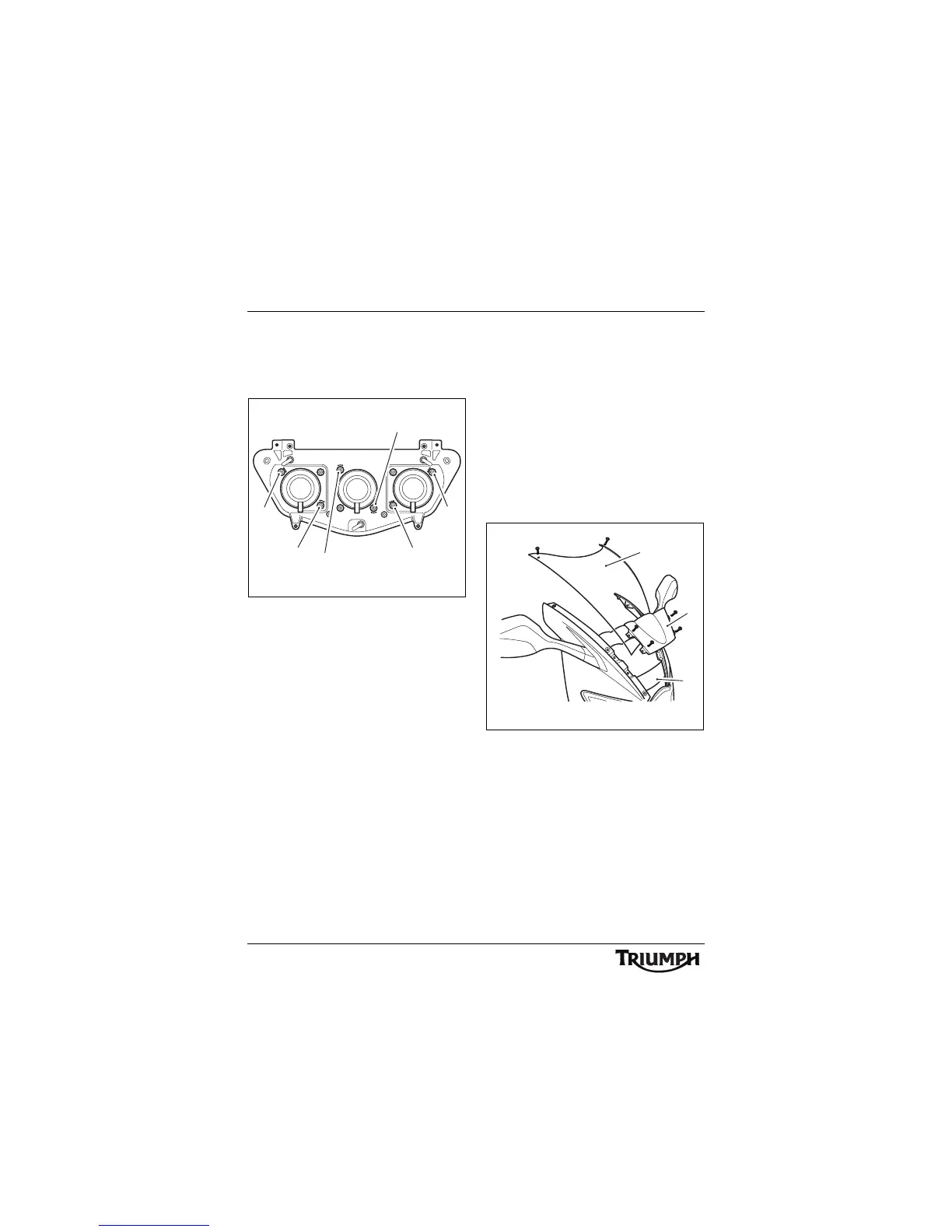

Headlight Adjustment
Each headlight can be adjusted by means of
vertical and horizontal adjustment screws
located on the top and rear of each headlight.
1. Horizontal adjustment screw
(LH dipped headlight)
2. Vertical adjustment screw (LH dipped
headlight)
3. Horizontal adjustment screw (main
beam)
4. Vertical adjustment screw (main
beam)
5. Vertical adjustment screw (RH dipped
headlight)
6. Horizontal adjustment screw (RH
dipped headlight)
Note:
• The illustration shows a view of
the rear of the lighting assembly.
• When turning the adjustment
screws, clockwise and
anti-clockwise directions are as
viewed from the rear of the
lighting assembly.
Main Beam Horizontal Adjustment
The main beam horizontal adjustment screw
is accessible without removing any panels. It
can be reached from below the lights.
Switch the main beam on.
Turn the adjustment screw clockwise to move
the beam to the left or anti-clockwise to move
the beam to the right.
Switch the headlights off when the beam
setting is satisfactory.
Main Beam Vertical Adjustment
1. Windscreen
2. Cover panel
3. Adjustment screw access
Remove the screws securing the windscreen
to the cockpit. Slide the windscreen upwards
and to the rear to remove it.
Remove the screws securing the cover panel
and remove the panel.
The adjustment screw is now accessible.
Switch the main beam on.
U
U
U
L
L
R
R
D
D
D
L
R
ccoy
1
2
3
4
5
6
ccpj
1
3
2

Triumph 1050 Sprint Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050 cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Front Brakes	Twin 320mm floating discs, 4 piston calipers
Rear Brakes	Single 255mm disc, 2 piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Dry Weight	210 kg
Exhaust	Stainless steel 3 into 1 exhaust system
Ignition	Digital - inductive type
Frame	Aluminum beam perimeter
Front Suspension	43mm
Rear Suspension	Monoshock with adjustable preload
Rake/Trail	24 degrees
Dimensions	Length: 2, 115 mm, Width: 760 mm, Height: 1, 210 mm
