Triumph 1050 Sprint User Manual

105
Maintenance and Adjustment

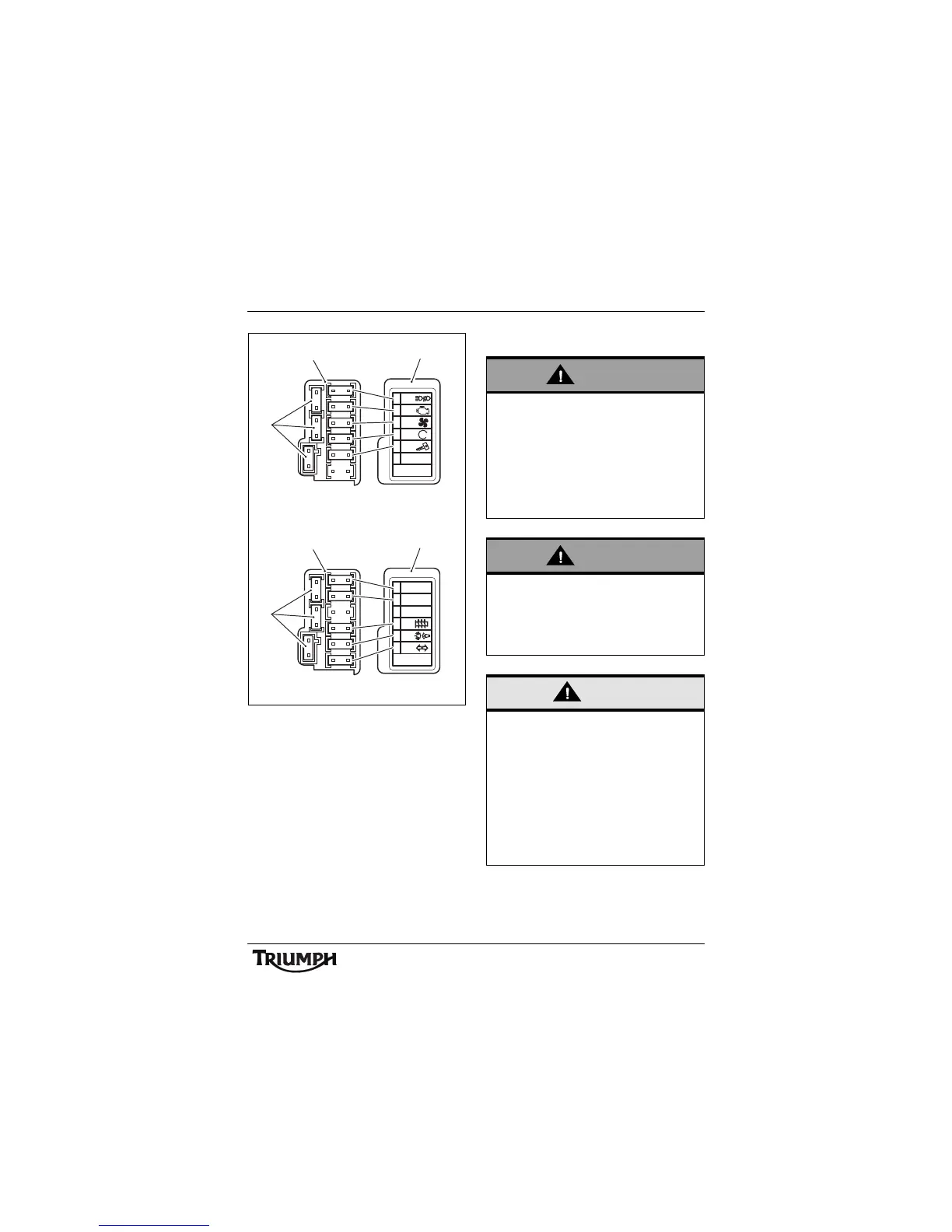

1. Fuse box number 1 (left hand)
2. Fuse box cover
3. Fuse box number 2 (right hand)
4. Fuse box cover
5. Spare fuses
Note:
• The starter solenoid has an
additional 30 Amp fuse, attached
directly to the solenoid, beneath
the rider's seat.
Headlights
20
10
10
15
10
10
20
20
EMPTY
6
OPEN
15A
5
10A 4
15A
3
20A 2
20A 1
1
2
5
20
20
10
10
10
10
20
20
20A 6
OPEN
10A
5
10A 4
2A
3
20A
2
20A
1
3
4
5
cebw
ABS
ABS
GPS
Warning
Adjust road speed to suit the visibility and
weather conditions in which the motorcycle
is being operated.
Ensure that the beams are adjusted to
illuminate the road surface sufficiently far
ahead without dazzling oncoming traffic.
An incorrectly adjusted headlight may
impair visibility causing an accident.
Warning
Never attempt to adjust a headlight beam
when the motorcycle is in motion.
Any attempt to adjust a headlight beam
when the motorcycle is in motion may
result in loss of control and an accident.
Caution
If the motorcycle is to be used under
closed-course conditions, you may be
asked to tape the visible outer surface of
the headlight.
When taped, the headlight will overheat
and distort the outer surface. Therefore, to
avoid headlight distortion, always
disconnect the headlights when they are
taped for use under closed-course
conditions.

Triumph 1050 Sprint Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050 cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Front Brakes	Twin 320mm floating discs, 4 piston calipers
Rear Brakes	Single 255mm disc, 2 piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Dry Weight	210 kg
Exhaust	Stainless steel 3 into 1 exhaust system
Ignition	Digital - inductive type
Frame	Aluminum beam perimeter
Front Suspension	43mm
Rear Suspension	Monoshock with adjustable preload
Rake/Trail	24 degrees
Dimensions	Length: 2, 115 mm, Width: 760 mm, Height: 1, 210 mm
