Triumph 1050 Sprint User Manual

83
Maintenance and Adjustment

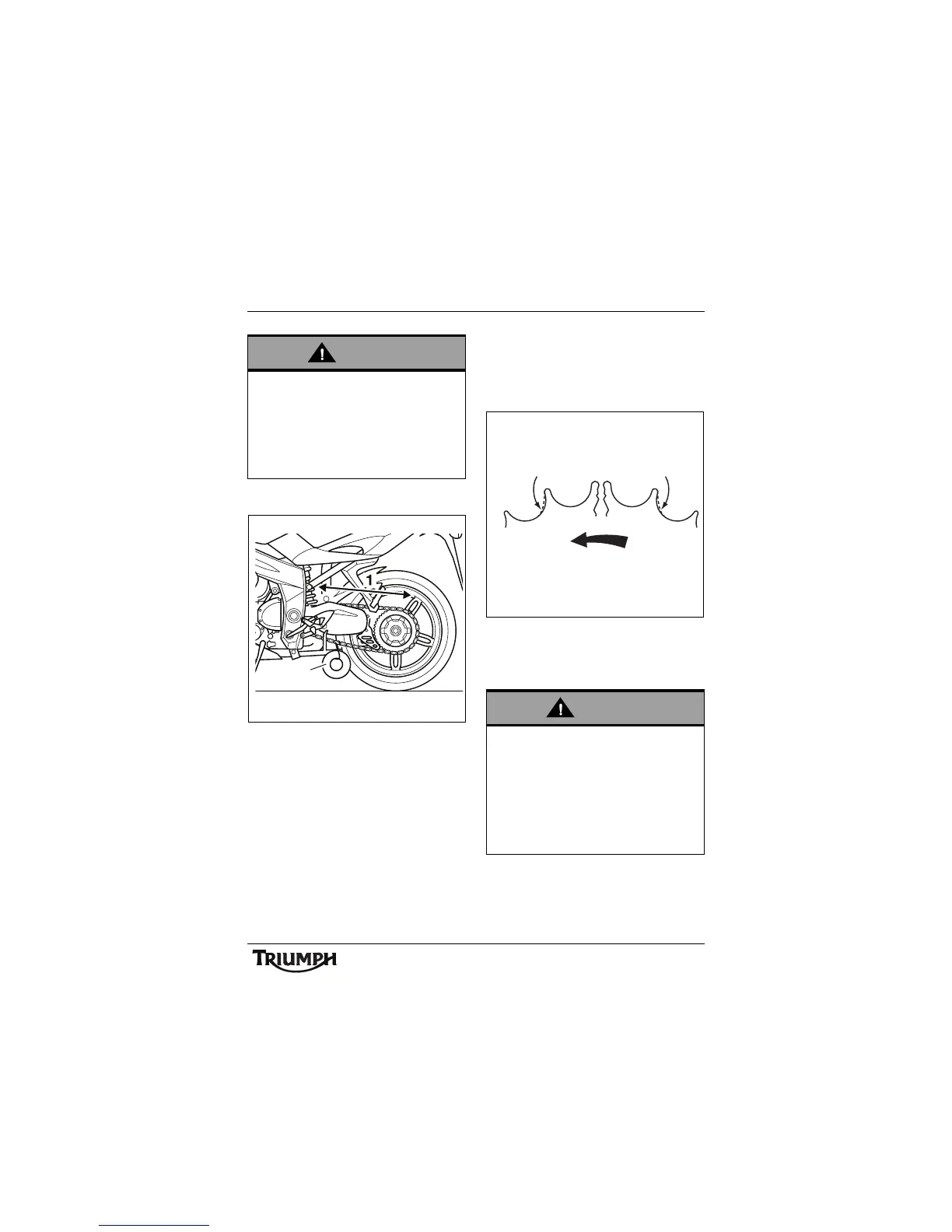

Chain and Sprocket Wear Inspection
1. Measure across 20 links
2. Weight
Remove the chain guards.
Stretch the chain taut by hanging a
10 - 20 kg weight on the chain.
Measure the length of 20 links on the
straight part of the chain from pin centre of
the 1
st
pin to the pin centre of the 21
st
pin.
Since the chain may wear unevenly, take
measurements in several places.
If the length exceeds the maximum service
limit of 321 mm, the chain must be replaced.
Rotate the rear wheel and inspect the drive
chain for damaged rollers, and loose pins and
links.
Also inspect the sprockets for unevenly or
excessively worn or damaged teeth.
If there is any irregularity, have the drive
chain and/or the sprockets replaced by an
authorised Triumph dealer.
Refit the chain guards.
Warning
It is dangerous to operate the motorcycle
with defective brakes; you must have your
authorised Triumph dealer take remedial
action before you attempt to ride the
motorcycle again. Failure to take remedial
action may reduce braking efficiency
leading to loss of control or an accident.
ccmw
2
Warning
The use of non-approved chains may result
in a broken chain or may cause the chain
to jump off the sprockets.
Use a genuine Triumph supplied chain as
specified in the Triumph parts catalogue.
Never neglect chain maintenance and
always have chains installed by an
authorised Triumph dealer.
7/2.4//4(
%.').%302/#+%4
7/2.4//4(
2%!2302/#+%4
3PROCKETWEAREXAGGERATED
FORILLUSTRATIVEPURPOSES
CCOL

Triumph 1050 Sprint Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050 cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Front Brakes	Twin 320mm floating discs, 4 piston calipers
Rear Brakes	Single 255mm disc, 2 piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Dry Weight	210 kg
Exhaust	Stainless steel 3 into 1 exhaust system
Ignition	Digital - inductive type
Frame	Aluminum beam perimeter
Front Suspension	43mm
Rear Suspension	Monoshock with adjustable preload
Rake/Trail	24 degrees
Dimensions	Length: 2, 115 mm, Width: 760 mm, Height: 1, 210 mm
