Triumph 1050 Sprint User Manual

80
Maintenance and Adjustment
Clutch

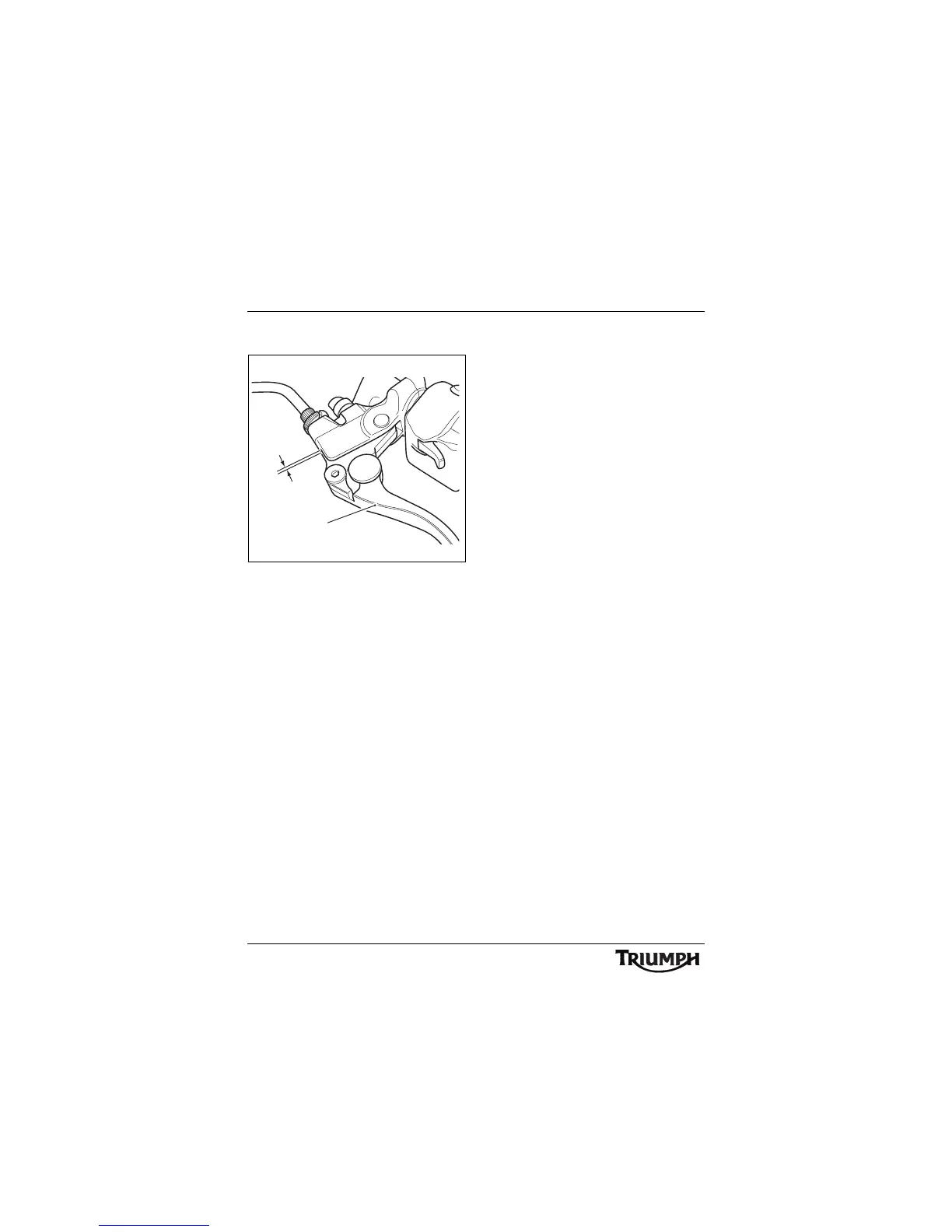

1. C l u t c h l e v e r
2. 2 - 3 mm
The motorcycle is equipped with a
cable-operated clutch.
If the clutch lever has excessive free play, the
clutch may not disengage fully. This will cause
difficulty in changing gear and selecting
neutral. This may cause the engine to stall
and make the motorcycle difficult to control.
Conversely, if the clutch lever has insufficient
free play the clutch may not engage fully,
causing the clutch to slip, which will reduce
performance and cause premature clutch
wear.
Clutch lever free play must be checked in
accordance with scheduled maintenance
requirements.
Inspection
Check that there is 2 - 3 mm clutch lever free
play at the lever.
If there is an incorrect amount of free play,
adjustments must be made.
Adjustment
Loosen the knurled locknut at the lever end
of the clutch cable and turn the adjuster
sleeve until the correct amount of clutch lever
free play is achieved.
Tighten the knurled locknut against the
clutch lever assembly.
If correct adjustment cannot be made using
the lever adjuster, use the cable adjuster at
the lower end of the cable.
Loosen the adjuster locknut.
Turn the outer cable adjuster to give
2 - 3 mm of free play at the clutch lever.
Tighten the locknut.
ccpe
2
1

Triumph 1050 Sprint Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050 cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Front Brakes	Twin 320mm floating discs, 4 piston calipers
Rear Brakes	Single 255mm disc, 2 piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Dry Weight	210 kg
Exhaust	Stainless steel 3 into 1 exhaust system
Ignition	Digital - inductive type
Frame	Aluminum beam perimeter
Front Suspension	43mm
Rear Suspension	Monoshock with adjustable preload
Rake/Trail	24 degrees
Dimensions	Length: 2, 115 mm, Width: 760 mm, Height: 1, 210 mm
