Triumph 1050 Sprint User Manual

39
General Information

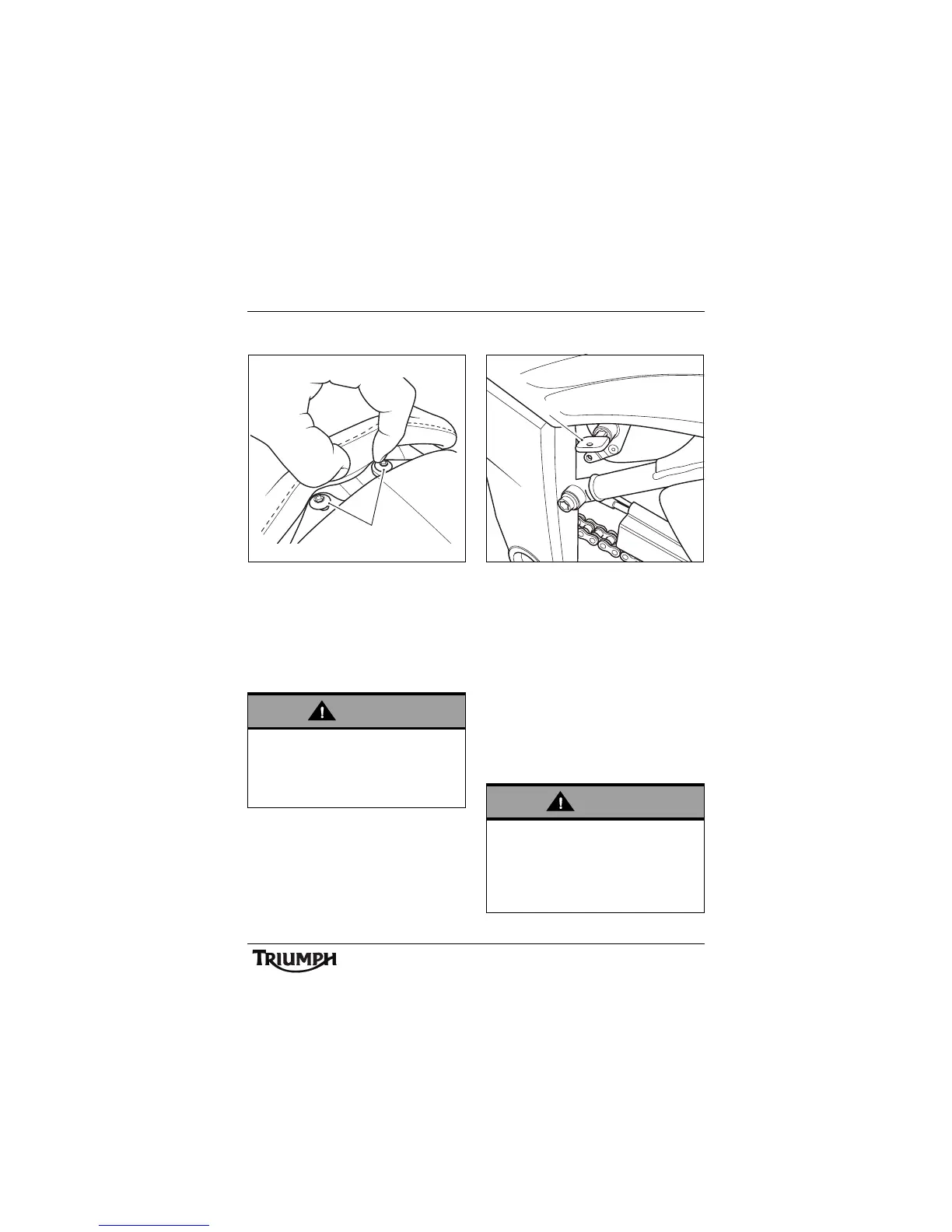

Seat - Sprint ST
1. Seat fasteners
Two seat fixings are located under the rear
edge of the seat. To remove the seat, push
back the rear edge of the seat and unscrew
the exposed fixings. Remove the fixings and
collect the two flanged washers. Raise the
seat and slide rearwards for complete
removal from the motorcycle.
To refit the seat, engage the seat's tongues
under the fuel tank and slide the seat
forwards to engage.
Refit the flanged washers and fixings.
Tighten the seat fixings to 3 Nm.
Seat - Sprint GT
1. S e a t l o c k
The seat lock is located on the left hand side
of the battery tray, in line with the footrest
mounting rail. To remove the seat, insert the
ignition key into the seat lock and turn it
anti-clockwise while pressing down on the
rear of the seat. This will release the seat from
its lock and allow it to be slid rearwards for
complete removal from the motorcycle.
To refit the seat, engage the seat's two front
hooks under the fuel tank, engage the centre
hooks under the rear subframe bridge and
slide the seat fully forwards. Press down at the
rear to engage in the seat lock.
Warning
The silencer heat shield is located directly
below the seat and may be hot to the
touch. Do not touch the heat shield as
contact with the hot heat shield may cause
the skin to become burned.
ccxg
1
Warning
To prevent detachment of the seat during
riding, after fitting always grasp the seat
and pull firmly upwards. If the seat is not
correctly secured, it will detach from the
lock. A loose or detached seat could cause
loss of motorcycle control and an accident.
cgdi
1

Triumph 1050 Sprint Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050 cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Front Brakes	Twin 320mm floating discs, 4 piston calipers
Rear Brakes	Single 255mm disc, 2 piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Dry Weight	210 kg
Exhaust	Stainless steel 3 into 1 exhaust system
Ignition	Digital - inductive type
Frame	Aluminum beam perimeter
Front Suspension	43mm
Rear Suspension	Monoshock with adjustable preload
Rake/Trail	24 degrees
Dimensions	Length: 2, 115 mm, Width: 760 mm, Height: 1, 210 mm
