Controls and Indicators
O
p
eration Manual Pa
g
e 5
C
ONTROLS
AND
I
NDICATORS
The operator shall know the location of each control and indicator and have a thorough knowledge of the
function and operation of each before attempting to operate the unit.

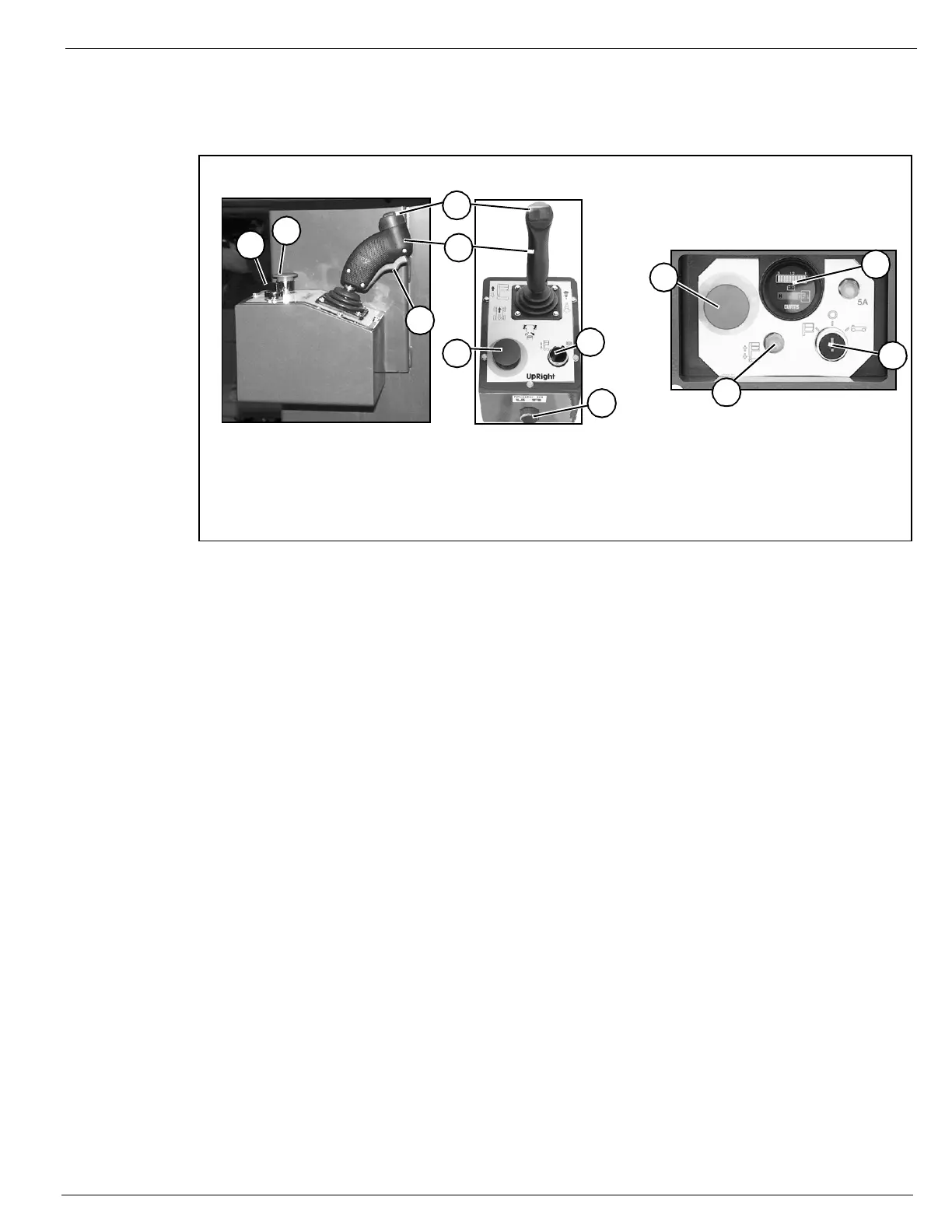

Figure 2: Controls and Indicators
P
RE
-O
PERATION
S
AFETY
I
NSPECTION
NOTE: Carefully read, understand and follow all safety rules, operating instructions, labels and National Safety
Instructions/Requirements. Perform the following steps each day before use.
1. Open the Chassis Door and inspect for damage, fluid leaks or missing parts.
2. Check the level of the hydraulic fluid with the platform fully lowered. Open the Chassis Door and remove
the reservoir cap, fluid should be visible on the dipstick. Add recommended hydraulic fluid if necessary.
See Specifications on page16.
3. Check that the fluid level in the batteries is correct. See Battery Maintenance on page 11.
4. Verify that the batteries are charged.
5. Check that the A.C. extension cord has been disconnected from the chassis outlet.
6. Check that all guardrails are in place and all fasteners are properly tightened.
7. Inspect the machine thoroughly for cracked welds and structural damage, loose or missing hardware,
hydraulic leaks, damaged control cable and loose wire connections.
Platform Controller
5
2
8
6
7
9
1
Chassis Controller (Right Side)
4
3
Side View
Top View
5
2
1. Interlock Switch
2. Platform Emergency Stop Switch
3. Control Lever
4. Steering Switch
5. Drive/Lift Switch
6. Chassis Emergency Stop Switch
7. Chassis Lift Switch
8. Chassis Key Switch
9. Hour Meter
10. Horn Button
10
