Parts Location Section 3 - Service & Repair
Pa
g
e 3-6 505115-000
3-4 P
ARTS
L
OCATION

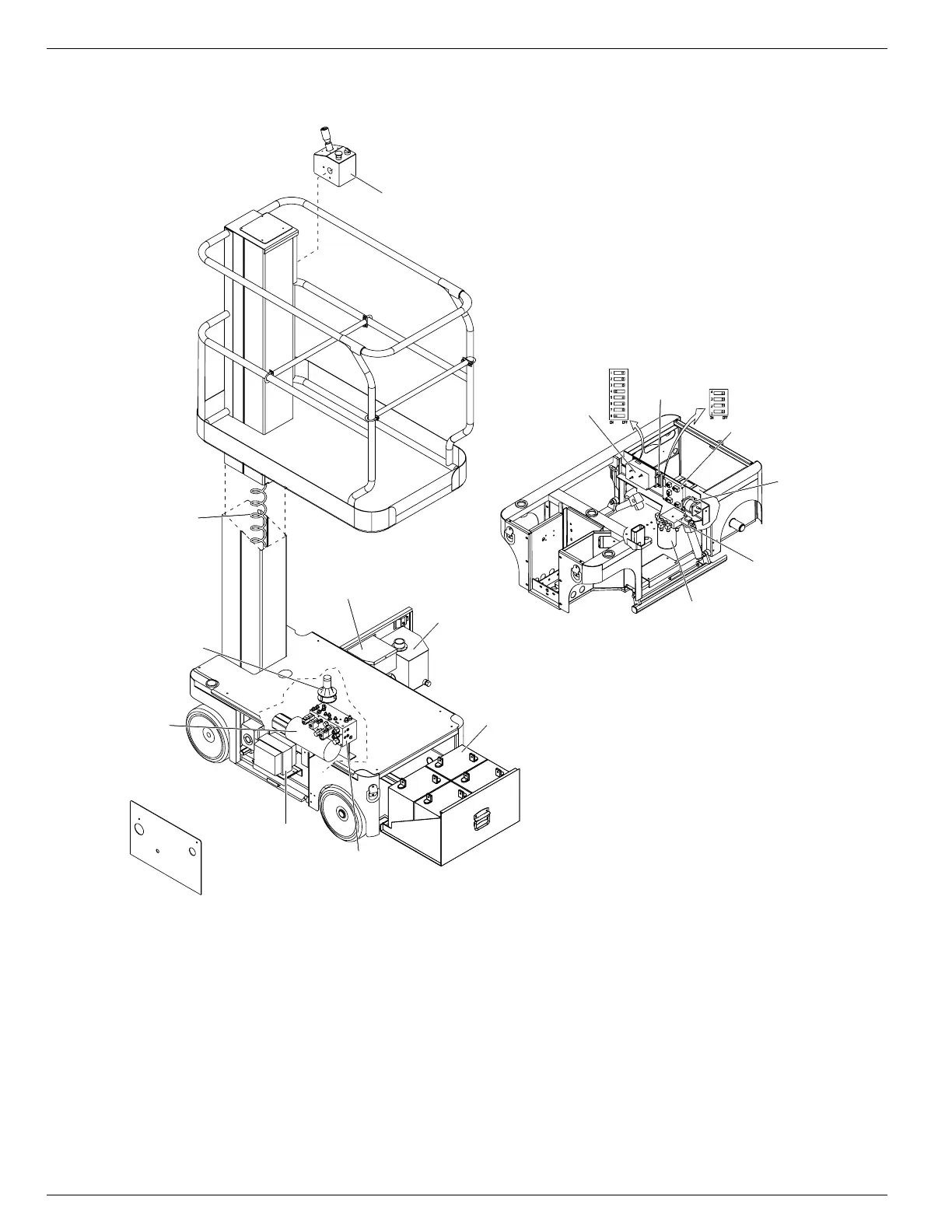

Figure 3-2: Parts Location
Electrical Box
Assembly
107123-000
Controller Assembly
505005-000
Hydraulic
Reservoir
Assembly
505013-000
Batteries
6 Volt
501074-000
Tilt Sensor
Assembly
058912-000
Battery Charger
069199-001
Control Valve
Assembly
101120-021
Power Unit
101230-000
Control Cable
Assembly
107009-000
Motor Control
065708-001
Dip Switch
Settings
Dip Switch
Settings
Fuse
058921-000
Circuit Board
065709-001
Relay
501656-000
Flow Control
Valve Assembly
505111-000
Hydraulic Oil
Filter
057375-000
