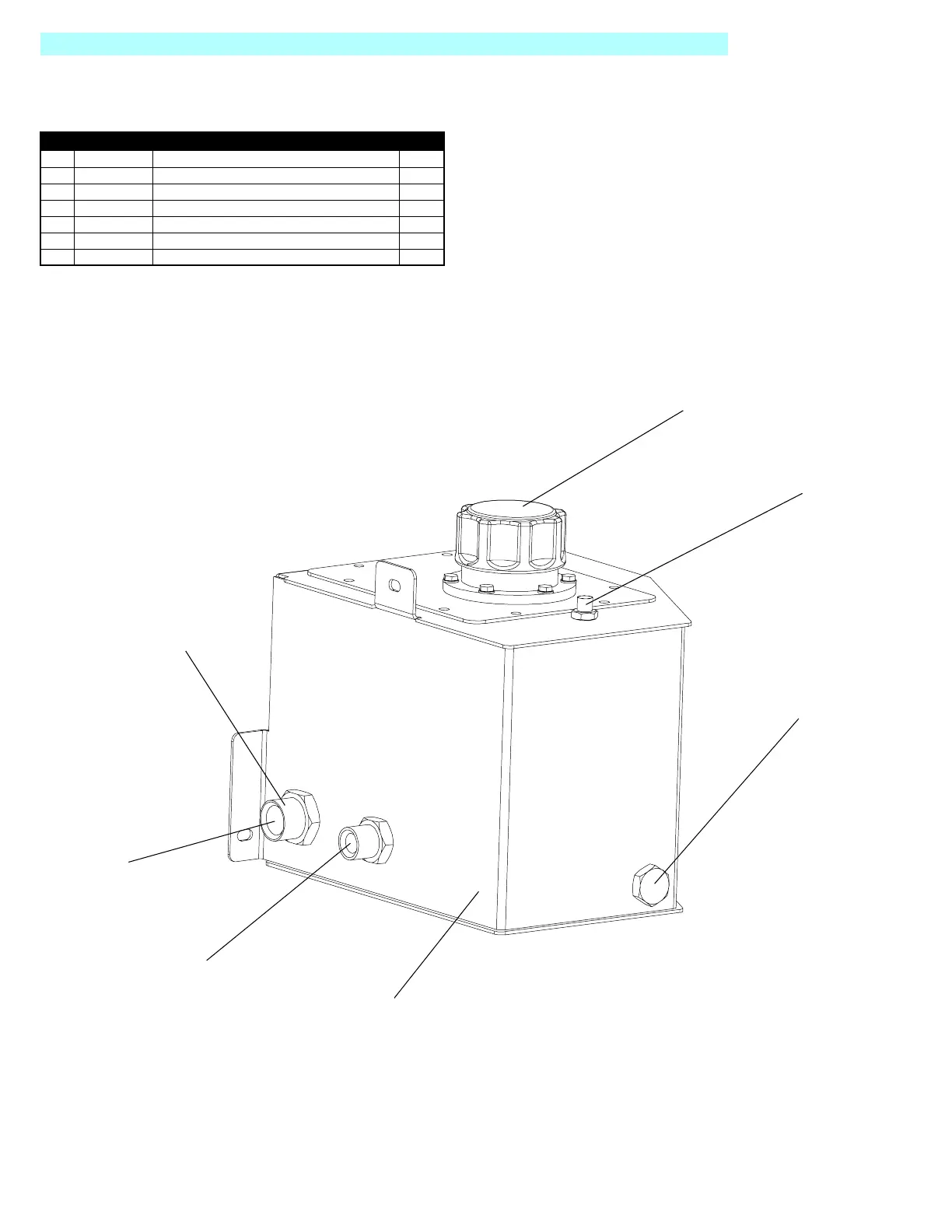

Illustrated Parts Breakdown - Hydraulic Tank Assembly
505115-000 TM12 PARTS MANUAL
Hydraulic Tank Assembly
505013-000
Item Part Description QTY.
1 057109-000 FILLER / BREATHER CAP 1
2 058359-000 SUCTION FILTER 1
3 503788-000 HYDRAULIC FITTING (3/4” M/M BSP) 1
4 503786-000 HYDRAULIC FITTING (1/2” M/M BSP 1
5 503784-000 HYDRAULIC FITTING (1/8” M/M BSP) 1
6 057108-000 DRAIN PLUG (3/8”)1
7 505016-000 TANK WELDMENT 1
1
2
(INSIDE)
3
4
5
6
7
