Upright TM 12 Series User Manual

Pa
g
e 6-17

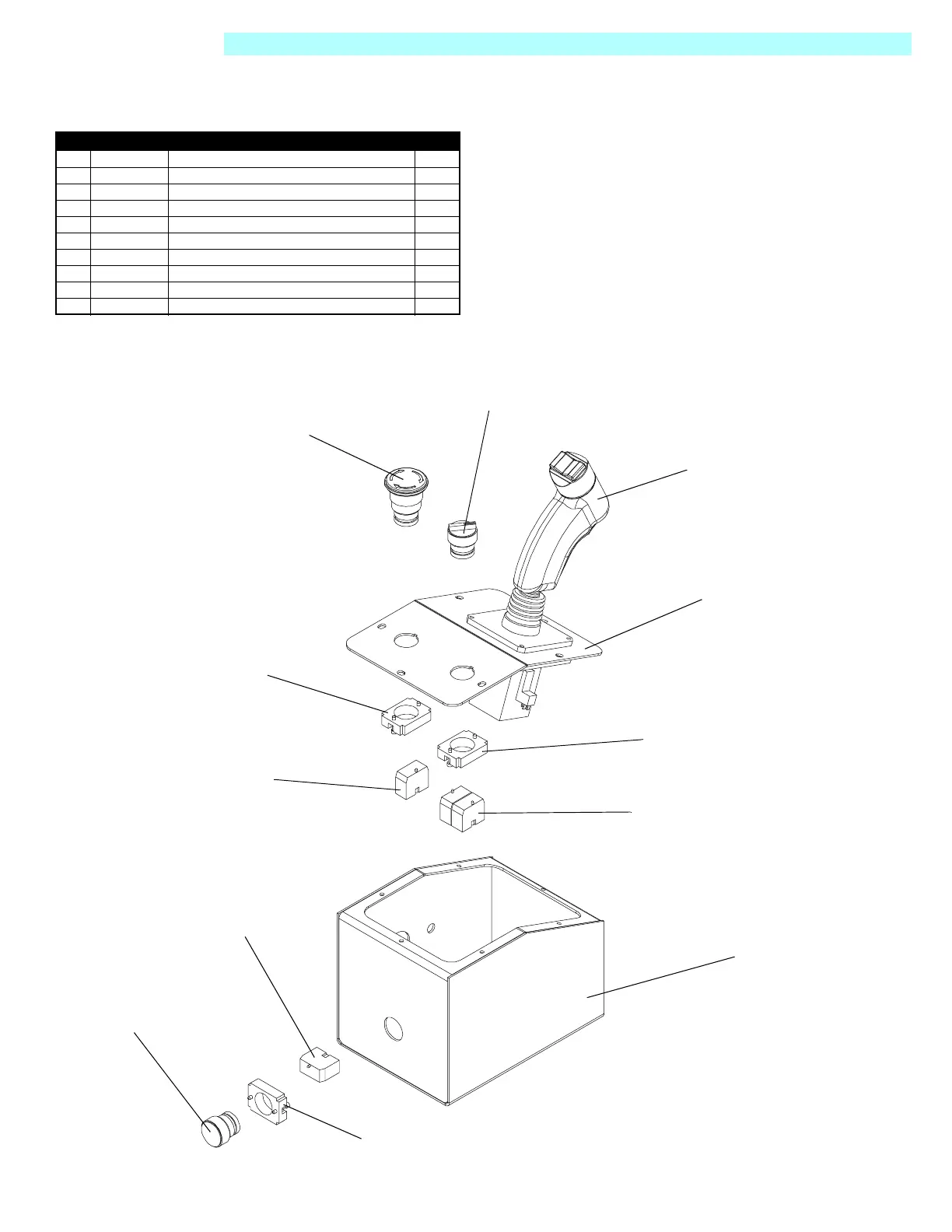

Illustrated Parts Breakdown - Upper Controls Assembly
505115-000 TM12 PARTS MANUAL
Upper Controls Assembly
505005-000
Item Part Description QTY.
1 113070-000 JOYSTICK 1
2 057309-000 EMERGENCY STOP SWITCH & MOUNT 1
--- -
4 058946-000 SWITCH BLOCK (N/C) 1
5 058807-000 2 POSITION SWITCH & MOUNT 1
6 502243-000 SWICTH BLOCK ( 2 POSITION SWITCH) 1
7 107159-000 UCB BOX WELDMENT 1
8 502242-000 HORN BUTTON & MOUNT 1
9 058947-000 SWITCH BLOCK (N/O) 1
10 505071-000 TOP PLATE (UCB BOX) 1
1
2
3
3
4
6
5
7
3
9
8
10
