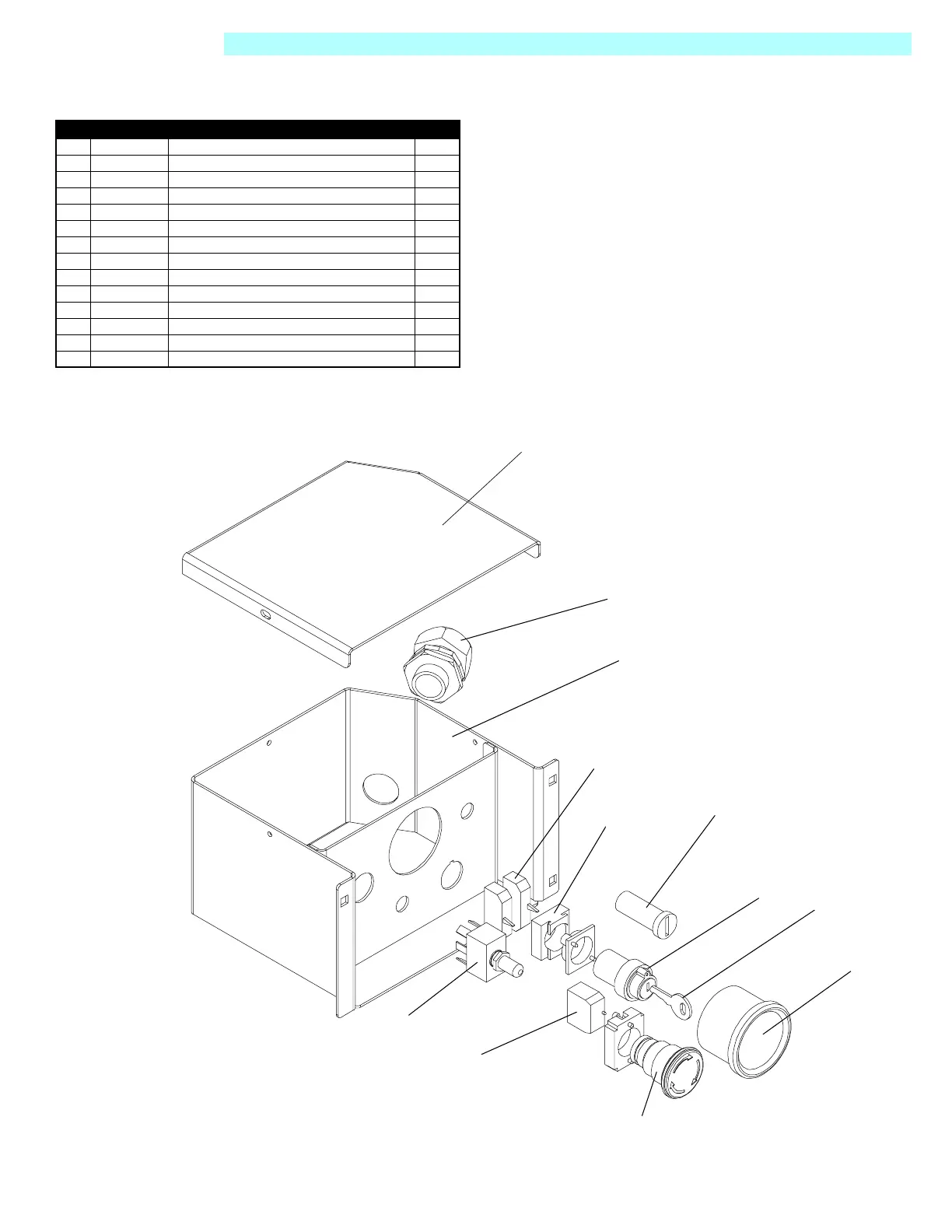

Illustrated Parts Breakdown - Lower Controls Assembly
505115-000 TM12 PARTS MANUAL
Lower Controls Assembly
505006-000
Item Part Description QTY.
1 505139-000 CABLE GLAND 1
2 107123-000 LCB BOX (WELDMENT) 1
3 505026-000 LID, LCB BOX 1
4 502245-000 FUSE CARRIER (7A FUSE) 1
5 502279-000 TOGGLE SWITCH 1
--- -
7 058947-000 SWITCH BLOCK (N/C) 1
8 057309-000 EMERGENCY STOP BUTTON & MOUNT 1
9 057310-000 KEY SWITCH & MOUNT 1
10 502246-000 MOUNT SWITCH BLOCK 1
11 057238-000 KEY 1
12 058946-000 SWITCH BLOCK (N/O) 2
--- -
14 501522-000 HOURMETER / BATTERY INDICATOR 1
1
2
3
4
5
7
8
9
11
14
12
10
