Upright TM 12 Series User Manual

Section 3 - Service & Repair Hydraulics
505115-000 Pa
g
e 3-11
C
YLINDER VALVE
A
SSEMBLY

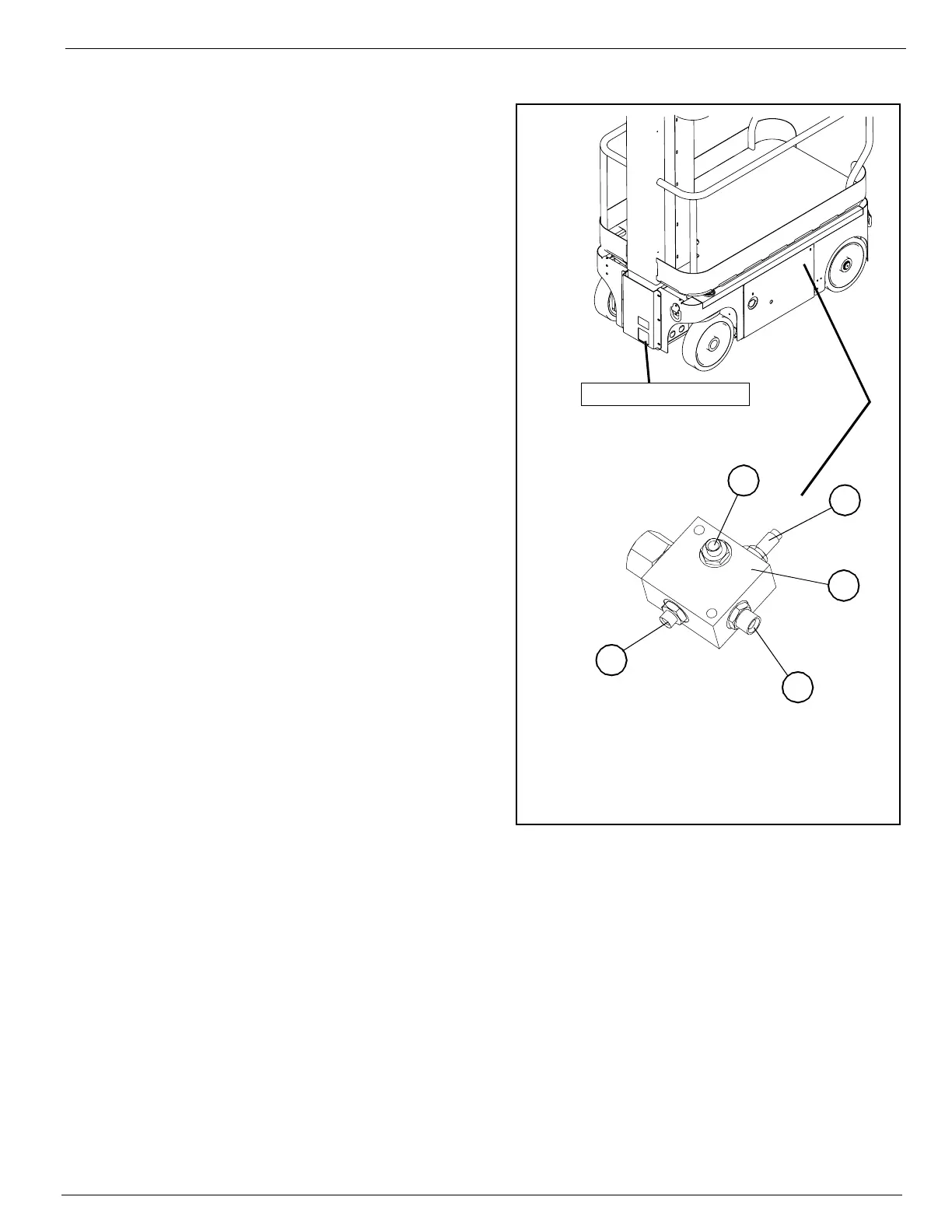

Figure 3-7: Cylinder Valve
E MERGENCY D OWN V ALVE
The Emergency Down Valve located at the front
of the machine. The valve is a 24 Volt DC sole-
noid mounted on the base of the cylinder.
F LOW C ONTROL V ALVE A SSEMBLY
The Cylinder Valve Block is located behind the
panel on the left side of the machine, toward the
rear.
3
4
5
2
1
1. Valve Block
2. Flow Control Valve
3. Fitting, 3/8 - 1/4 M/M
4. Fitting, 3/8 - 1/4 M/M
5. Fitting, 3/8 - 3/8 M/M
Front
Emergency Down Valve
