Upright TM 12 Series User Manual

Hydraulics Section 3 - Service & Repair
Pa
g
e 3-12 505115-000
M
AIN
H
YDRAULIC
M
ANIFOLD
Though it is not necessary to remove the manifold to perform all maintenance procedures, a determina-
tion should be made prior to beginning as to whether or not the manifold should be removed before main-
tenance procedures begin.

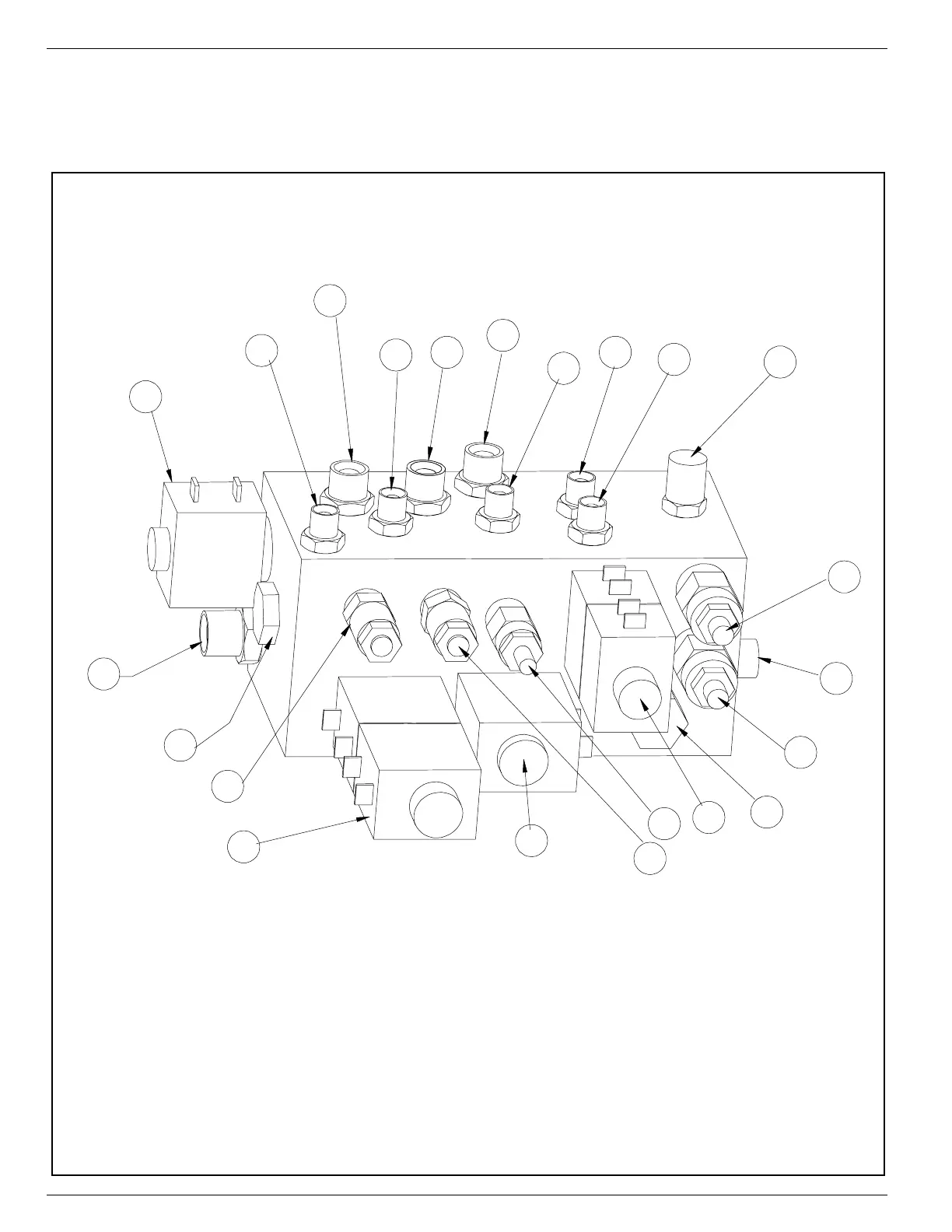

Figure 3-8: Hydraulic Manifold, Exploded View
1. TEST PORT (1/4”)
2. FITTING (1/4” - 1/4” MALE/MALE)
3. FITTING (1/4” - 1/4” MALE/MALE)
4. FITTING (1/4” - 1/4” MALE/MALE)
5. FITTING (3/8” - 3/8” MALE/MALE)
6. FITTING (3/8” - 3/8” MALE/MALE)
7. FITTING (1/4” - 1/4” MALE/MALE WITH 1mm OROFICE)
8. FITTING (3/8” - 3/8” MALE/MALE)
9. FITTING (1/4” - 1/4” MALE/MALE)
10. SOLENOID VALVE (POTHOLE)
11. FITTING (1/2” - 1/2” MALE/MALE)
12. CHECK VALVE (POTHOLE)
13. CROSS LINE RELIEF VALVE (DRIVE)
14. SOLENOID VALVE (DRIVE))
15. SOLENOID VALVE (DRIVE/LIFT)
16. CROSS LINE RELIEF VALVE (DRIVE)
17. PRESSURE RELIEF (MAIN LIFT)
18. SOLENOID VALVE (STEERING)
19. FLOW RESTRICTOR (STEERING)
20. RELIEF VALVE (STEERING)
21. FITTING (3/8” - 3/8” MALE/MALE)
22. RELIEF VALVE (MAIN)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
