2.6.3 Power and sensor connection (+24 VDC sensors)
[650 . . - . . T . - . . . . / 650 . . - . . U . - . . . . versions recommended]
2.6.3.1 Sensor power wiring via controller
Note:
• Use shielded sensor cable(s). Keep cable as short as possible, but locate it away from noise sources.

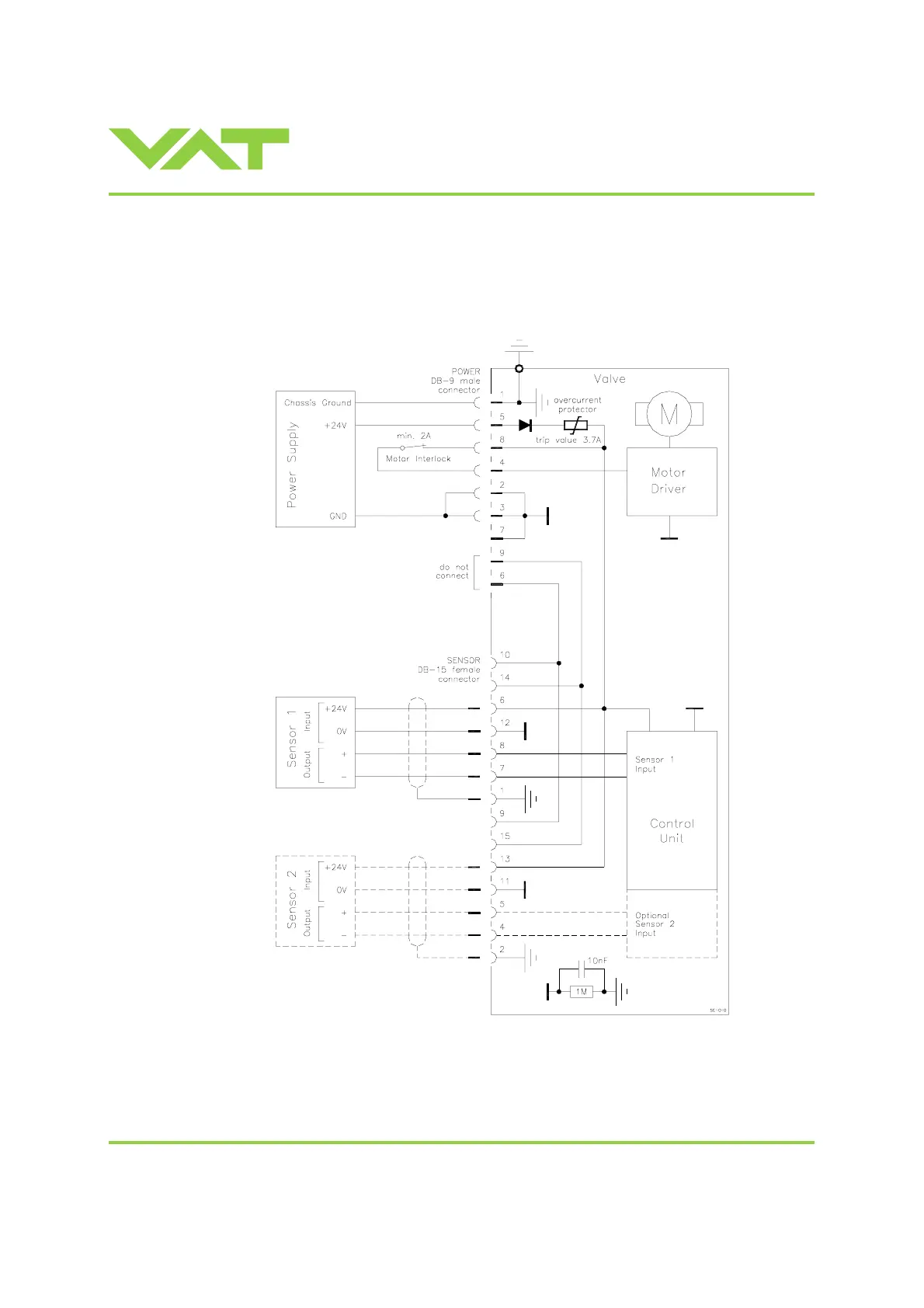

• Connect the +24 VDC sensors at DB–15 female sensor connector exactly as shown in the drawing above. Do not
connect other pins, that may damage power supply or controller!
• Connector: Use only screws with 4-40UNC thread for fastening the connectors!
Pins 4 and 8 must be bridged for operation!
An optional switch would allow for motor interlock
to prevent valve from moving.
Low range sensor may be connected
to sensor 1 or sensor 2 input.
Do configuration accordingly.
