VAT 650 Series User Manual

Installation, Operating & Maintenance Instructions
Series 650 DN 100-250 (I.D. 4“ - 10”), CC-Link
VAT Vakuumventile AG, CH-9469 Haag, Switzerland
Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com
280672EB
2010-12-15
56/94
3.11 CC-Link interface
3.11.1 Schematics
This interface allows for remote operation by means of a command set based on the CC-Link protocol.
In addition there is a digital input and a digital output. Digital input may only be operated by a switch.
Active digital input
has:
higher priority than CC-Link commands
higher priority than freeze mode

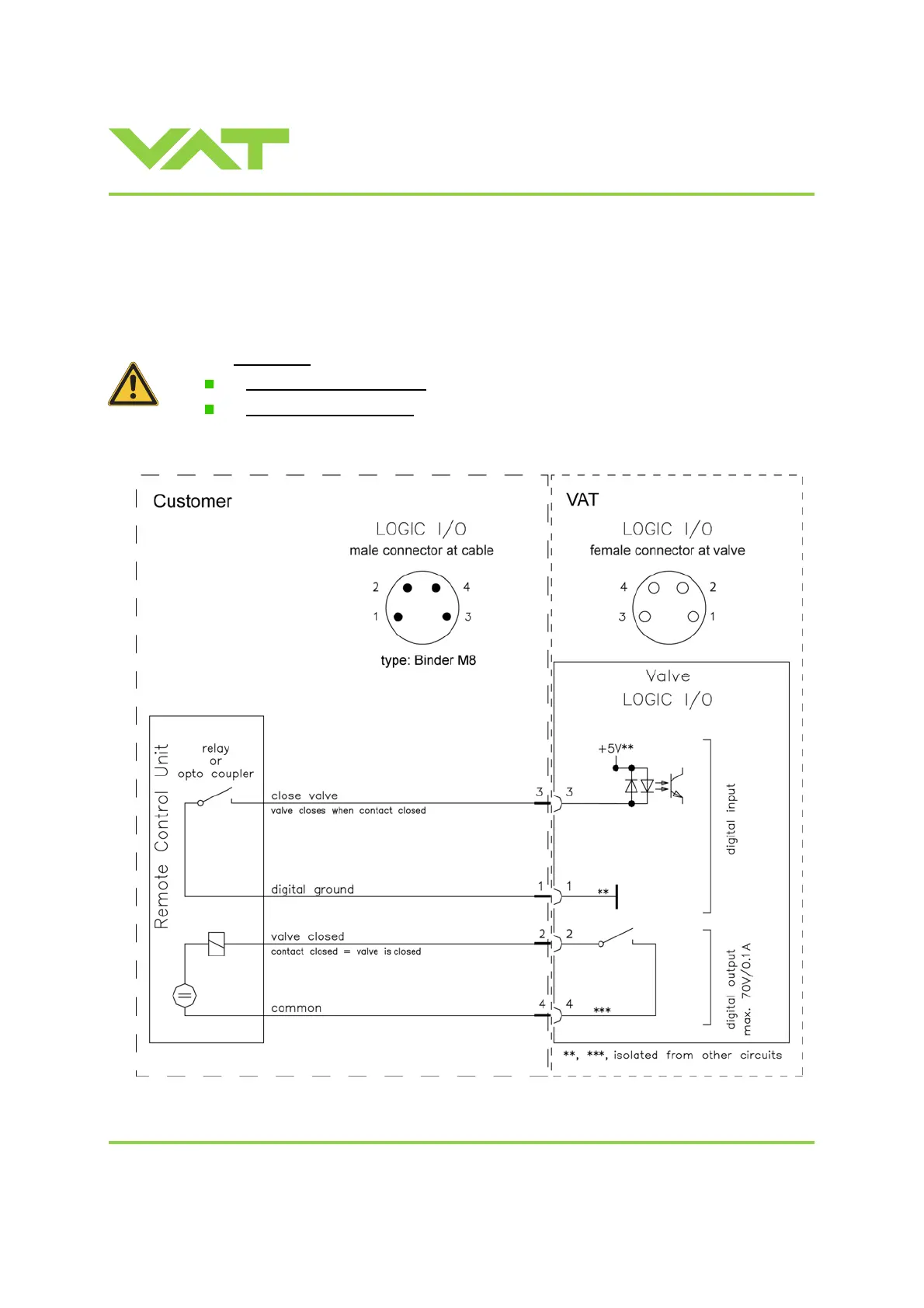

Configuration with switch for digital input:
Note: Do not connect other pins than indicated in the schematics above! Connector type: Binder M8 (99-3363-00-04).
