VAT 650 Series User Manual

Installation, Operating & Maintenance Instructions
Series 650 DN 100-250 (I.D. 4“ - 10”), CC-Link
VAT Vakuumventile AG, CH-9469 Haag, Switzerland
Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com
280672EB
2010-12-15
52/94

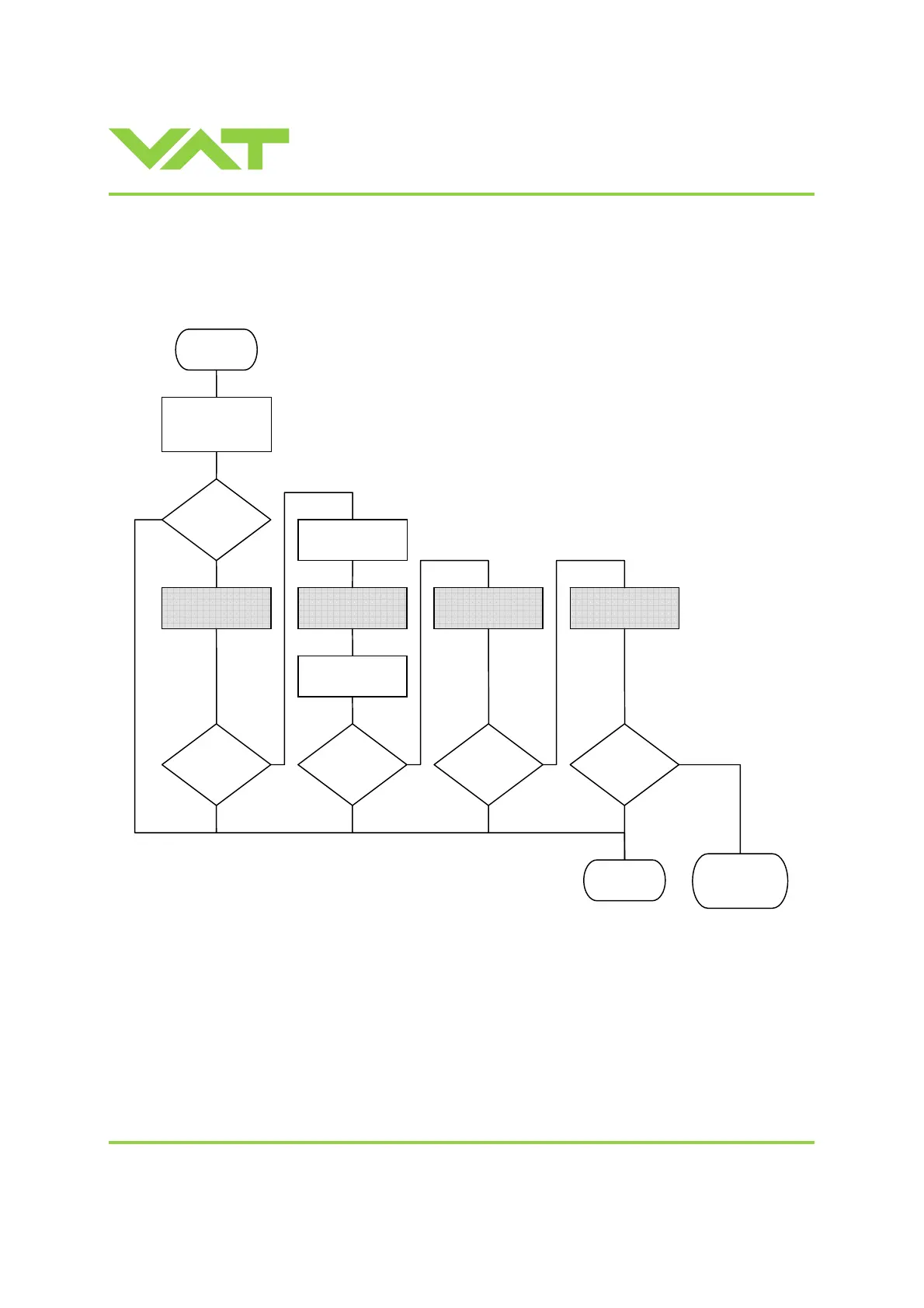

3.10.1 Tuning of control performance
Normally the default settings will result in good pressure control performance. For some applications tuning may be
required to improve performance.
The tuning procedures for each parameter (grey boxes) and its default values are described separately below. Strictly
keep the procedure order.
Required information for support:
• Go to ‘Tools / Create Diagnostic File’ in ‘Control View’ resp. ‘Control Performance Analyzer’ and save file
• Pressure / flow / gas conditions to be controlled
• Chamber volume
• Pumping speed (l/s) and pump type (e.g. turbo pump)
• System description
• Problem description
Send diagnostic file with and all required information to tuning-support@vat.ch
No
No
No
No
No
Gain factor
adjustment
Pressure
control
ok ?
Sensor delay
adjustment
Gain factor
adjustment
Setpoint ramp
adjustment
Valve speed
adjustment
Start
End
Pressure
control
ok ?
Pressure
control
ok ?
Pressure
control
ok ?
Contact
VAT
Pressure
control
ok ?
Reset gain
factor to 1.0
Set all
paramters to
default

VAT 650 Series Specifications

General

Supply voltage	24 VDC
Digital inputs	8
Digital outputs	8
Analog inputs	4
Analog outputs	2
Mounting	DIN rail
Output Voltage	24 VDC
Current Rating	2 A
Weight	0.5 kg
Communication interface	RS-485
Protocols	Modbus RTU
Protection	Short-circuit, overload
