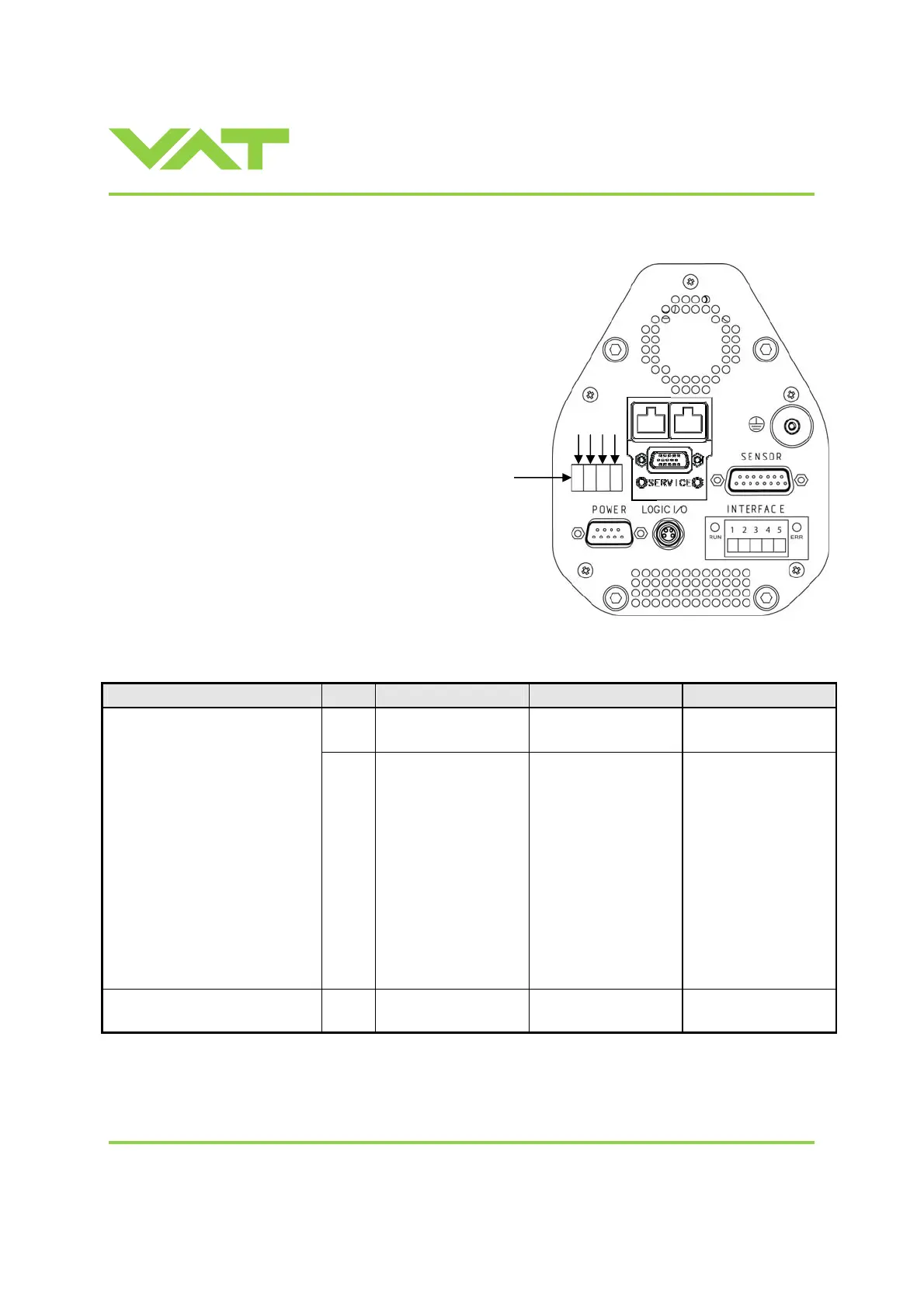

3.5 Display information
There is a 4 digit display located on the panel.
It displays configuration, status and position
information. For details refer to following
tables.
Power up:
Description Digit 1 Digit 2 Digit 3 Digit 4
1 E 0 0
At first all dots are illuminated
then configuration is displayed:
• Firmware version [e.g. 1E00]
(1
st
information for about 2s)
• Controller configuration
(2
nd
information for about 2s)
In case D C or D999 is displayed,
motor interlock is active. Refer to
«Safety mode» for details.
If valve is closed (isolated) display
shows alternately C C and INIT.
Synchronization will be done
when first movement command is
received.
A
= CC-Link
interface
0
= basic
1
= with SPS
1)
2
= with PFO
2)
3
= with SPS
1)
and PFO
2)
1
= 1 sensor version
2
= 2 sensor version
SYNC indicates that
synchronization is running.
S Y N C
1) SPS = optional ±15 VDC Sensor Power Supply module 2) PFO = optional Power Failure Option
Display
1 2 3 4
