Operation
3.30 Front window (up to serial no. AD06526)
Careful when opening the front window –
Crushing hazard.
☞ Stay clear (extremities, clothing) of the window run.
☞ Always pull the front window upward with both handles B.
☞ Always let levers A lock into place on either side in locks F.
Opening the front window
• Either side of the front window is fitted with a lever.
☞ Push levers A down on either side.
☞ Pull the front window upward with handles B.
➥ The front window must lock into rails C on either side.
☞ Lock with levers A on either side in C.
☞ Pull levers A to the rear to do this.
☞ Check whether both levers A are actually locked in rails C.
Lowering the front window
☞ Push levers A forward on either side.
☞ Pull the front window downward with handles B.
☞ Lock the front window again by means of levers A in lock F.
☞ Pull levers A upward to do this.
☞ Check whether both levers A are actually locked in rails F.

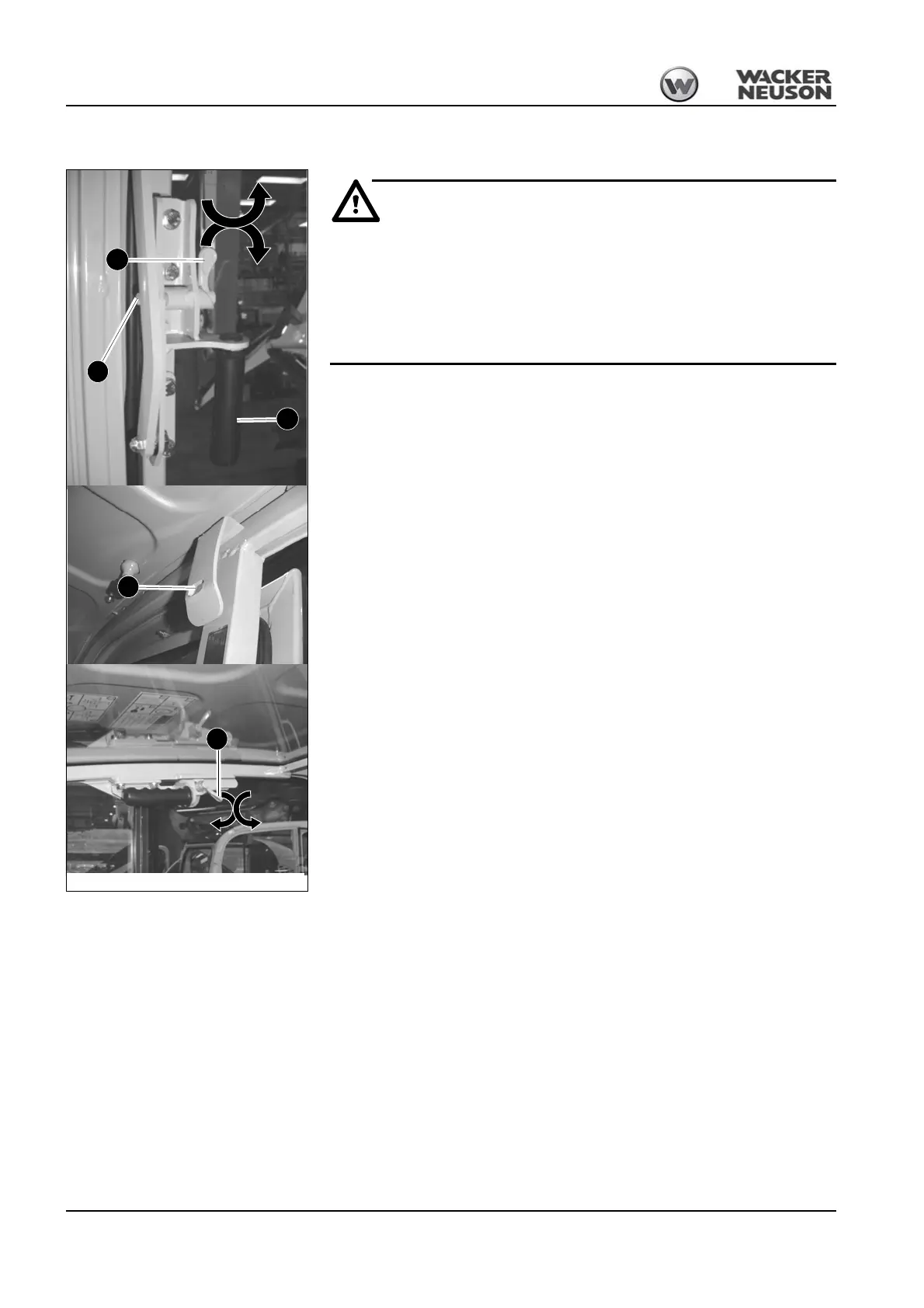

Fig. 111: Front window
A
B
C
A
F
