Operation
3.53 Control lever if equipped with 3rd control circuit (option): overview
Notice!
Fast actuation of the control lever for the attachment moves the attachment fast.
Slow actuation of the control lever moves the attachment slowly.
Left-hand control lever
Danger!
Unintentional operation of control lever fig. 166/3 when driving on public roads
–
Risk of accidents!
Notice!
Always perform smooth control movements.
Boom swivel controls (up to serial no. AH02781)
Swivelling the boom to the left:
☞ Press and hold button A on the control lever
☞ Move hammer pedal 2 forward at the same time
Swivelling the boom to the right:
☞ Press and hold button A on the control lever
☞ Move hammer pedal 2 backward at the same time

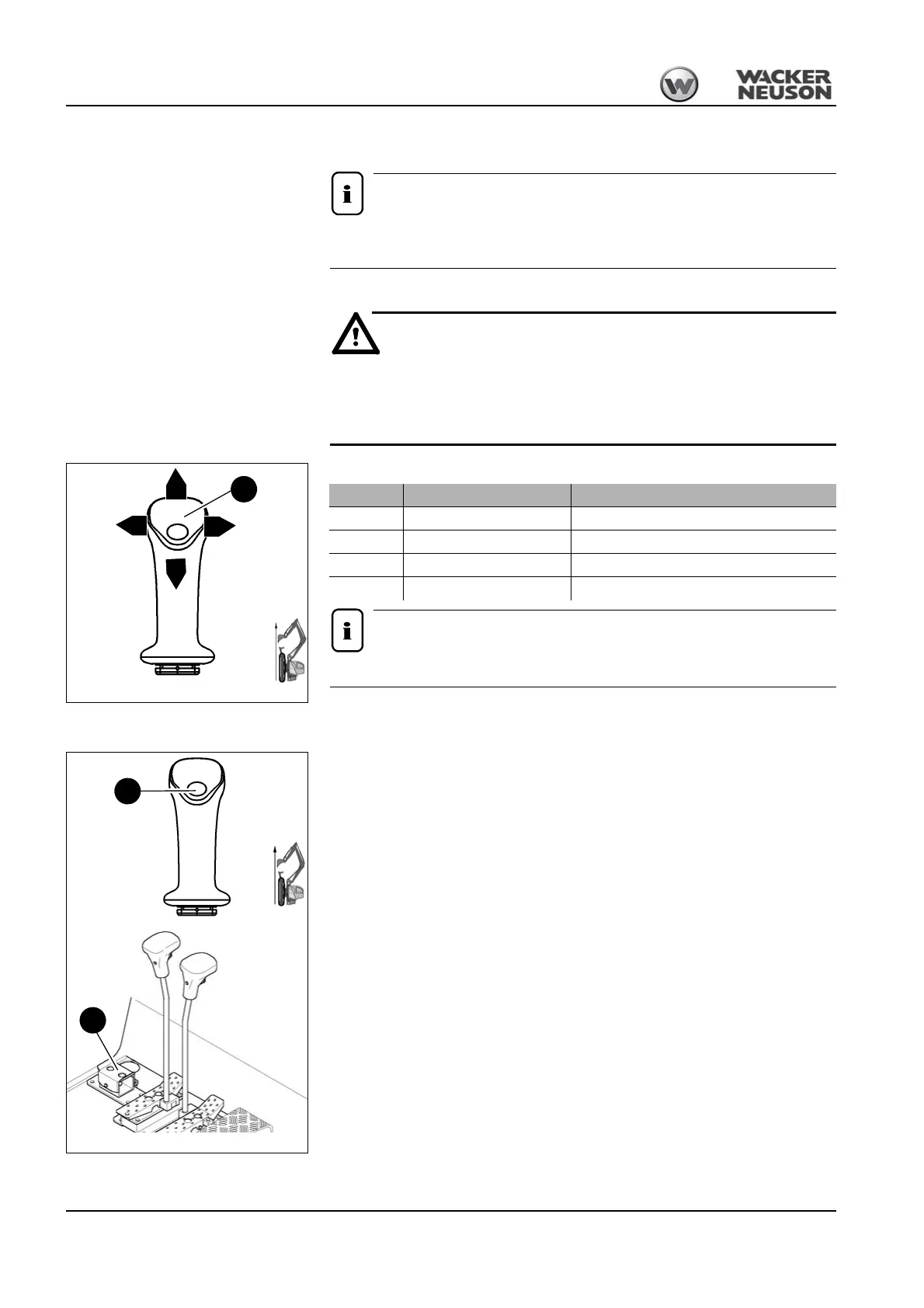

Fig. 191: Left-hand control lever
D
C
A
B
3
Position Lever Function
A
Forward Extends the stick
B
To the right Rotates the upper carriage to the right
C
Backward Retracts the stick
D
To the left Rotates the upper carriage to the left
Fig. 192: Swivel controls
A
2
