6.21 Lift capacity table 50Z3 counterweight (option)
All table indications in kg (lbs) and horizontal position on firm ground without bucket.
If equipped with a bucket or other attachments, lift capacity or tilt load is reduced by bucket
or attachment dead weight.
Calculation basis: according to ISO 10567
The machine’s lift capacity is restricted by the settings of the pressure limiting valves and
the hydraulic system’s stabilizing features.
Neither 75 % of the static tilt load nor 87 % of the hydraulic lift capacity is exceeded.
4.0 m (13'-1") 3.0 m (9'-10") 2.0 (78.7 in)
A
B
Lowered blade Lowered blade Lowered blade Lowered blade
4.0 m
(13'-1")
1060*
(2337*)
915
(2017)
3.0 m
(9'-10")
1025*
(2260*)
675
(1488)
1010*
(2227*)
910
(2006)
2.0 (78.7 in)
1045*
(2304*)
580
(1279)
1185*
(2612*)
865
(1907)
1580*
(3483*)
1345
(2965)
1.0 (39.4 in)
1090*
(2403*)
545
(1201)
1415*
(3119*)
805
(1775)
2225*
(4905*)
1185
(2612)
0.0 m
(0.0 in)
1145*
(2524*)
550
(1212)
1555*
(3428*)
760
(1675)
2435*
(5368*)
1115
(2458)
−1.0 m
(−39.4 in)
1210*
(2668*)
620
(1367)
1510*
(3329*)
745
(1642)
2290*
(5048*)
1110
(2448)
4070*
(8973*)
2155
(4751)
−2.0 m
(−78.7 in)
1255*
(2767*)
830
(1830)
1780*
(3924*)
1140
(2513)
3000*
(6614*)
2225
(4905)

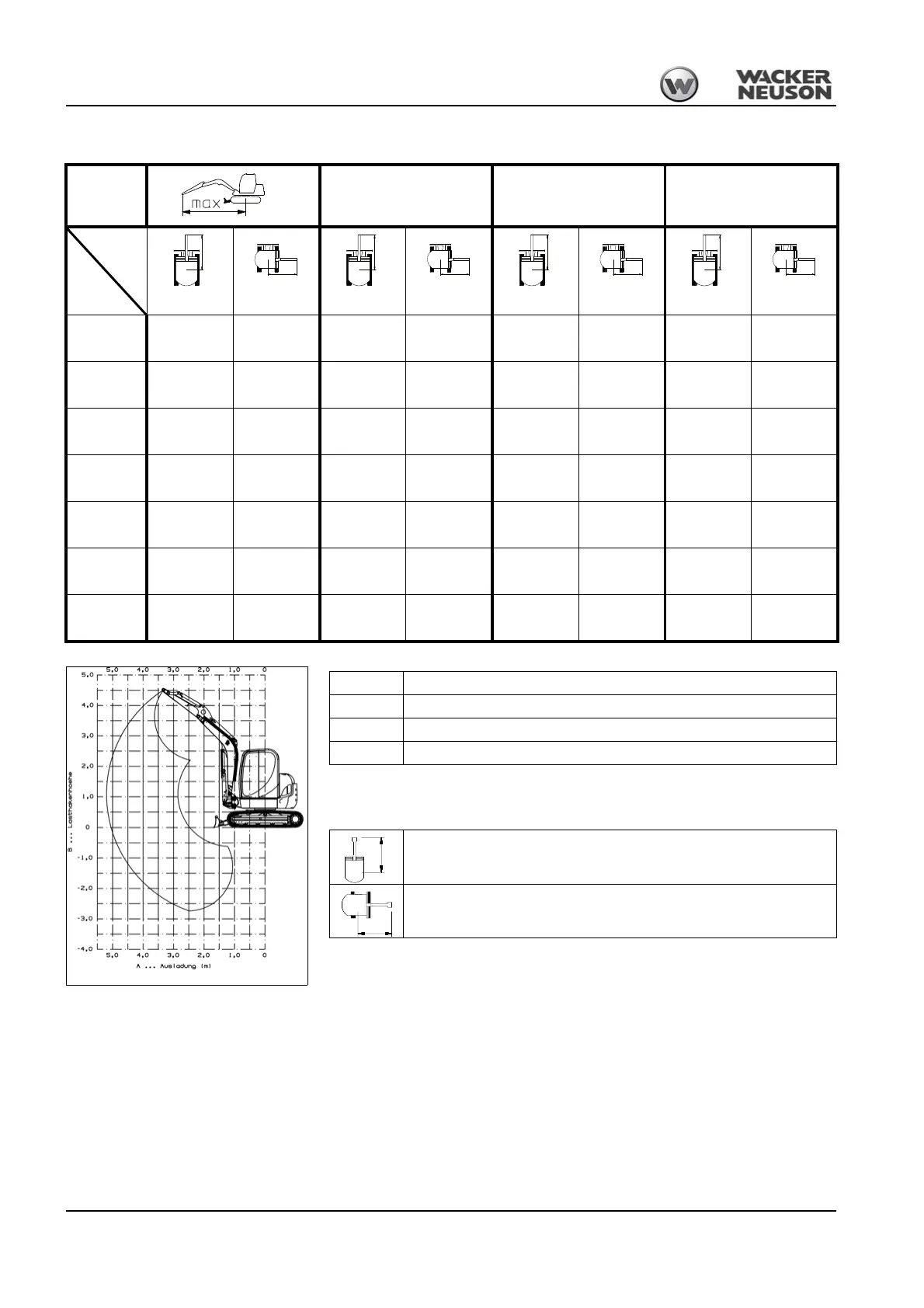

Fig. 334: Lift capacity table (model 50Z3)
max Admissible load on extended stick
A Reach from live ring centre
B Load hook height
* Lift capacity limited by hydraulic system
With the stabilizer blade in driving direction
Without the stabilizer blade, 90° to driving direction
