Specifications
6.22 Lift capacity table 50Z3 long stick (option)
All table indications in kg (lbs) and horizontal position on firm ground without bucket.
If equipped with a bucket or other attachments, lift capacity or tilt load is reduced by bucket
or attachment dead weight.
Calculation basis: according to ISO 10567
The machine’s lift capacity is restricted by the settings of the pressure limiting valves and
the hydraulic system’s stabilizing features.
Neither 75 % of the static tilt load nor 87 % of the hydraulic lift capacity is exceeded.
4.0 m (13'-1") 3.0 m (9'-10") 2.0 (78.7 in)
A
B
Lowered blade Lowered blade Lowered blade Lowered blade
4.0 m
(13'-1")
920*
(2028*)
660
(1455)
855*
(1885*)
785
(1731)
3.0 m
(9'-10")
915*
(2017*)
500
(1102)
865*
(1907*)
780
(1720)
2.0 (78.7 in)
935*
(2062*)
425
(937)
1050*
(2315*)
730
(1610)
1315*
(2900*)
1170
(2580)
1.0 (39.4 in)
970*
(2139*)
395
(871)
1310*
(2889*)
665
(1466)
2025*
(4465*)
1010
(2227)
0.0 m
(0.0 in)
1015*
(2238*)
400
(882)
1495*
(3297*)
610
(1345)
2385*
(5259*)
915
(2018)
−1.0 m
(−39.4 in)
1065*
(2348*)
440
(970)
1515*
(3341*)
590
(1301)
2350*
(5182*)
890
(1962)
4570*
(10077*)
1750
(3859)
−2.0 m
(−78.7 in)
1110*
(2448*)
565
(1246)
1250*
(2756*)
600
(1323)
1970*
(4344*)
910
(2007)
3590*
(7916*)
1805
(3980)

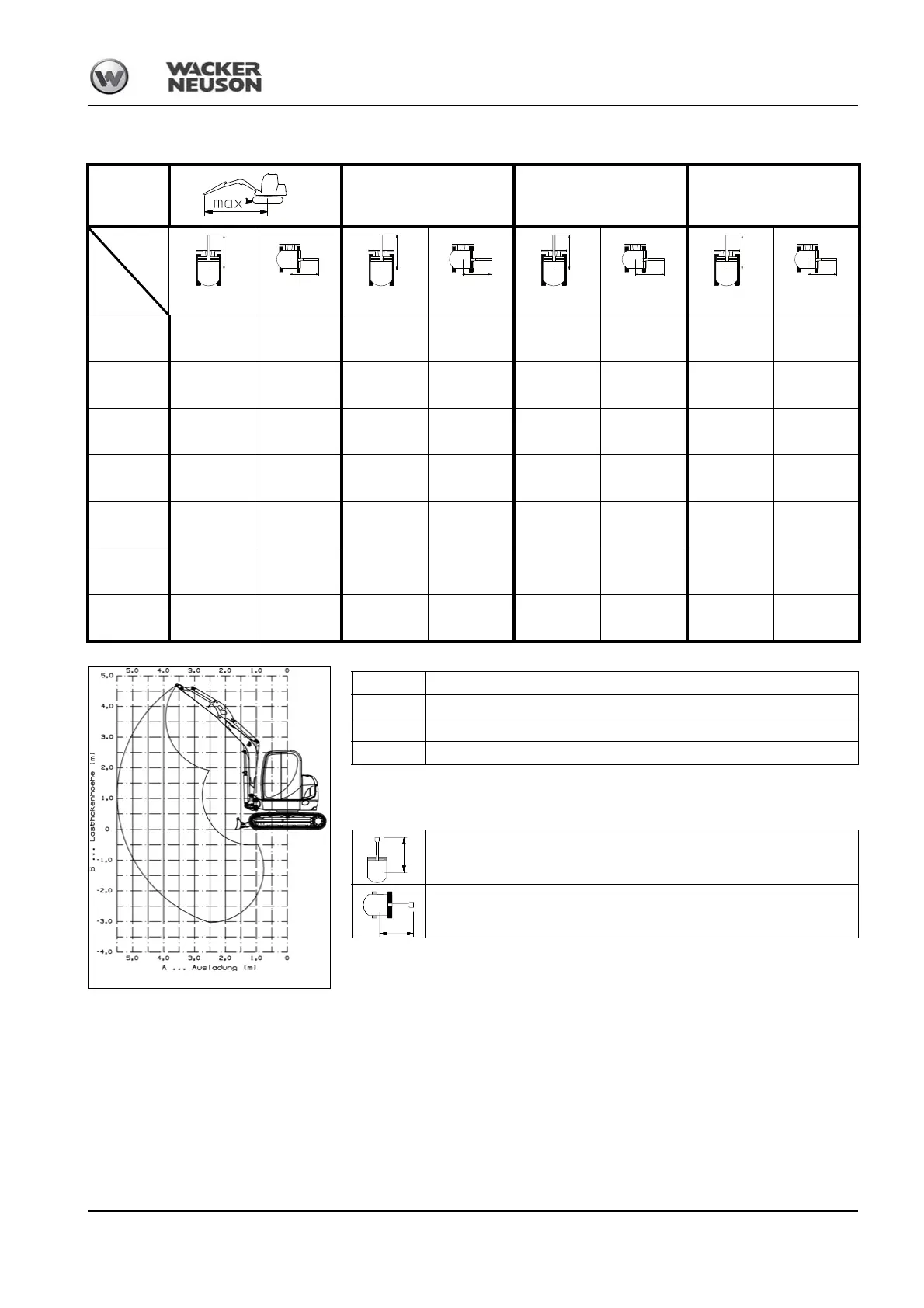

Fig. 335: Lift capacity table (model 50Z3)
max Admissible load on extended stick
A Reach from live ring centre
B Load hook height
* Lift capacity limited by hydraulic system
With the stabilizer blade in driving direction
Without the stabilizer blade, 90° to driving direction
