Operation
Operation (up to serial no. AH02781)
Tilting the upper carriage:
☞ Press and hold button 56.
☞ Press control lever 4 to the right.
➥ The upper carriage is tilted.
☞ If the required tilt angle is reached, return control lever 4 to the neutral position and
release button 56.
Lowering the upper carriage:
☞ Press and hold button 56.
☞ Push control lever 4 to the left.
➥ The upper carriage is lowered.
☞ If the required tilt angle is reached, return control lever 4 to the neutral position and
release button 56.
Operation (from serial no. AJ02777)
Tilting the upper carriage:
☞ Press and hold switch 56 backward.
☞ Press control lever 4 to the right.
➥ The upper carriage is tilted.
☞ If the required tilt angle is reached, return control lever 4 to the neutral position and
release button 56.
Lowering the upper carriage:
☞ Press and hold switch 56 backward.
☞ Push control lever 4 to the left.
➥ The upper carriage is lowered.
☞ If the required tilt angle is reached, return control lever 4 to the neutral position and
release button 56.

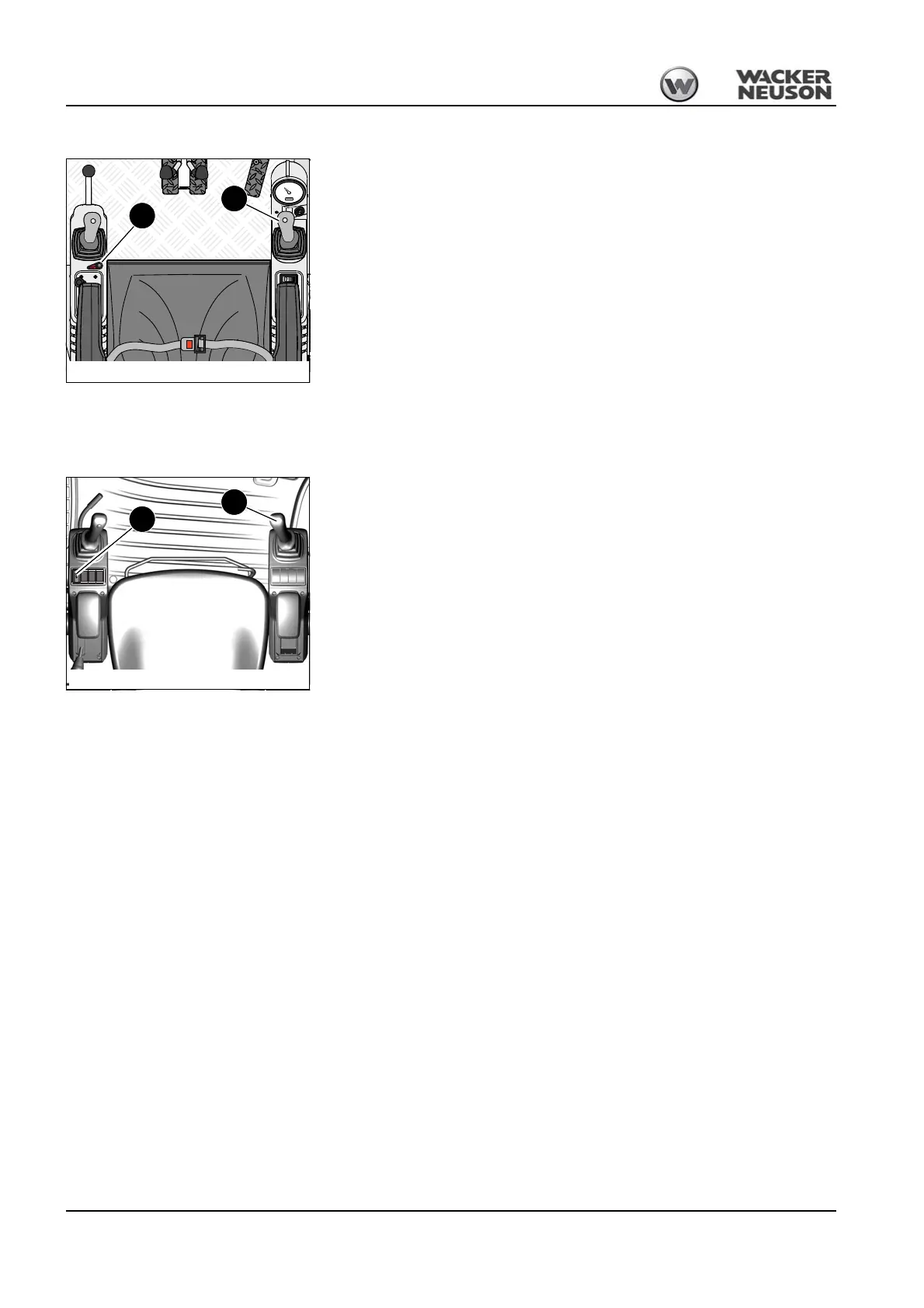

Fig. 199: Tilting the upper carriage (up to serial no. AH02781)
4
56
Fig. 200: Tilting the upper carriage (from serial no. AJ02777)
4
56
