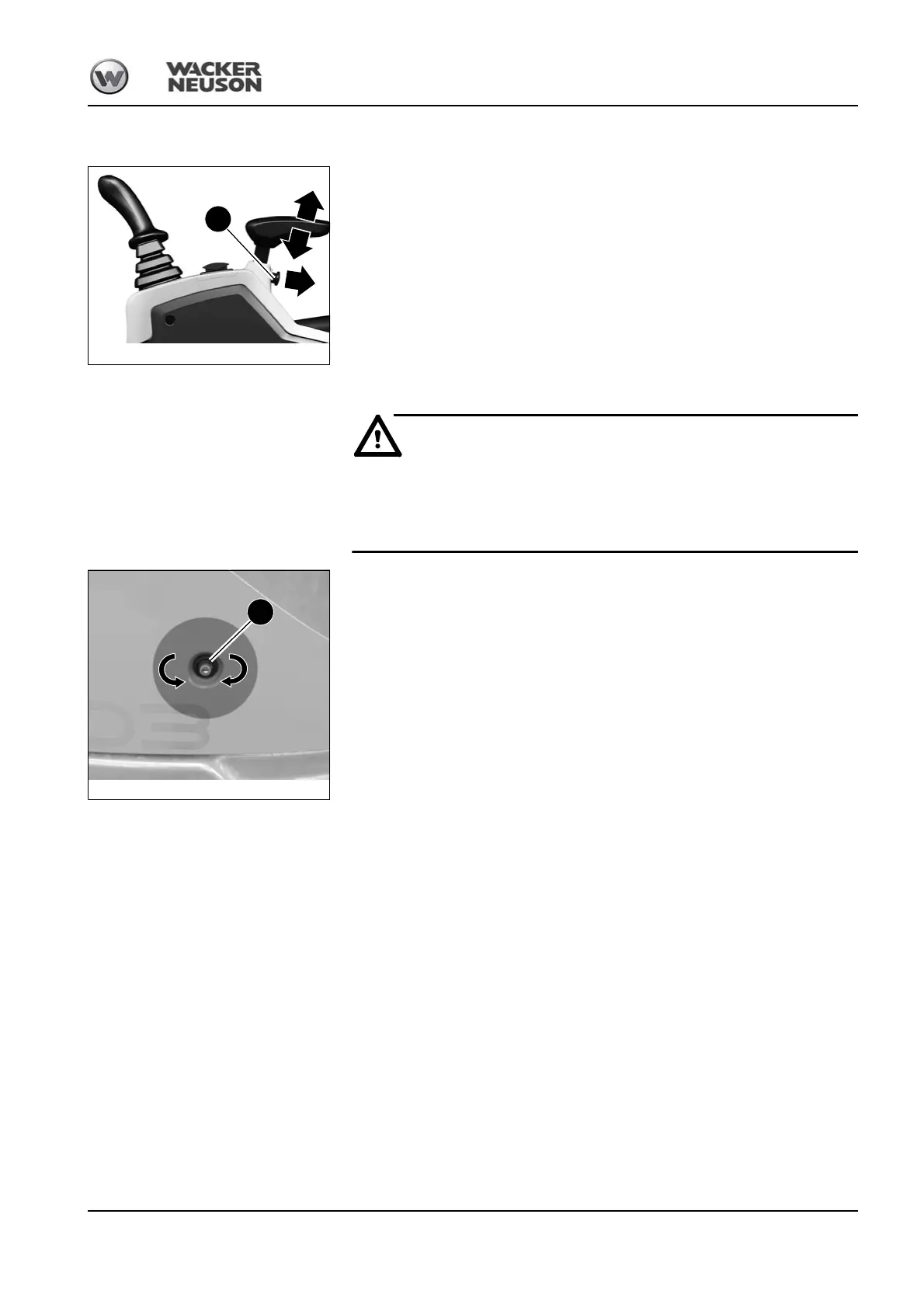

3.38 Armrest adjustment (from serial no. AJ02777)
☞ Slacken lock pin A.
➥ Hold the armrest (it is pre-tensioned by a spring).
☞ Pull out lock pin A and let the armrest engage in the required position.
☞ Tighten lock pin A.
3.39 Engine cover
Open the engine cover only at engine standstill.
Rotating and moving parts – risk of injury.
☞ Ensure that no-one is injured by the open engine cover.
Opening:
☞ Press lock A.
☞ Pull the engine cover upward.
Closing:
☞ Firmly press down the engine cover until lock A engages with an audible click.
Locking and unlocking:
Lock the engine cover with the ignition key of the preheating start switch.
☞ Turn the ignition key in lock A to the left (L).
➥ Engine cover locked.
☞ Turn the ignition key in lock A to the right (R).
➥ Engine cover unlocked.
Fig. 143: Engine cover lock
L
R
A
