Wacker Neuson 50Z3 User Manual

BA 50Z3/6003 en – Edition 4.3 * 5003b610.fm 6-5
Specifications

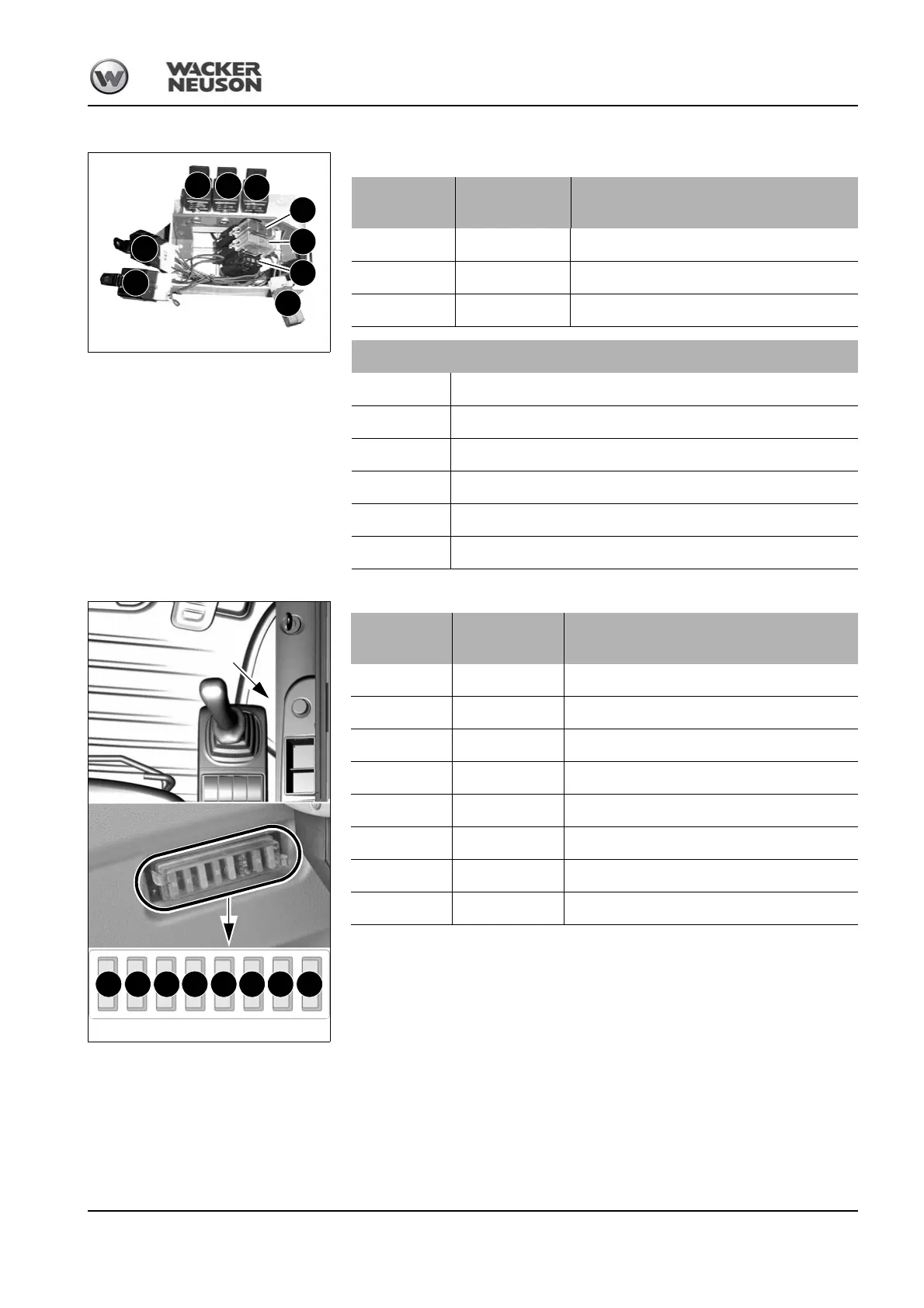

Main fuse box with relays
The main fuse box is located under the cab at the front right.
.
Fuse box on instrument panel (from serial no. AJ02777)
Fig. 330: Relay box under the cab
K2
K5
K7
F2
F1
F11
V1
K1
K42
Fuse no.
Rated current
(A)
Protected circuit
F1 40 A Start, preheat
F2 50 A Fuel-filling pump, main fuse, ignition lock
F11 10 A E-ECU, engine relays
Relay no.
K1 Engine electronics main relay
K2 Fuel-filling pump relay
K5 Preheating high-current relay
K7 Start high-current relay
K42 Fuel injection pump relay
V1 Blocking diode
Fig. 331: Fuse box
F3 F4 F5 F6 F7 F8 F9 F10
Fuse no.
Rated current
(A)
Protected circuit
F3 10 A Displays, E-ECU
F4 10 A Boom working light
F5 15 A Cab working light
F6 10 A Valves, horn
F7 15 A Heating, air conditioning
F8 10 A Wiper, interior light
F9 10 A Rotating beacon, radio
F10 15 A Socket, cigarette lighter
