Wacker Neuson 50Z3 User Manual

3-90 BA 50Z3/6003 en – Edition 4.3 * * 5003b340.fm
Operation
Left-hand control lever
Danger!
Unintentional control lever operation –
Risk of accidents.
☞ Always perform smooth control movements.
Notice!
Always perform smooth control movements.
Changeover between auxiliary hydraulics and boom swivel
Starting the machine automatically switches on the auxiliary hydraulics.
Switching on boom swivel
☞ Press button A on the control lever.
Switching on auxiliary hydraulics
☞ Release button A on the control lever.
Switching the status indicator on/off for auxiliary hydraulics/boom swivel
Boom swivel switched on
☞ Indicator light 2 in status indicator 52 illuminates permanently.
➥ Auxiliary hydraulics is switched off and the boom can be swivelled.
Auxiliary hydraulics switched on
☞ Indicator light 2 in status indicator 52 is not lit.
➥ The boom cannot be swivelled and the auxiliary hydraulics is now operational.

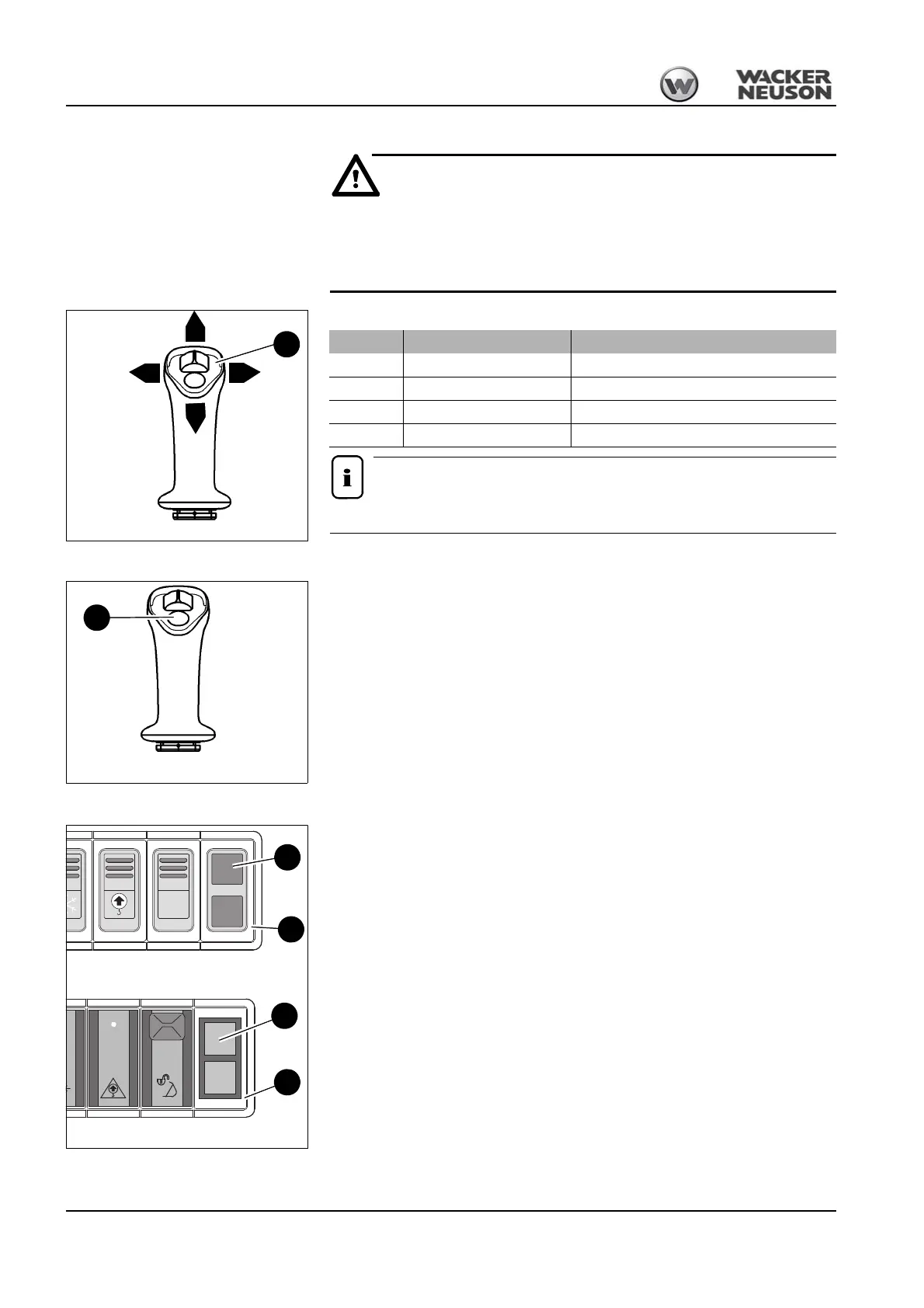

Fig. 181: Left-hand control lever
D
C
A
B
3
Position Lever Function
A
Forward Extends the stick
B
To the right Rotates the upper carriage to the right
C
Backward Retracts the stick
D
To the left Rotates the upper carriage to the left
Fig. 182: Changeover between auxiliary hydraulics and
boom swivel
A
Fig. 183: Characteristic curves – status indicator (up to
serial no. AH02781)
52
2
Fig. 183: Characteristic curves – status indicator (from
serial no. AJ02777)
52
2
