BA 50Z3/6003 en – Edition 4.3 * 5003b610.fm 6-3

Specifications

6.7 Electrical system, model 50Z3

Fuse box in instrument panel

Main fuse box with relays underneath the cab

Electrical system

Alternator 12 V 55 A

Starter 12 V 2.3 kW

Battery 12 V 88 Ah

Socket For cigarette lighter, for example; 15 A max.

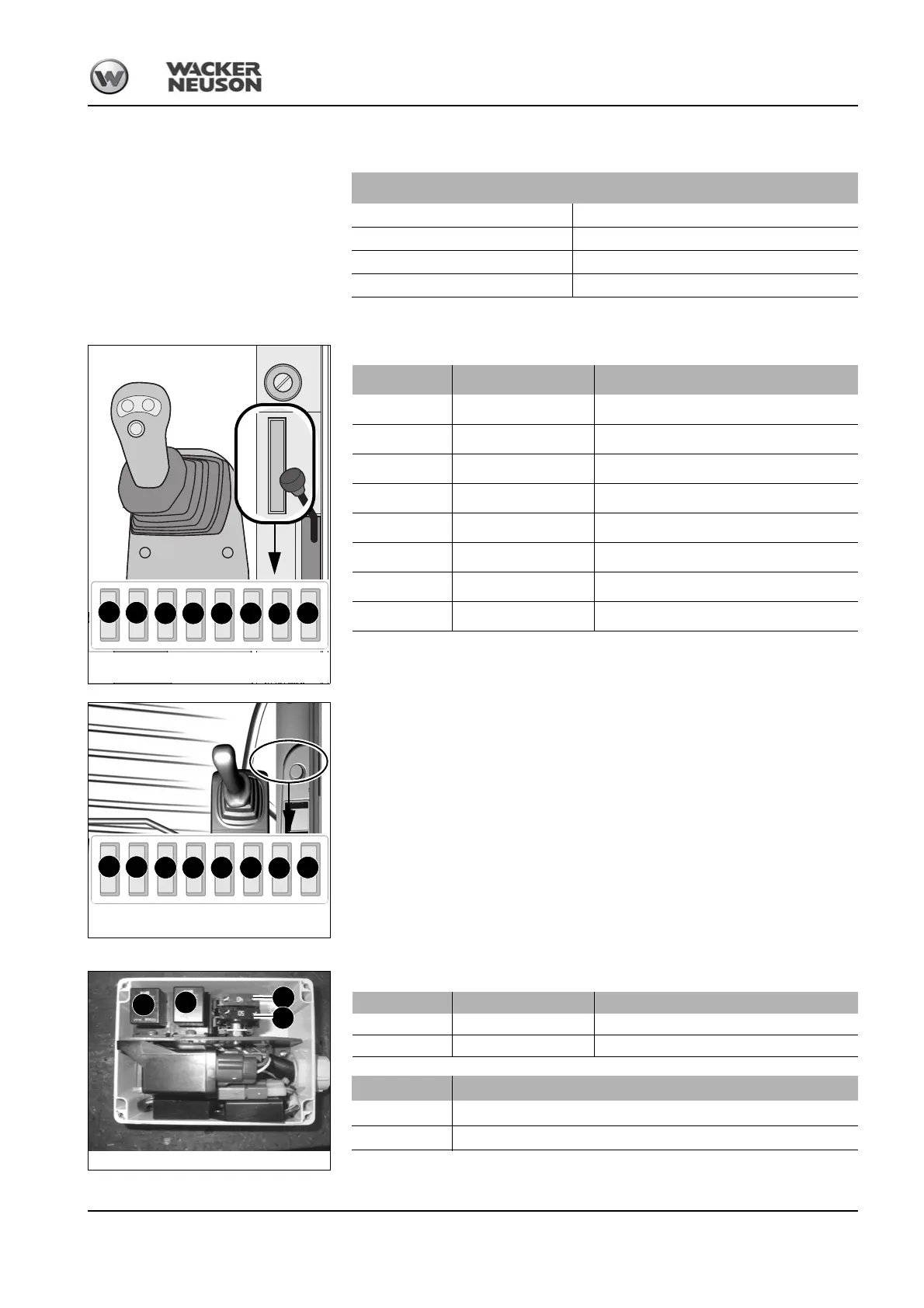

Fig. 325: Fuse box (up to serial no. AH02781)

F10

F5 F6 F7

Fuse no. Rated current (A) Protected circuit

F3 10 A

Indicators, cutoff solenoid, relays

F4 10 A

Boom light

F5 15 A

Roof lights

F6 10 A

Valves, horn

F7 15 A

Heating, air conditioning

F8 10 A

Wiper, interior light

F9 10 A

Rotating beacon, radio, drive interlock

F10 15 A

Socket, cigarette lighter

Fig. 326: Fuse box (from serial no. AJ02777)

F10

F5 F6 F7

Fig. 327: Relay box under the cab

Fuse no. Rated current (A) Protected circuit

F1 40 A Main fuse – start, preheating, cutoff solenoid

F2 50 A Main fuse – fuel-filling pump, ignition lock

Relay no. Protected circuit

K 9 Cutoff solenoid

K 5 Preheating
