BA 50Z3/6003 en – Edition 4.3 * 5003b340.fm 3-87
Operation

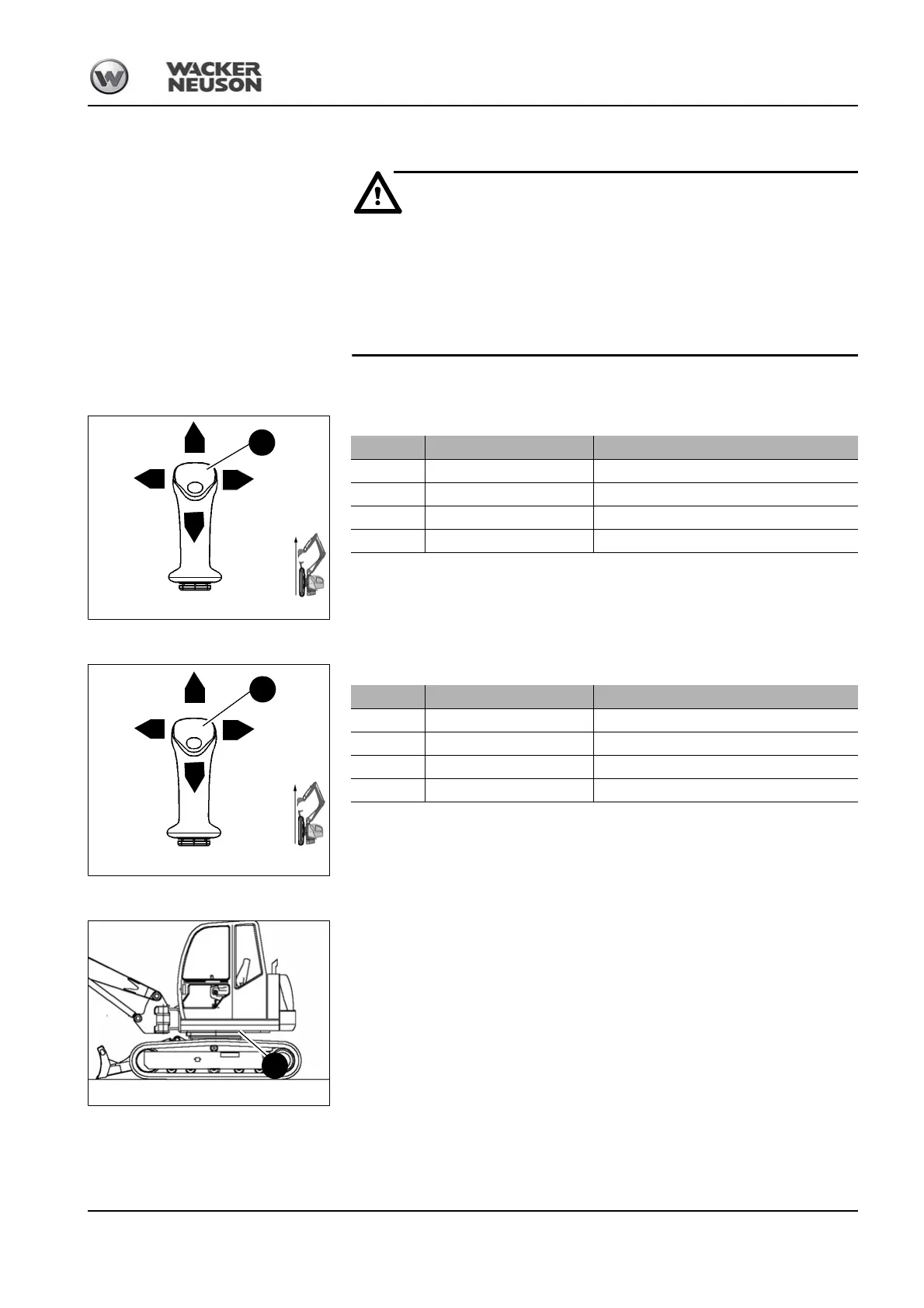

3.51 Changeover valve for SAE/ISO controls (option)
Danger!
Changing the directional valve over modifies the controls (control levers) –
Risk of accidents.
☞ Ensure that you know which control mode has been selected before starting work.
☞ Always secure wing nut J on the changeover lever of the directional valve.
☞ Before beginning work, familiarize yourself with the modified operation.
Left-hand control lever
Right-hand control lever
Directional valve position
The directional valve is located on the left in base plate I of the chassis.
Fig. 176: Left-hand control lever (SAE controls)
D
C
A
B
3
Position Lever Function
A
Forward Lowers the boom
B
To the right Rotates the upper carriage to the right
C
Backward Raises the boom
D
To the left Rotates the upper carriage to the left
Fig. 177: Right-hand control lever (SAE controls)
H
G
E
F
4
Position Lever Function
E
Forward Extends the stick
F
To the right Tilts out the bucket
G
Backward Retracts the stick
H
To the left Tilts in the bucket
Fig. 178: Directional valve position
I
