Operation The Powertilt function is only available with proportional controls.
The Powertilt function is enabled once the machine is started.
➥ The 3rd control circuit is disabled.
Before any work, ensure that the attachment is installed correctly and that it is
fully functional.
Do not allow anyone to stay in the risk zone.
☞ Never operate an attachment with a malfunctioning lock.
Right-hand control lever (Powertilt)
The Powertilt functions are operated with the right-hand control lever
.
Enabling the 3rd control circuit
☞ Press button C on the control lever.
☞ The unit installed on the 3rd control circuit can be moved or turned to the left A or right
B with slide switch D.
☞ Indicator light 1 of the proportional control status indicator illuminates.
A
B
C

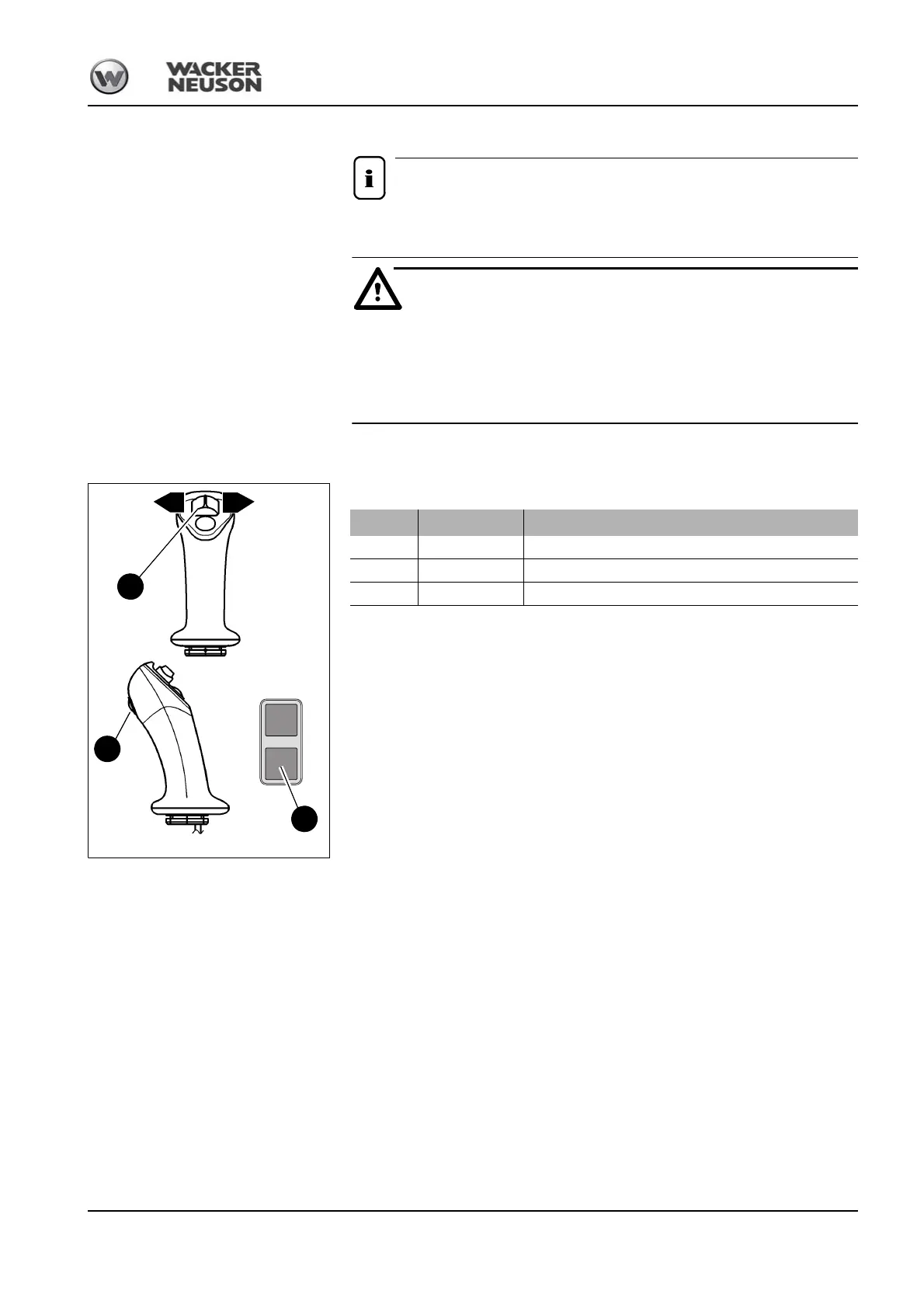

Fig. 228: Right-hand control lever
1
D
Position Lever Function
A
To the left Powertilt turns to the left
B
To the right Powertilt turns to the right
C
Powertilt and 3rd control circuit changeover
