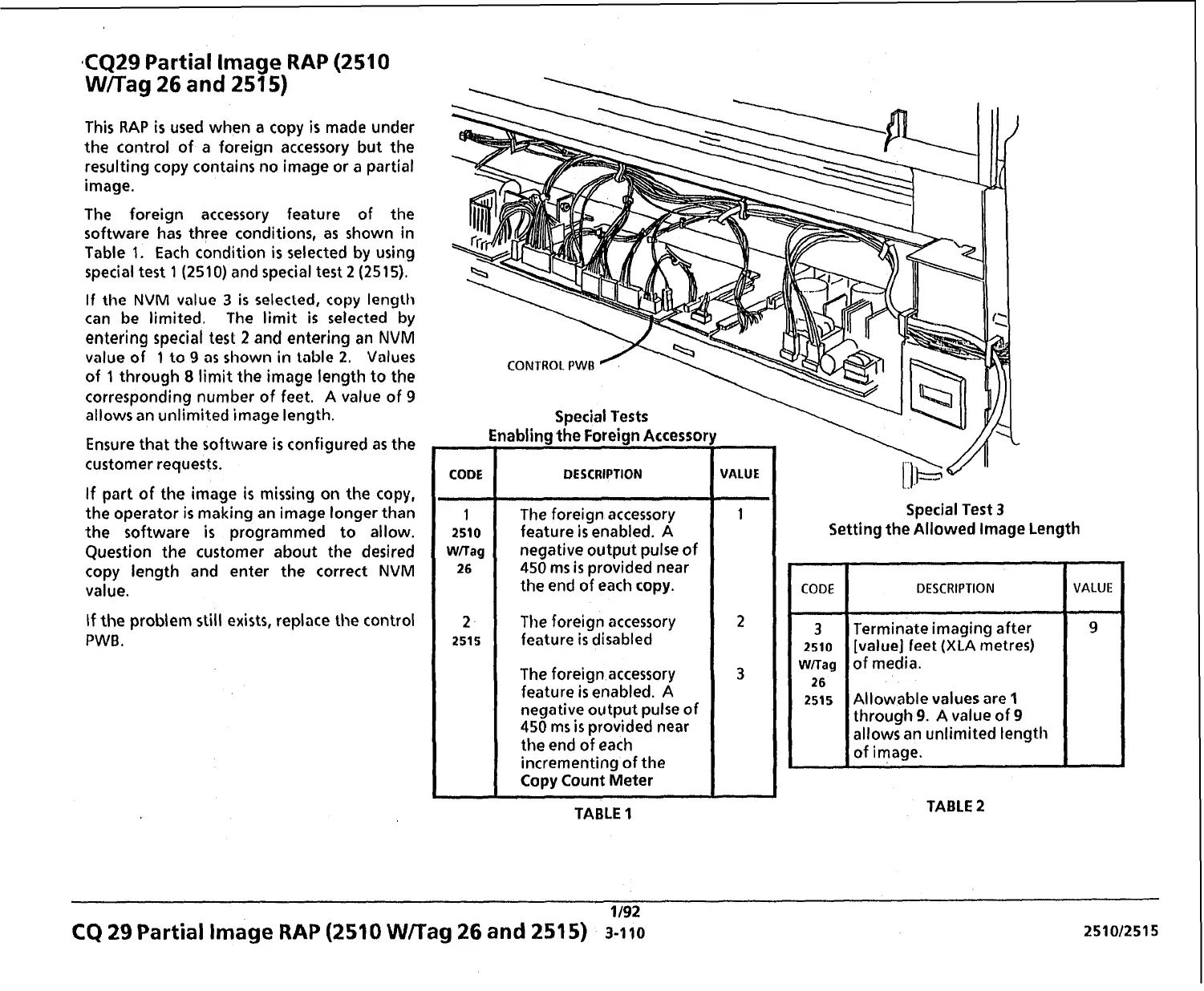

CQ29 Partial lmage RAP (2510
WRag 26 and 2515)
This RAP is used when a copy is made under
the control of a foreign accessory but the
resulting copy contains no image or a partial
image.
The foreign accessory feature of the
software has three conditions, as shown in
Table
1. Each condition is selected by using
special test
1 (251 0) and special test 2 (25 15).
If the NVM value 3 is selected, copy length
can be limited. The limit
is selected by
entering special test
2 and entering an NVM
value of
1 to 9 as shown in table 2. Values
of
1 through 8 limit the image length to the
corresponding number of feet.
A value of 9
allows an unlimited image length.
Ensure that the software
is configured as the
customer requests.
If part of the image
is missing on the copy,
the operator
is making an image longer than
the software
is programmed to allow.
Question the customer about the desired
copy length and enter the correct
NVM
value.
If the problem still exists, replace the control
PWB.
I
CODE
1
2510
WlTag
26
2,
2515
Special Tests
abling the Foreign Accessot
DESCRIPTION
The foreign accessory
feature
is enabled. A
negative output pulse of
450 ms
is provided near
the end of each copy.
The foreign accessory
feature
is disabled
The foreign accessory
feature
is enabled. A
negative output pulse of
450 ms is provided near
the end of each
incrementing of the
Copy Count Meter
TABLE
1
-
VALUE
-
1
2
3
Special Test 3
Setting the Allowed lmage Length
DESCRIPTION
Terminate imaging after
[value] feet (XLA metres)
of media.
Allowable values are
1
through 9. A value of 9
allows an unlimited length
of image.
TABLE
2
1 /92
CQ 29 Partial lmage RAP (251 0 WJTag 26 and 251 5) 3-1 10
