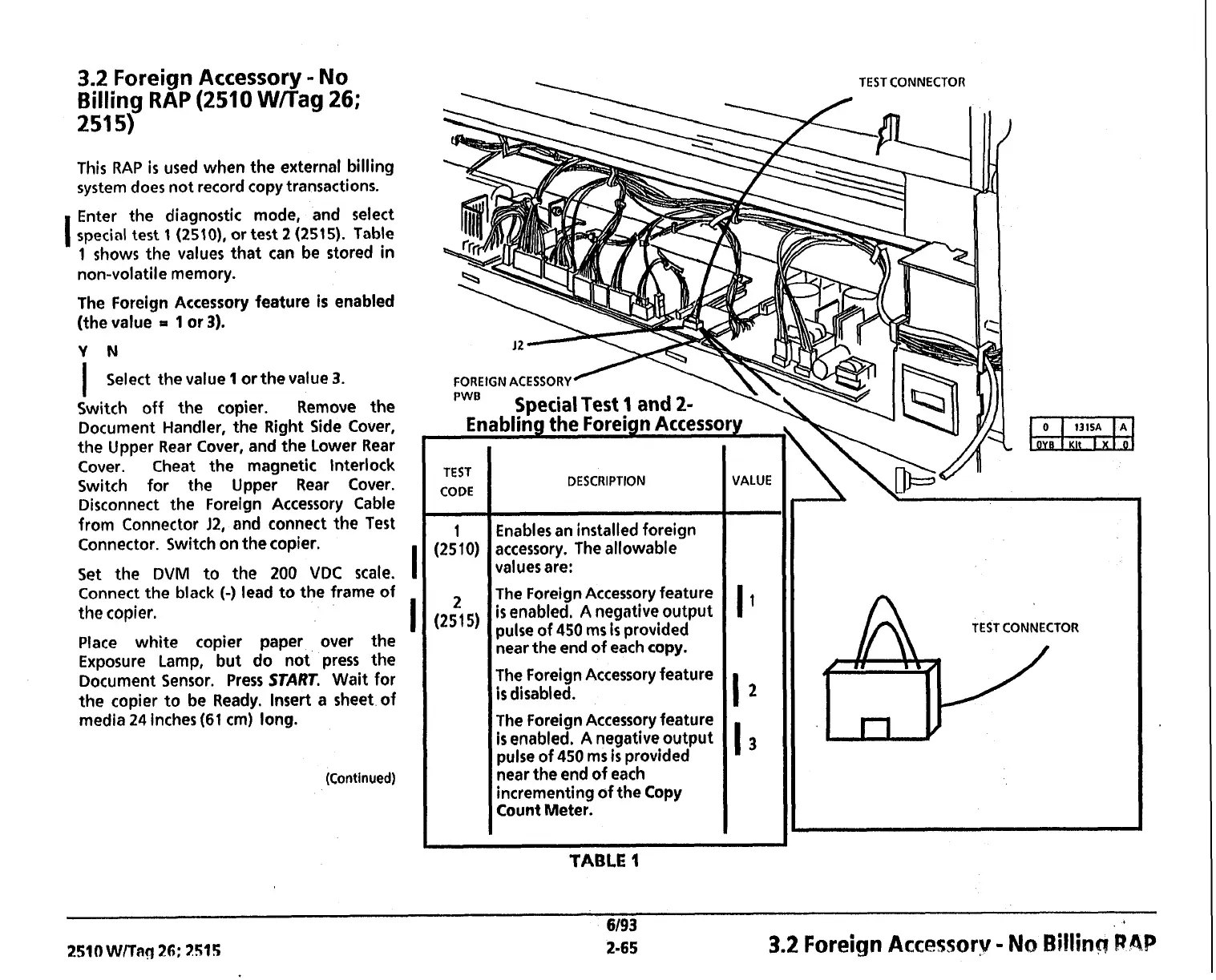

3.2 Foreign Accessory - No
Billing RAP (2510 WKag 26;
251 5)
This RAP is used when the external billing
system does not record copy transactions.
I
Enter the diagnostic mode, and select
special
test 1 (2510), or test 2 (2515). Table
1 shows the values that can be stored in
non-volatile memory.
The Foreign Accessory feature
is enabled
(the value
P 1 or 3).
I Select the value 1 or the value 3.
Switch off the copier. Remove the
Document Handler, the Right Side Cover,
the Upper Rear Cover, and the Lower Rear
Cover. Cheat the magnetic Interlock
Switch for the Upper Rear Cover.
Disconnect the Foreign Accessory Cable
from Connector
J2, and connect the Test
Connector. Switch on the copier.
Set the DVM to
the 200 VDC scale.
Connect the black
(-) lead to the frame of
the copier.
TEST
CODE
1 TEST CONNECTOR
FOREIGN ACESSORY
DESCRIPTION
Place white copier paper over the
Exposure Lamp, but do not press the
Document Sensor. Press
START. Wait for
the copier to be Ready. Insert a sheet of
media
24 inches (61 cm) long.
(Continued)
TABLE 1
Enables an installed foreign
accessory. The allowable
values are:
The Foreign Accessory feature
is enabled. A negative output
pulse of
450 ms is provided
near the end of each copy.
The Foreign Accessory feature
is disabled.
The Foreign Accessory feature
is enabled. A negative output
pulse of
450 ms is provided
near the end of each
incrementing of the Copy
Count Meter.
VALUE
6/93
2510 WIT;^^ 26: 351s
2-65
3.2 Foreign Accessory - No Billinq R 4P
