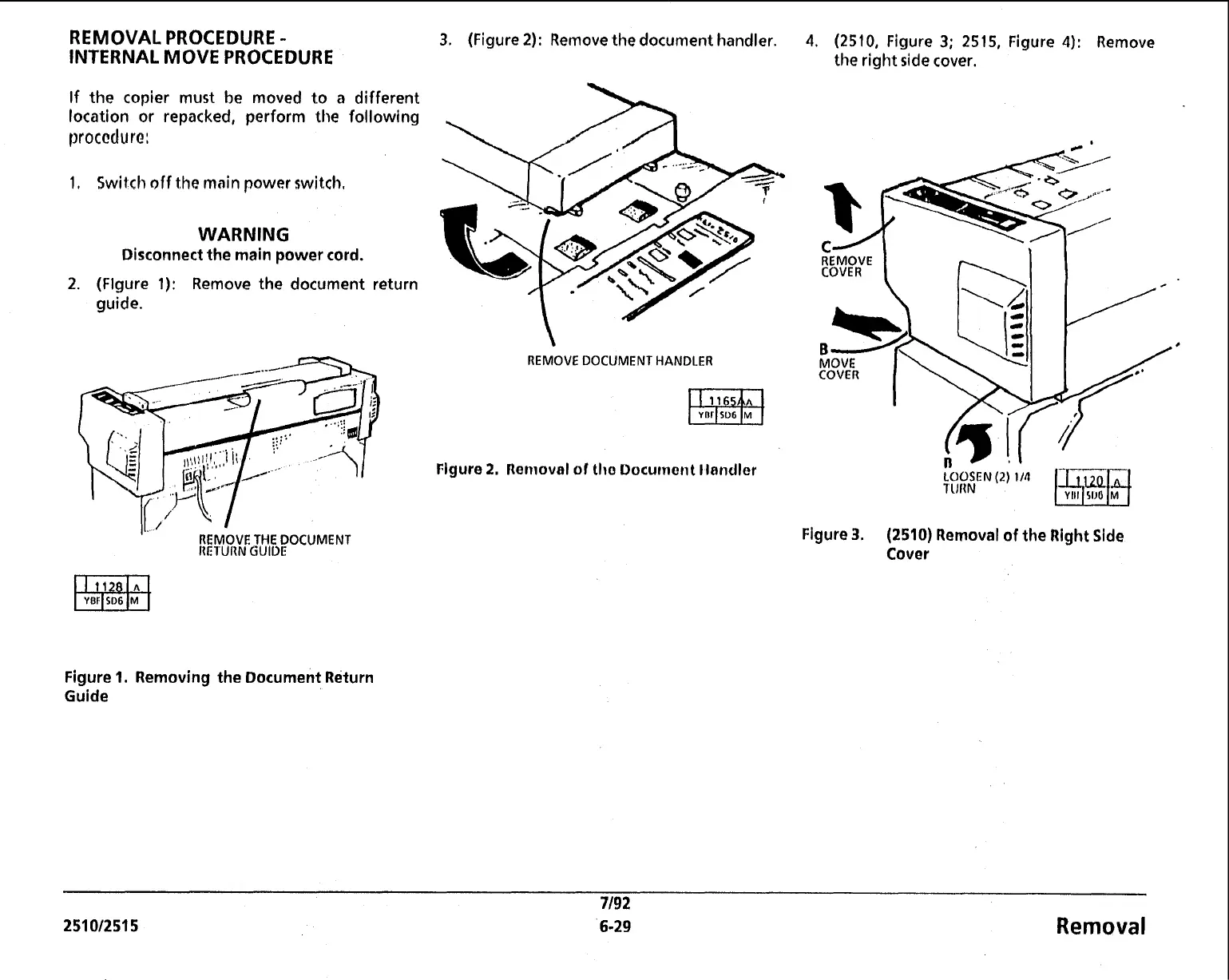

REMOVAL PROCEDURE -
INTERNAL MOVE PROCEDURE
If the copier must be moved to a different
location or repacked, perform
the following
procadurcl:
1, Switch off the main power switch.
WARNING
Disconnect the main power cord.
2. (Flgure 1): Remove the document return
guide.
REMOVE THE DOCUMENT
RETURN GUIDE
YBF SD6 M
Wkl
Figure 1. Removing the Document Return
Guide
3. (Figure 2): Remove the document handler.
REMOVE DOCUMENT HANDLER
Flgure 2. Renioval of tho Document Ilancller
4. (2510, Figure
3; 2515, Figure 4): Remove
the right side cover.
LOOSEN (2) 114
I URN
Figure 3.
(2510) Removal of the Right Side
Cover
Removal
