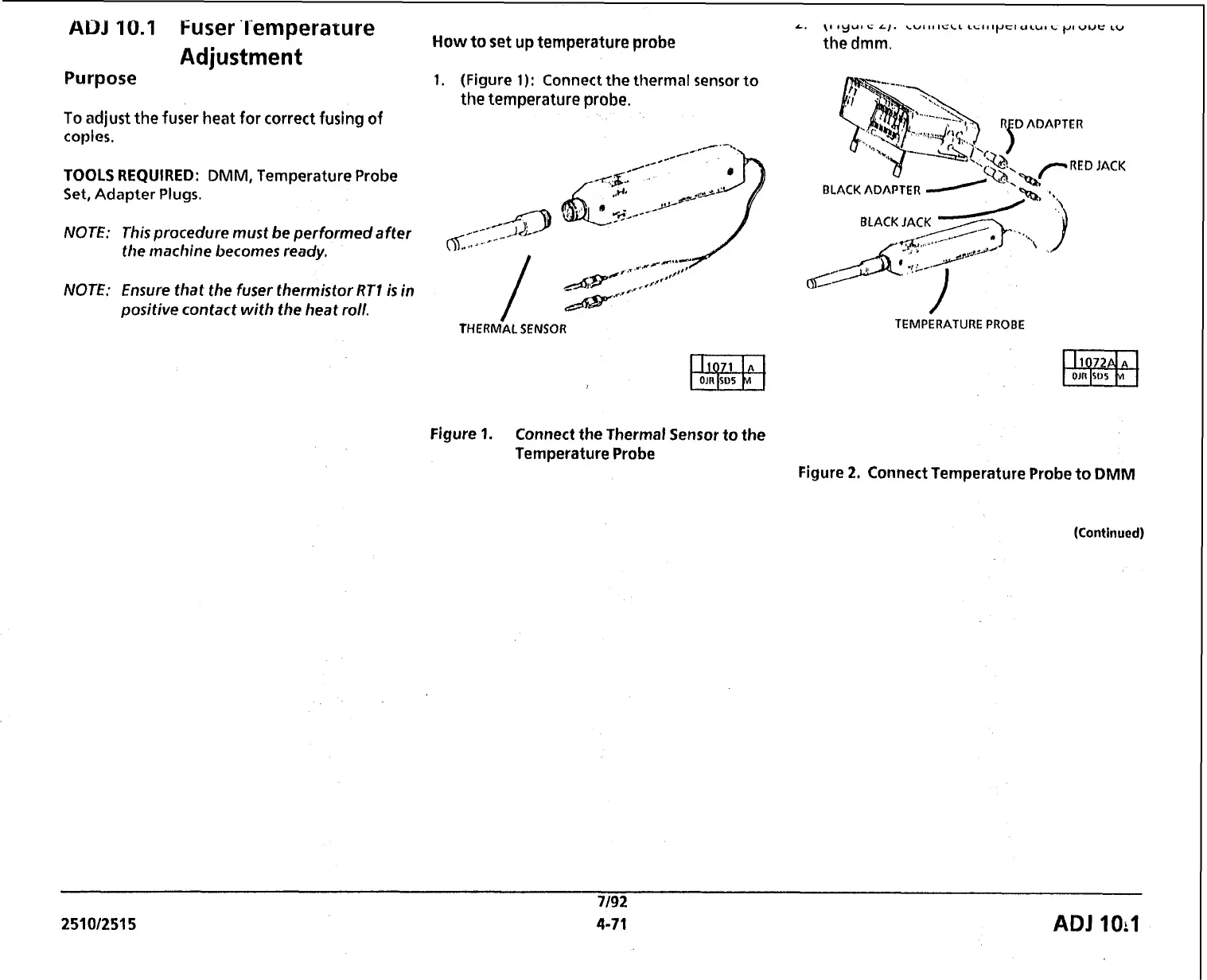

Xerox 2515 User Manual

AUJ 10.1 Fuser Temperature
Adjustment
Purpose
To adjust the fuser heat for correct fusing of
copies.
TOOLS REQUIRED: DMM, Temperature Probe
Set, Adapter Plugs.
NOTE: This procedure must be performed after
the machine becomes ready.
NOTE: Ensure that the fuser thermistor RT1 is in
positive contact with the heat roll.
How to set up temperature probe
1. (Figure 1): Connect the thermal sensor to
the temperature probe.
TEMPERATURE PROBE
Figure 1.
Connect the Thermal Sensor to the
Temperature Probe
Figure
2. Connect Temperature Probe to DMM
(Continued)
ADJ 10i1
