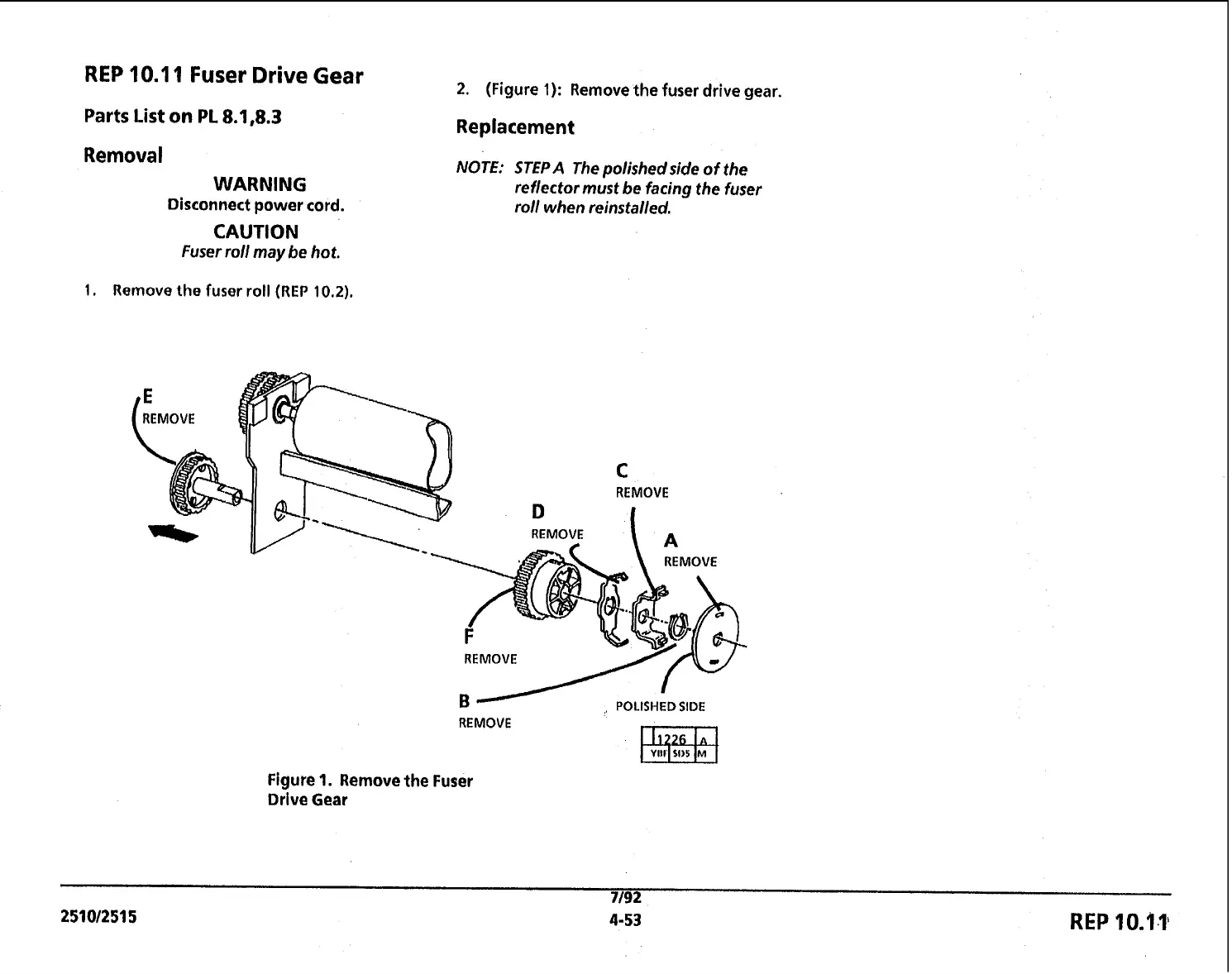

REP 10.1 1 Fuser Drive Gear
Parts List on PL 8.1,8.3
Removal
WARNING
Disconnect power cord.
CAUTION
Fuser roll may be hot.
1. Remove the fuser roll (REP 10.2).
2.
(Figure 1): Remove the fuser drive gear.
Replacement
NOTE: STEP A The polished side of the
reflector must be facing the fuser
roll when reinstalled.
REMOVE
REMOVE
Figure 1. Remove the Fuser
Drive Gear
,, POLISHED SIDE
7/92
25101251 5 4-53
REP 10.l.Ib
