Xerox 2515 User Manual

REP 10.12 Thermistor Assembly
(RT1)
Parts List on PL 9.3
Removal
WARNING:
Disconnect power cord.
1. Remove xerographic module. (REP 9.1)
2. Lower the transport latching cover.
3. Lower the front cover.
CAUTION Replacement
The fuser roll may be hot.
Note: Lightly lubricate the Fuser Roll over
CAUTION
the entire surface with Silicon Oil, in
Handle the Oil Dispenser Assembly with
the area where the Thermistor comes
care to avoid damaging
the Stripper
in contact
with the roll.
Fingers,
1. Adjust the fuser temperature (ADJ 10.1).
4. (Figure 1): Remove thermistor (RT1).
2510 @ ~ISCONNECT (I)
2510 WJTAG 5
AND 251 5
THERMISTOR
SCREWS
(4)
2510

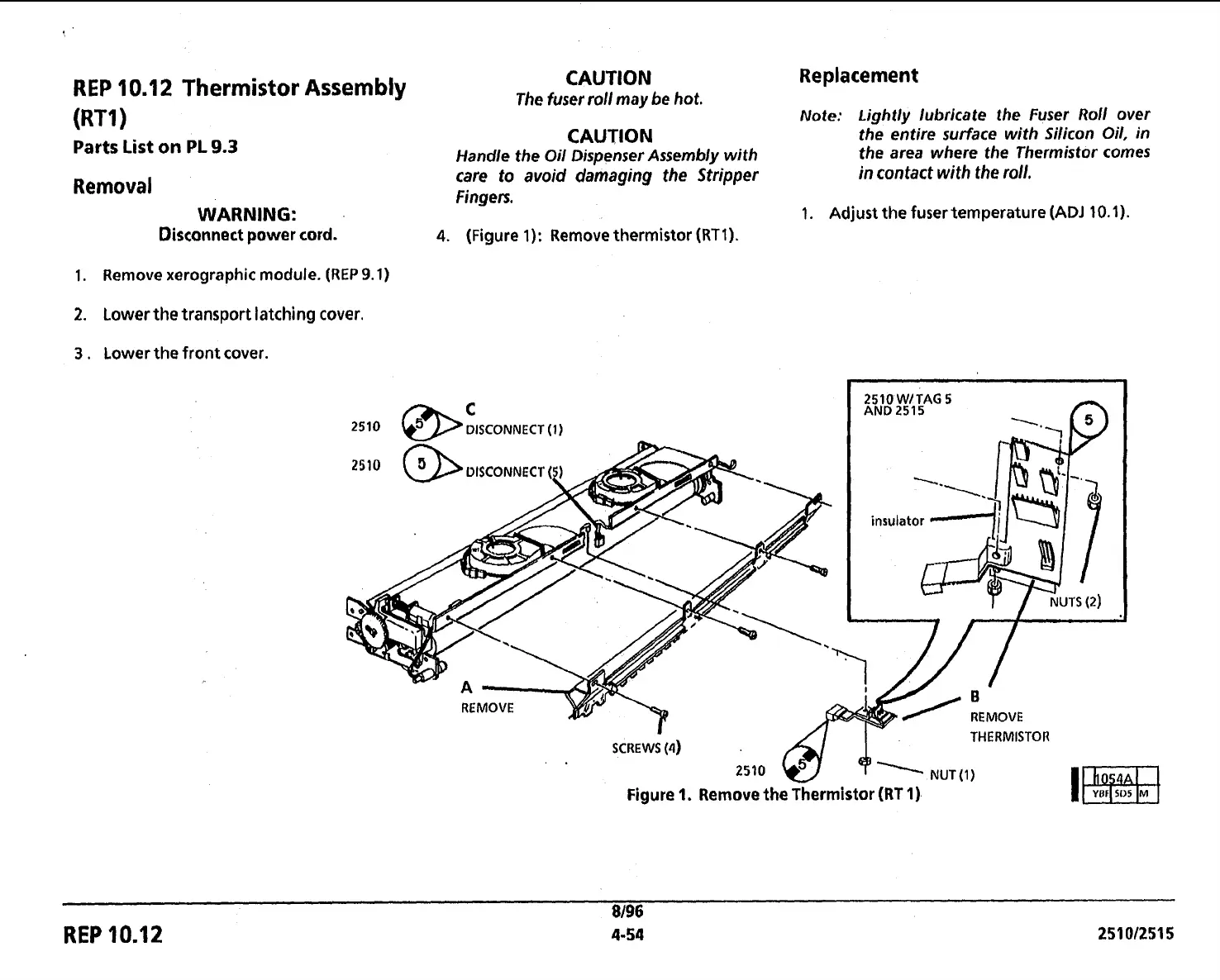

Figure 1. Remove the Thermistor (RT 1)
II h0i4A~ t
YOF 505 M
8/96
REP 10.12 4-54 251 012515
