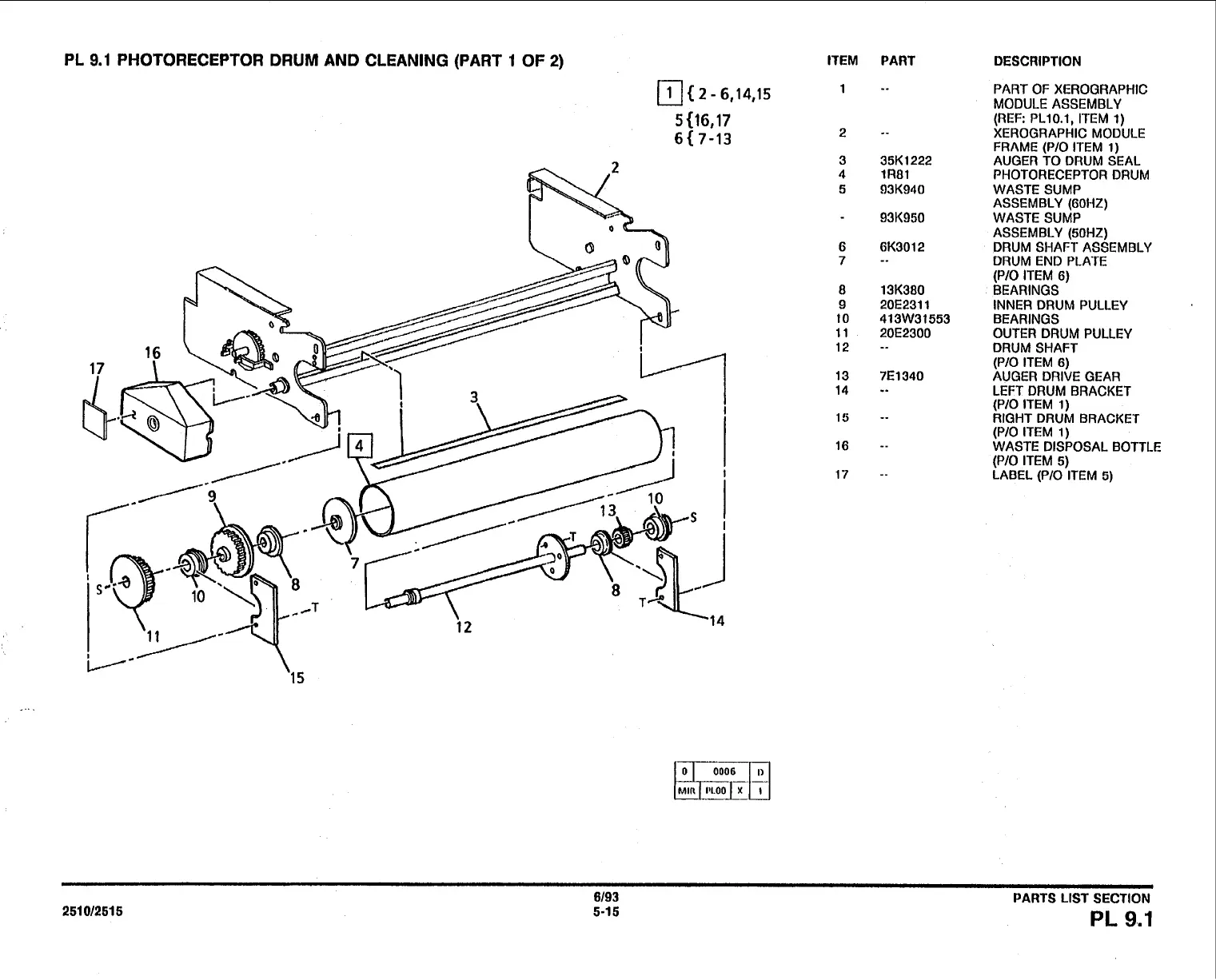

PL 9.1 PHOTORECEPTOR DRUM AND CLEANING (PART 1 OF 2)
ITEM
PART
--
.-
35K1222
1R81
93K940
93K950
6K3Ol2
--
13K380
20E2311
413W31553
20E2300
--
7E1340
.-
--
*-
--
DESCRIPTION
PART OF XEROGRAPHIC
MODULE ASSEMBLY
(REF: PL1O.l, ITEM 1)
XEROGRAPHIC MODULE
FRAME
(PI0 ITEM 1)
AUGER TO DRUM SEAL
PHOTORECEPTOR DRUM
WASTE SUMP
ASSEMBLY (60HZ)
WASTE SUMP
ASSEMBLY (50HZ)
DRUM SHAFT ASSEMBLY
DRUM END PLATE
(PI0 ITEM 6)
BEARINGS
INNER DRUM PULLEY
BEARINGS
OUTER DRUM PULLEY
DRUM SHAFT
(PI0 ITEM
6)
AUQER DRIVE GEAR
LEFT DRUM BRACKET
(PI0 ITEM 1)
RIGHT DRUM BRACKET
(PI0 ITEM 1)
WASTE DISPOSAL BOTTLE
(PI0 ITEM
5)
LABEL (PI0 ITEM 5)
6/93 PARTS LIST SECTION
251012515
5-16
PL 9.1
