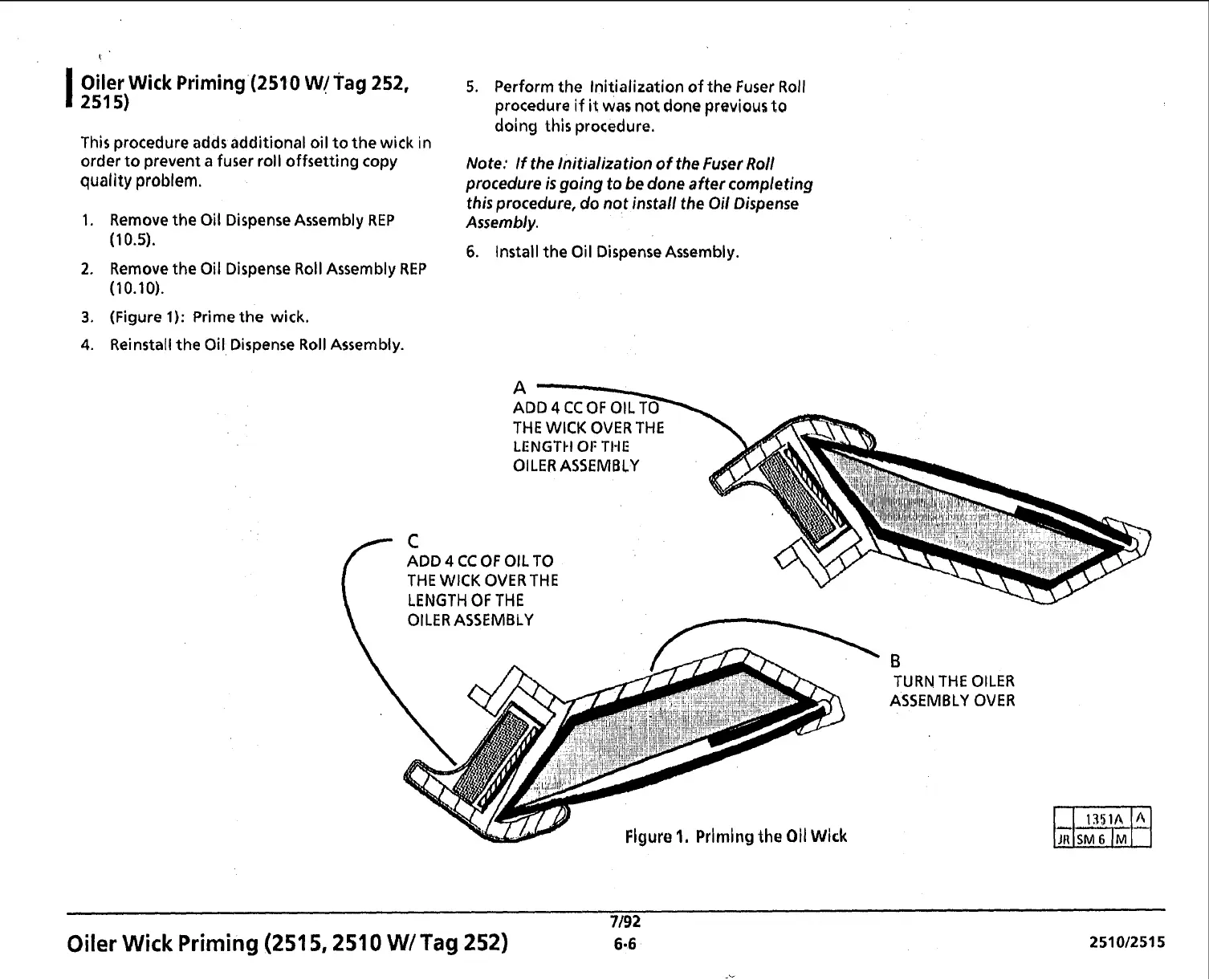

Xerox 2515 User Manual

Oiler Wick Priming (2510 Wl iag 252,
1 2515)
This procedure adds additional oil to the wick in
order to prevent
a fuser roll offsetting copy
quality problem.
1. Remove the Oil Dispense Assembly REP
(1 0.5).
2. Remove the Oil Dispense Roll Assembly REP
(10.10).
3. (Figure 1): Prime the wick.
4. Reinstall the Oil Dispense Roll Assembly.
5. Perform the Initialization of the Fuser Roll
procedure
if it war not done previous to
doing this procedure.
Note:
If the Initialization of the Fuser Roll
procedure
is going to be done after completing
this procedure,
do not install the Oil Dispense
Assembly.
6. Install the Oil Dispense Assembly.
A
ADD 4 CC OF OIL T
THE WICK OVER THE
LENGTI-I
01: THE
OILER ASSEMBLY
ADD 4 CC OF OIL TO
THE WICK OVERTHE
LENGTH OF THE
f
\ OlLER ASSEMBLY
B
TURN THE
ASSEMBLY
OlLER
OVER
7/92
Oiler Wick Priming (251 5,251 0 W/ Tag 252)
6.6
