5. (Figure 6): lnstall plastic wire retainers and NOTE:
dampers.
NOTE: When installing the dampers, ensure
that the edges of the dampers are
below lhe corotrm dyes.
G. (I:lyuro 7): Insloll the corolron slrlng
shiold, NOTE:
NOTE: Reinstall the string shield removed
at
the beginning of this procedure, or
install the plastic corotron shields.
Fold the string in half to determine the
center of the string. lnstall the center
of the string over the
cut-oc~t in the
center of
the corotron. Wind one side
and sect~re before repealing llte sme
procedure on tho other side,
Ensure that the corotron string shield
is tight enough that
il does not sag
and touch the corotron wire.
1111

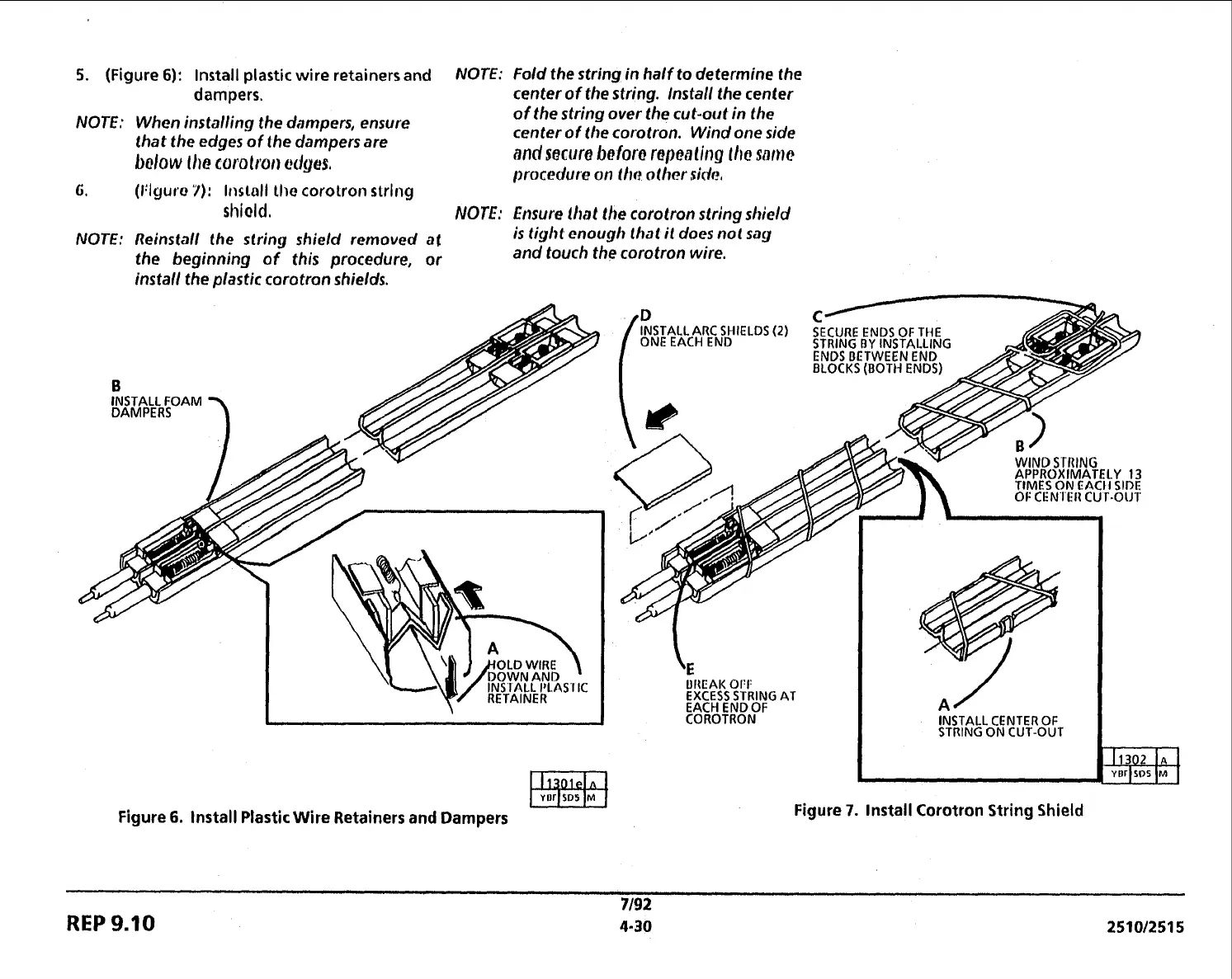

Figure 6. lnstall Plastic Wire Retainers and Dampers
INSTALL CENTER OF
STRING
ON CUT-OUT
Figure 7. Install Corotron String Shield
7/92
REP 9.10 4-30 251012515
