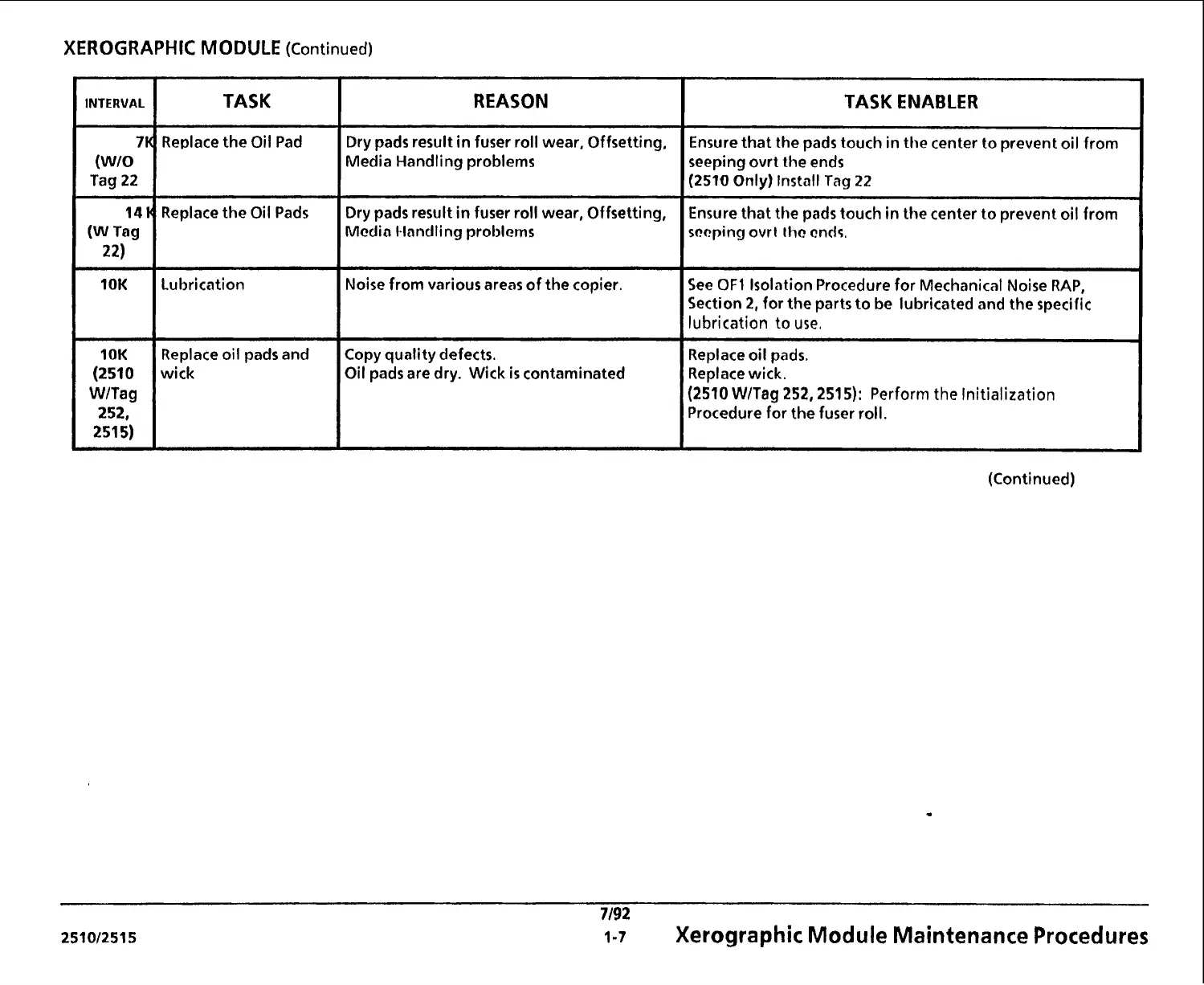

XEROGRAPHIC MODULE (Continued)
INTERVAL
71
(WIO
Tag 22
TASK
Replace the Oil Pad
Replace the Oil Pads
Lubrication
Replace oil pads and
wick
REASON
Dry pads result in fuser roll wear, Offsetting.
Media Handling problems
Dry pads result
in fuser roll wear, Offsetting,
Mcdia I4ondling problems
Noise from various areas of the copier.
Copy quality defects.
Oil pads are dry. Wick
is contaminated
TASK ENABLER
- - - - - - -
Ensure that the pads touch in the center to prevent oil from
seeping ovrt the ends
(2510 Only) Install Tag 22
Ensure that the pads touch in the center to prevent oil from
sccping ovrl
thc cndr.
See
OF1 Isolation Procedure for Mechanical Noise RAP,
Section
2, for the parts to be lubricated and the specific
lubrication to
use.
Replace oil pads.
Replace wick.
(2510
WlTag 252,2515): Perform the Initialization
Procedure for the fuser roll.
(Continued)
7/92
251012515 1.7 Xerographic Module Maintenance Procedures
