Xerox® Phaser® 3052/3260 Service Manual
PL 4.5
Parts Lists

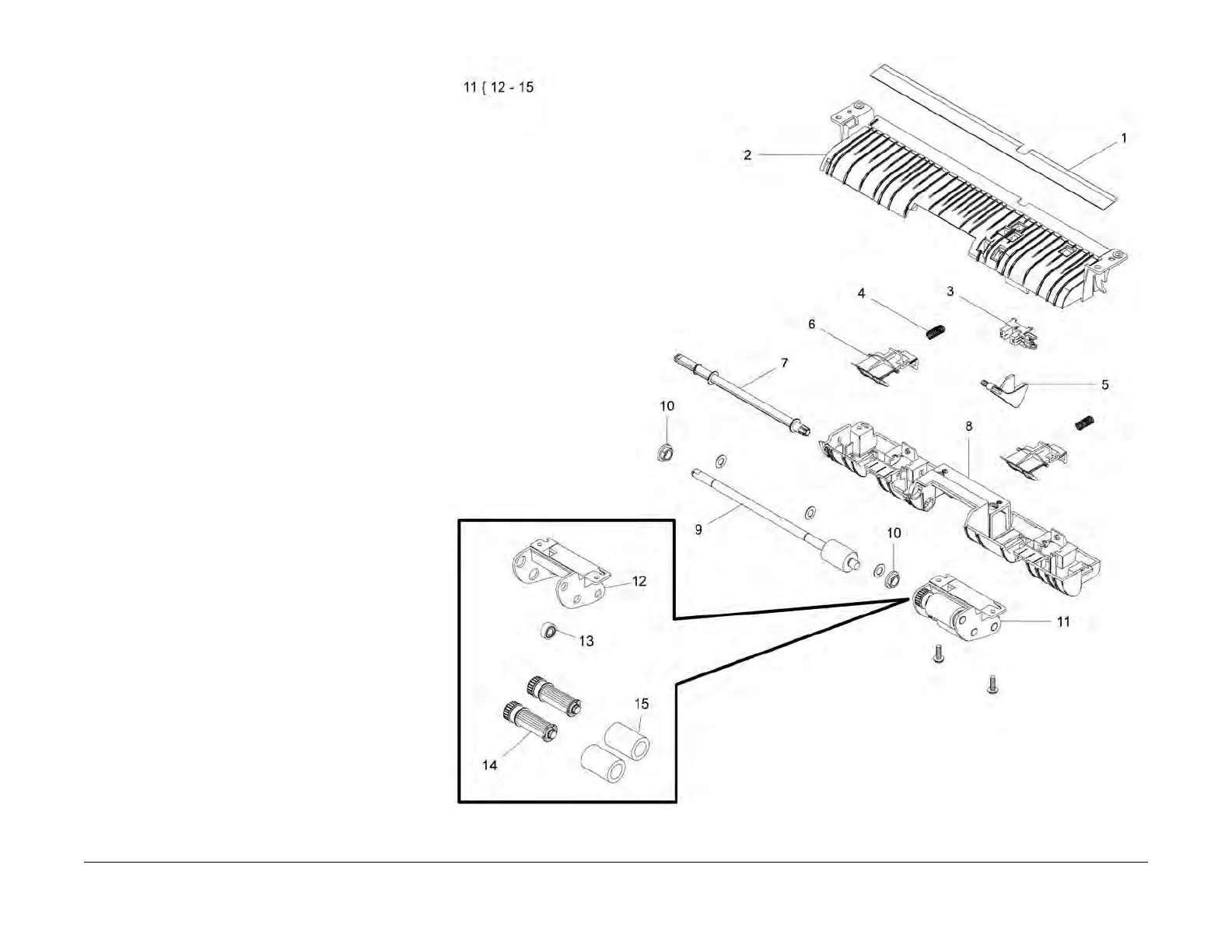

PL 4.5 Frame Base Pick - Up
Item Part Description
1 – Duplex Path Sheet
2 – Duplex Guide
3 130N01758 Paper Tray Empty Sensor
4– Spring
5 – Empty Actuator
6 – Duplex Guide Lever
7 – Pick Up Shaft
8 – Pick Up Guide
9 022N02802 Paper Drive Roller
10 – Bushing
11 130N01760 Paper Feed Roll Assembly
12 – Feed Roll Holder
13 – Idle Pick Up Gear
14 – One Way Clutch
15 – Retard Roller
