Xerox® Phaser® 3052/3260 Service Manual
REP 1.23
Repairs
REP 1.23 Manual Paper Tray
Parts List on PL 4.4
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the following covers:
a. Remove the Left and Right Side Covers (REP 1.2).
b. Remove the Rear Cover (REP 1.4).
c. Remove the Top Cover (REP 1.3).
3. Remove the Manual Paper Tray bottom screws (2) (Figure 1).

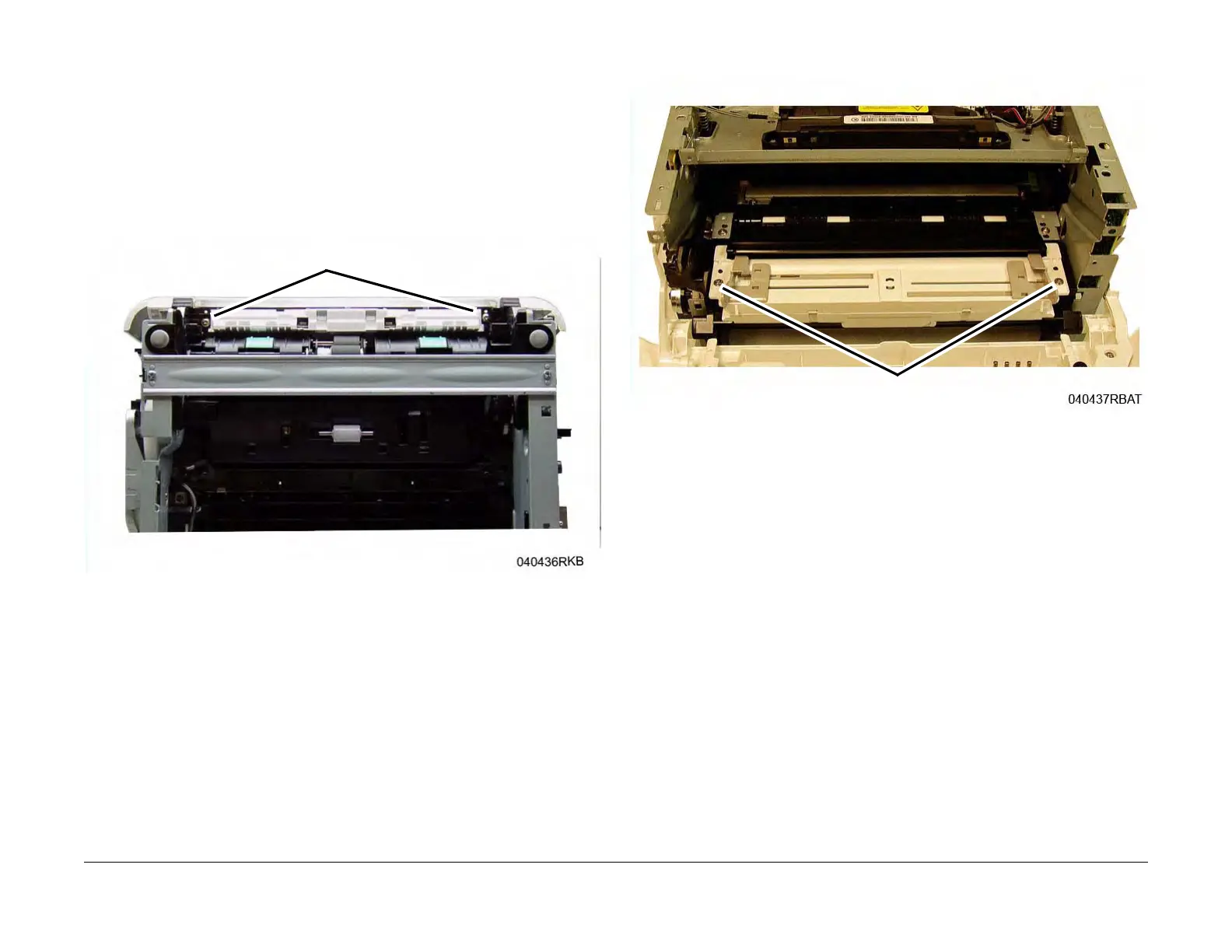

Figure 1 Manual Paper Tray Bottom Screws (Bottom View)
4. Remove the Manual Paper Tray top screws (2) and the paper tray (Figure 2).
Figure 2 Manual Paper Tray Top Screws (Top View)
Replacement
Install the components in the reverse of removal.
Screws
Screws
