4-24
Xerox® Phaser® 3052/3260 Service Manual
REP 1.14, REP 1.15
Repairs
NOTE: When replacing the Actuators make sure the Spring is correctly seated in the cutout in
the frame (Figure 5).

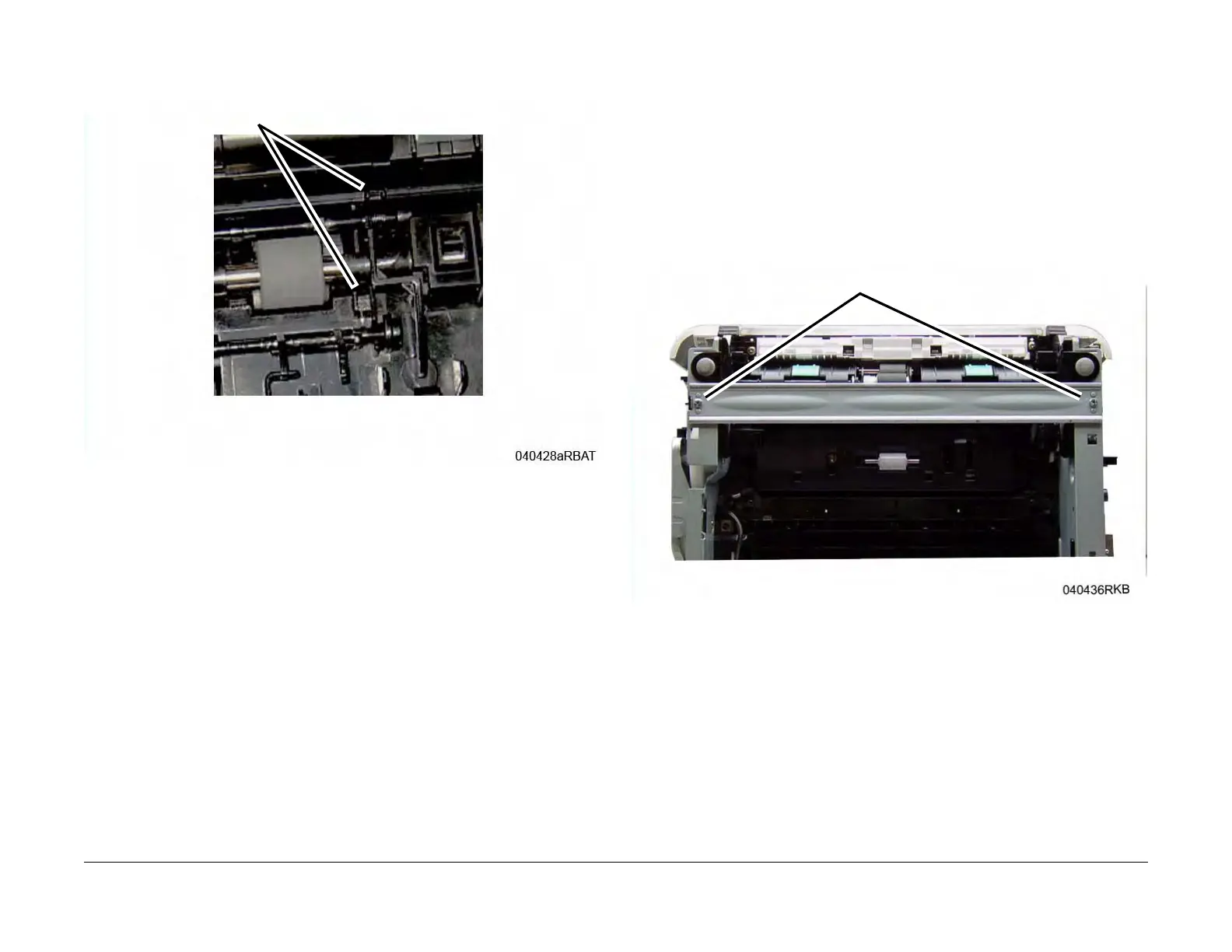

Figure 5 Actuator Spring Cutouts (Bottom View)
REP 1.15 Feed and Forward Roll Assembly
Parts List on PL 4.4
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the Paper Cassette.
3. Remove the Left and Right Side Covers (REP 1.2).
4. Set the printer so the Front of the printer facing up.
NOTE: The Feed and Forward Roll Assembly screws are different from the Bottom Bar
screws. Observe the screw locations for correct replacement.
5. Remove the Bottom Bar (2 screws) (Figure 1).
Figure 1 Removing the Bottom Bar (Bottom View)
6. Remove the Feed and Forward Roll Assembly (Figure 2):
a. Remove the screws (2)
b. Pull the right side of the assembly out, then slide the assembly out to the right.
Spring Cutouts
Screws
