Xerox® Phaser® 3052/3260 Service Manual
PL 5.1
Parts Lists

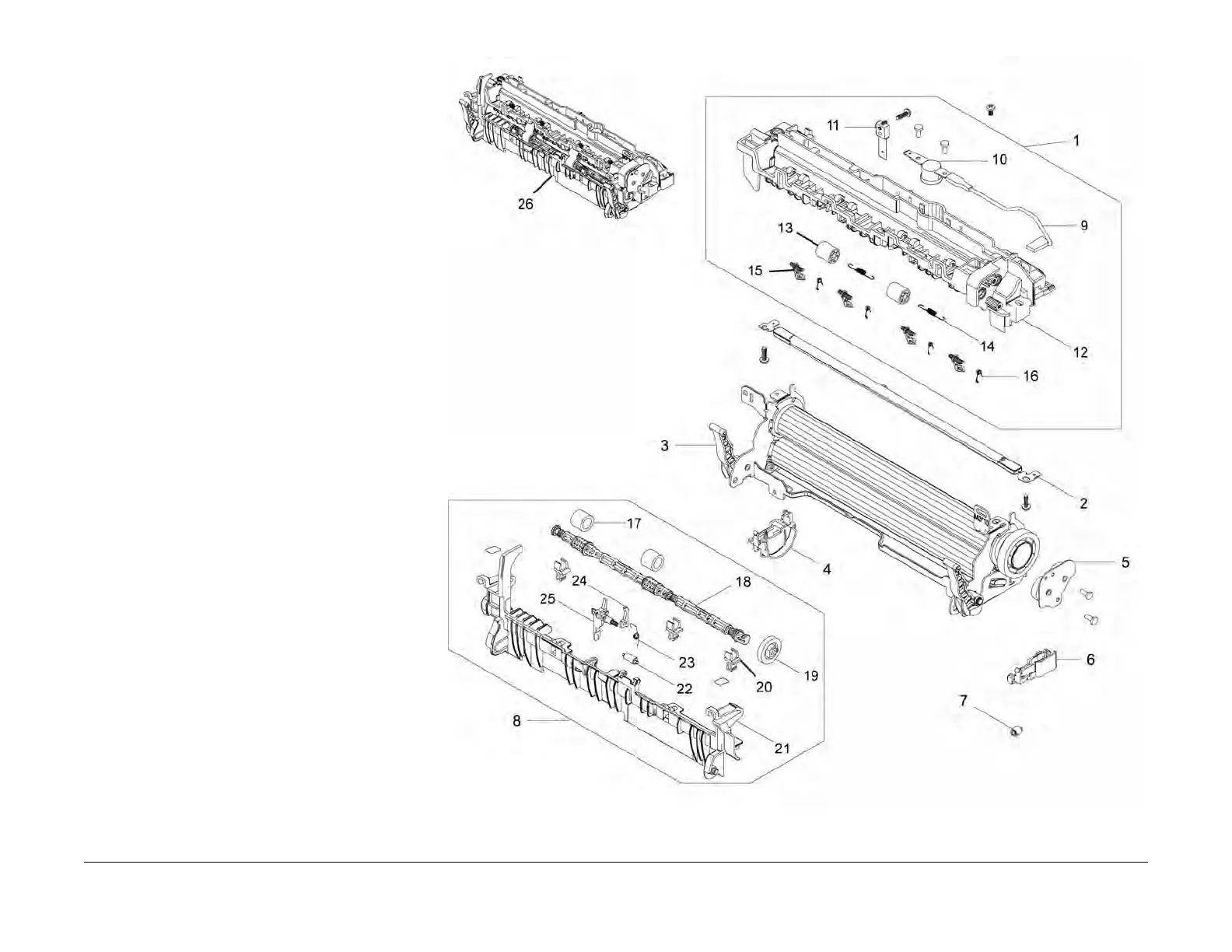

PL 5.1 Fuser
Item Part Description
1 – Upper Fuser
2 – Fuser Lamp
3 – Lower Fuser
4 – Right Lamp Cap
5 – Fuser Exit Drive
6 – Left Lamp Cap
7 – Fuser Gear Stopper
8 – Fuser Rear
9 – Fuser Joint Harness
10 – Thermostat
11 – Thermistor
12 – Fuser Cover
13 – Exit Roller
14 – Spring
15 – Guide
16 – Spring
17 – Exit Roller
18 – Exit Shaft
19 – Exit Gear
20 – Bushing
21 – Rear Guide
22 – Exit Idle Roller
23 – Spring
24 – Actuator Holder
25 – Exit Sensor Actuator
26 126N00430 Fuser Module (110V)
– 126N00431 Fuser Module (220V)
