4-22
Xerox® Phaser® 3052/3260 Service Manual
REP 1.13, REP 1.14
Repairs
REP 1.13 Feed and Registration Clutches / Paper Feed
PWB
Parts List on PL 4.1
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the Left Side Cover (REP 1.2).
3. Removing the Paper Feed PWB (Figure 1):
a. Disconnect the Connectors (3) on the Paper Feed PWB.
b. Remove the Screw (1) and the PWB.
4. Removing the Feeder Clutch (Figure 1)
a. Disconnect the Feeder Clutch Connector (CN2) on the Paper Feed PWB and
release the wires from the wire clamps.
b. Remove the E-ring and Washer from the Feeder Clutch.
c. Remove the Feeder Clutch.
5. Removing the Registration Clutch (Figure 1)
a. Disconnect the Registration Clutch Connector (CN1) on the Paper Feed PWB and
release the wires from the wire clamps.
b. Remove the E-ring and Washer from the Registration Clutch.
c. Remove the Registration Clutch.

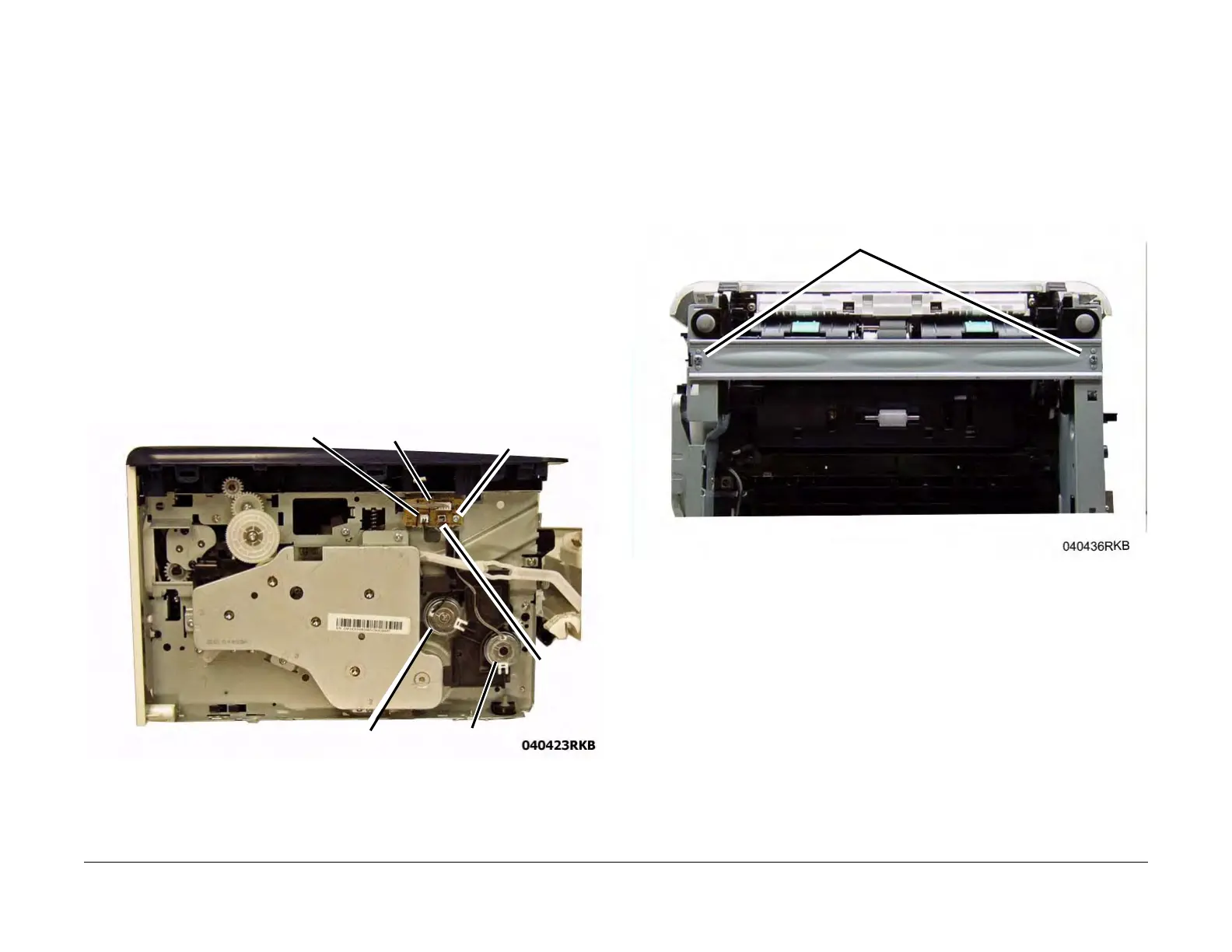

Figure 1 Feed and Registration Clutches / Paper Feed PWB
Replacement
Install the components in the reverse of removal.
REP 1.14 Feed and Registration Sensors PWB and
Actuators
Parts List on PL 4.4
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the Duplex Assembly (REP 1.18).
3. Set the printer on the Rear Cover (Front of printer facing up).
4. Remove the Bottom Bar (2 screws) (Figure 1).
Figure 1 Bottom Bar (Bottom View)
5. Remove the Feed and Registration Sensors PWB Cover (Figure 2).
a. Remove the screw (1).
b. Release the Latch and remove the cover.
Paper Feed PWB
CN2
CN1
Registration Clutch
Feed Clutch
Screw
Screws
