Xerox® Phaser® 3052/3260 Service Manual
REP 1.21, REP 1.22
Repairs
4. Release the WNPC PWB from the latches and remove it (Figure 2).

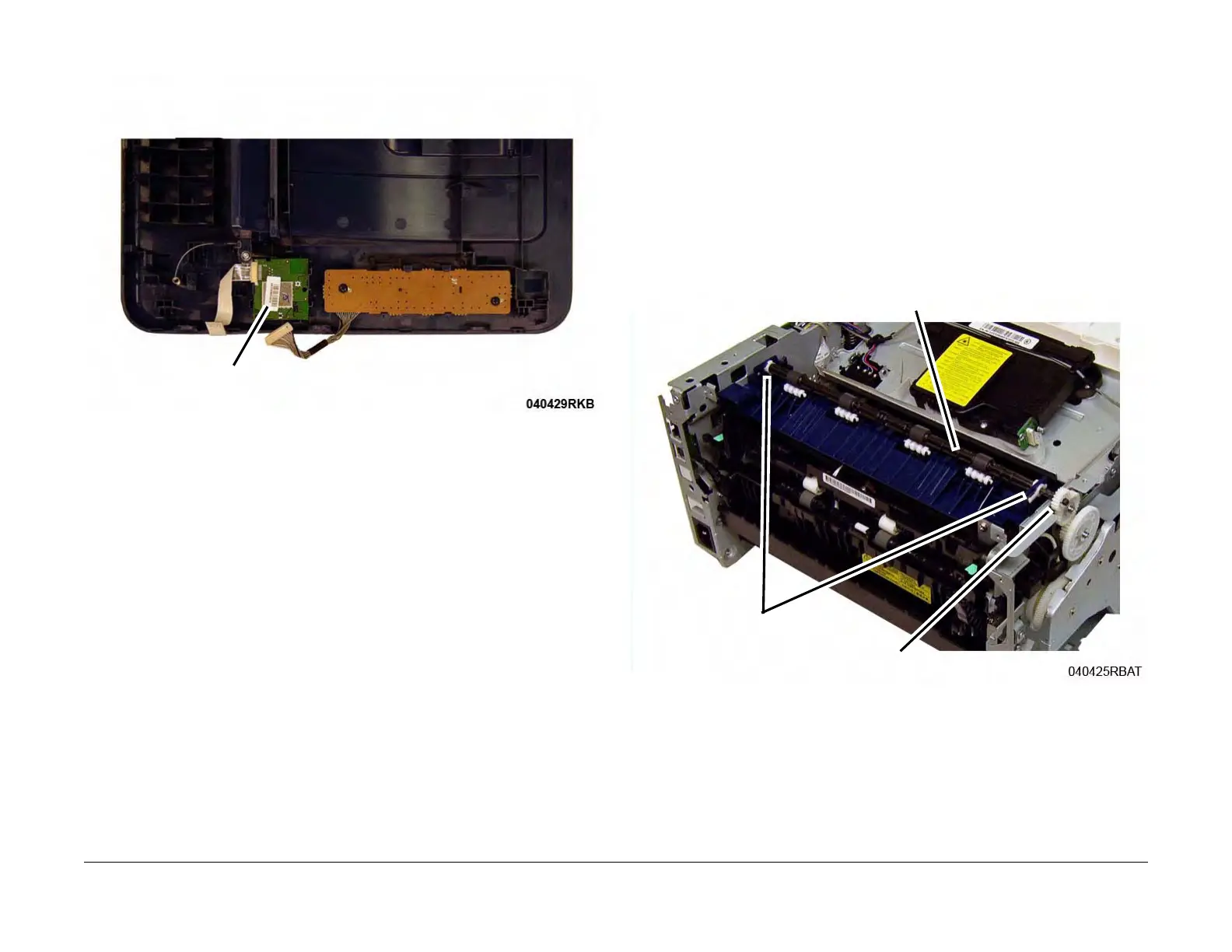

Figure 2 WNPC PWB (Underside of Top Cover)
Replacement
Install the components in the reverse of removal.
REP 1.22 Exit Roll and Bushings
Parts List on PL 4.3
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the following covers:
a. Remove the Left and Right Side Covers (REP 1.2).
b. Remove the Rear Cover (REP 1.4).
c. Remove the Top Cover (REP 1.3).
3. Remove the Exit Roll and Bushings (Figure 1).
a. Remove the Drive Gear, release the latch.
b. Remove the Bushings (2), release the latch and rotate the bushing.
c. Remove the Exit Roll.
Figure 1 Exit Roll and Bushing (Top View)
Replacement
Install the components in the reverse of removal.
WNPC PWB
Exit Roll
Bushings
Drive Gear
