June 2014
4-8
Xerox® Phaser® 3052/3260 Service Manual
REP 1.4, REP 1.5
Repairs

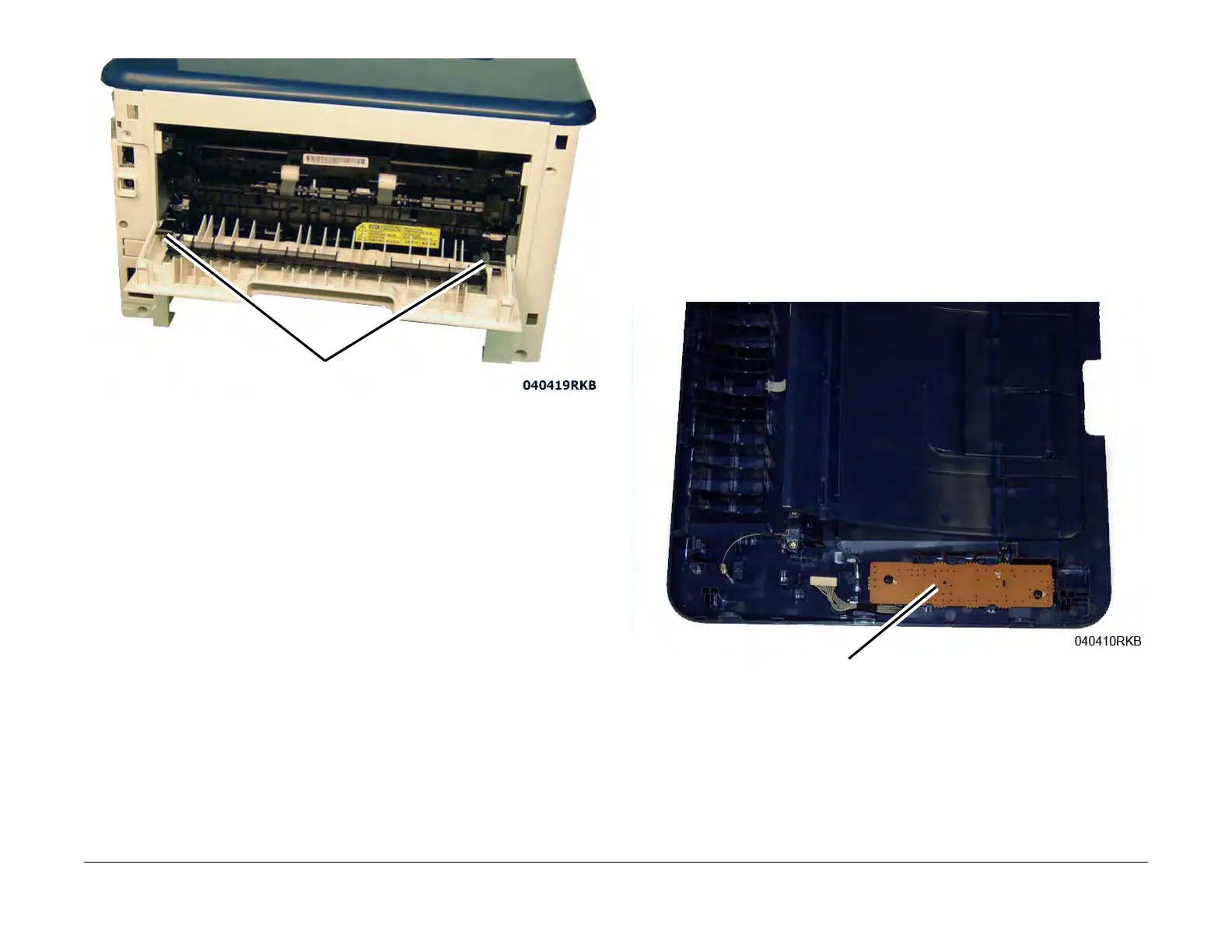

Figure 2 Releasing the Support Arms
4. Push down on the top of the Rear Cover to release the Latch Hooks (3) and remove the
cover.
Replacement
Important: If the Rear Cover is being replaced, remove the Data Plate Label from the old
Rear Cover and install it onto the new Rear Cover (Figure 1).
Install the components in the reverse of removal.
REP 1.5 Control Panel PWB
Parts List on PL 3.1
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the following covers:
a. Remove the Left and Right Side Covers (REP 1.2).
b. Remove the Front Cover (REP 1.1).
c. Remove the Rear Cover (REP 1.4).
d. Remove the Top Cover (REP 1.3).
3. Remove the screws (2) and release the latches (4) to remove the Control Panel PWB
(Figure 1).
The Figure shows the Phaser 3062 Without the Wireless (WLAN) PWB.
Figure 1 Control Panel PWB (Underside of Top Covers)
Replacement
Install the components in the reverse of removal.
Support Arms
Control Panel PWB
