Xerox Phaser 6120 Service Manual

Print Engine Theory of Operation
Phaser® 6120 Color Laser Printer Service Manual
7-45

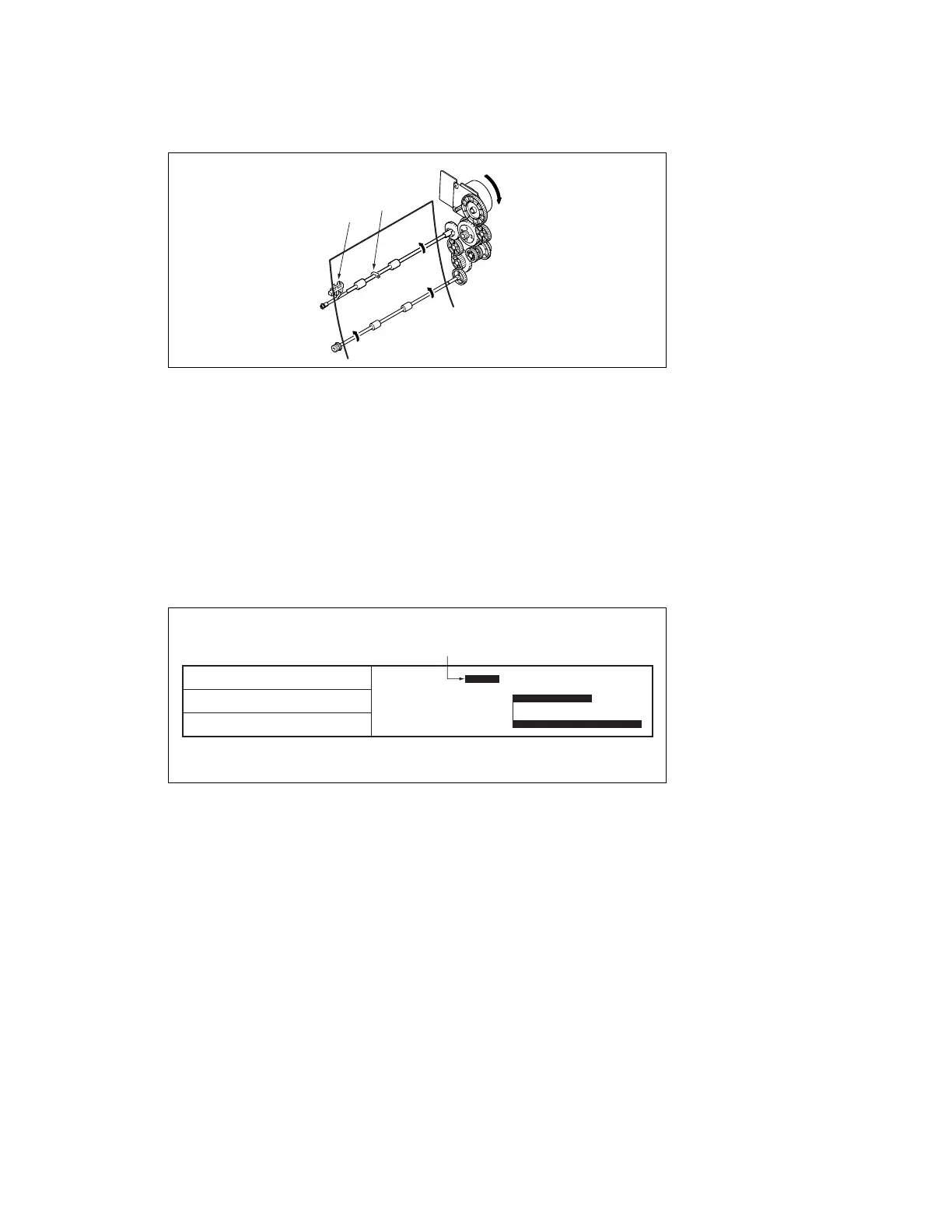

Registration Roller Drive
Registration Roller Control
■ The Registration Sensor (PC1) detects whether or not the paper has reached the
Conveyance Section.
■ Conveyance of paper is restarted by synchronizing the paper conveyed with the image.
■ Since the Conveyance Roller and Registration Roller are synchronized with each other, no
loop is formed in the paper at the Registration Roller.
OHP Film Detection
To ensure that the correct paper type is being used, the OHP Sensor (PC2A) detects the
presence of OHP or paper. When the Registration Sensor (PC1) is activated, the OHP Sensor
(PC2A) is also activated and the type of paper being conveyed is determined if it is OHP film
or any type other than OHP. If the OHP Sensor (PC2A) is not deactivated, the machine
determines that the paper is a type other than OHP film. If the OHP Sensor (PC2A) is
activated, the machine determines that the paper is OHP film. If the paper type specified by the
[1] Registration Sensor (PC1) [2] Actuator
[2]
[1]
4139to2035c0
4139to2105e0
Tray1 Paper Pick-up Solenoid (SL1)
Paper feed sequence started
Drive stopped
Registration Sensor (PC1)
Registration Roller Solenoid (SL2)

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
