Theory of Operation
Phaser® 6120 Color Laser Printer Service Manual
9-22
Paper Exit Roller Drive Coupling
When the Duplex Unit is mounted, the gear assy of the Fusing Unit is raised by the leading
edge of the Duplex Unit lever, thereby disconnecting drive from the machine (Fusing Roller).
The Paper Exit Roller is driven by the Duplex Reverse Motor.
Switchback Motor Control
Rotation of the Duplex Reverse Motor (M9 DU) is controlled by the signal output from the
Duplex Board (PWB-A DU).
Transport and Duplex Paper Take-Up Mechanism
Transport and Duplex Paper Take-Up Operation
Drive for the Duplex Unit is provided by the Duplex Unit Transport Motor (M8 DU).

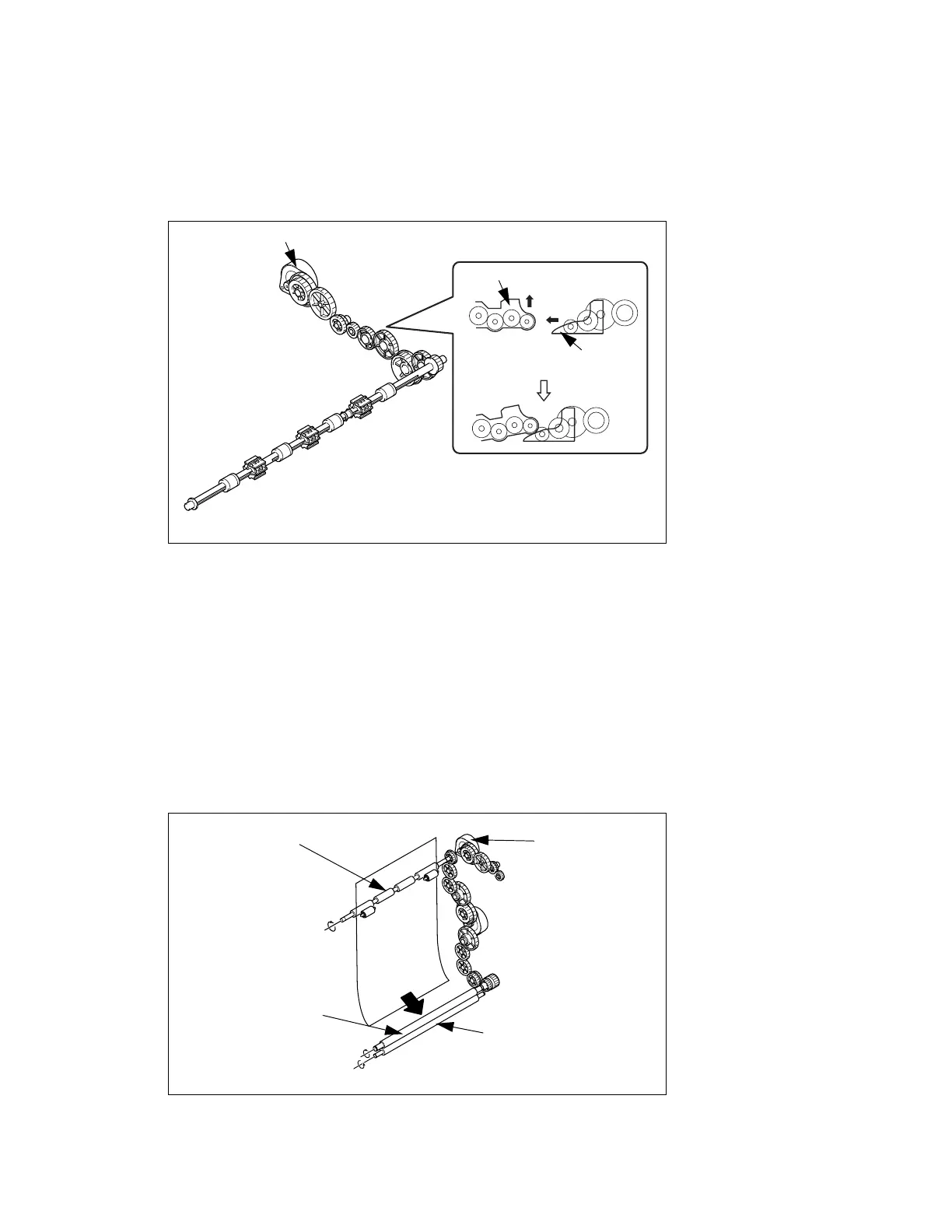

4057to2508c0
Duplex Reverse Motor (M9 DU)
Duplex Unit Lever
Fusing Unit Gear Assy
4057to2509c0
Duplex Unit Trans-
port Motor
(M8 DU)
Duplex Unit Transport Roller
1
Duplex Unit Transport Roller 2
Duplex Registration Roller

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
