2-52 Phaser 7400 Color Printer Service Manual
Trays
Standard input trays include the 100-sheet, multi-purpose Tray 1 (MPT) and one
550-sheet universal tray. Standard output trays include a 500-Sheet facedown Top
Output Tray with offset capability, and a 250-sheet faceup Side Output Tray.
Tray 1 (MPT)
The Tray 1 (MPT) feeds standard and custom size media into the printer. The printer’s
Feed Motor, shared with Tray 2, drives the Tray 1 (MPT) Feed Roller to feed media
from the tray. Tray 1 (MPT) components include:
■ Feed Rollers (Feed Retard and Pick)
Transport media from Tray 1 (MPT) to the Registration Assembly.
■ Tray 1 (MPT) No Paper Sensor
Detects when media is in Tray 1 (MPT).
■ Tray 1 (MPT) Level Sensor
Detects the presence of media at the Pick Roller.
■ Tray 1 (MPT) Home Position Sensor
Located in the Registration Assembly, it detects the position of the Feed drive.
■ Feed-Out Sensor #1
Detects media exiting the Tray 1 (MPT) Feed Rollers
■ OHP Sensor
Detects when transparency media is being fed to the Registration Assembly.

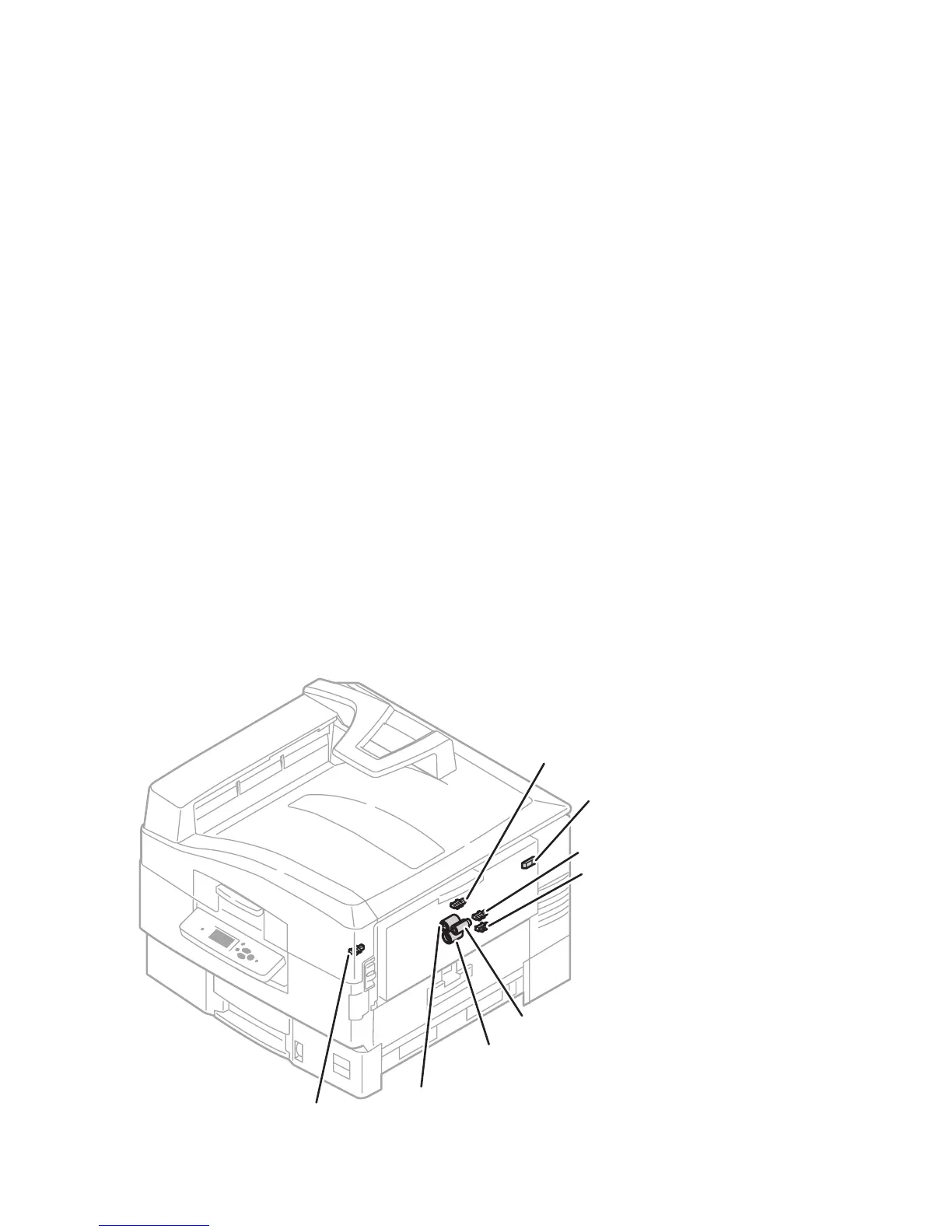

Pick Roller
Retard Roller
Feed Roller
No Paper Sensor
Level Sensor
Feed-Out Sensor #1
Tray 1 (MPT)
Home Position Sensor
Door A Interlock Switch
s7400-399

Xerox Phaser 7400 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	12 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Storage media	HDD
Internal memory	512 MB
Processor model	PowerPC
Maximum internal memory	1 MB
Internal storage capacity	20 GB
Total input capacity	800 sheets
Maximum input capacity	3000 sheets
Paper tray 2 input capacity	350 sheets
Auto document feeder (ADF) input capacity	1650 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
Maximum ISO A-series paper size	A3
Power requirements	100-240V, 50/60Hz
Networking features	Fast Ethernet
Supported media weight(s)	270 g/m²
Maximum operating temperature range (T-T)	10 - 32 °C
Certification	FCC p.15 A, CE
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-4 - 140 °F
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	1438 x 623 x 975 mm
