Xerox Phaser 7400 Service Manual

2-38 Phaser 7400 Color Printer Service Manual
Top Output Tray
The Top Output Tray is a facedown, 500-sheet tray located on the printer’s Top Cover.
The tray receives paper from the Exit Assembly which includes a Job Offset
Assembly for offset output capability.
Side Output Tray
The Side Output Tray is a faceup, 250-sheet tray located on the printer’s left side.
Installation of the Finisher requires that this tray be closed and locked.
Finisher/Inverter

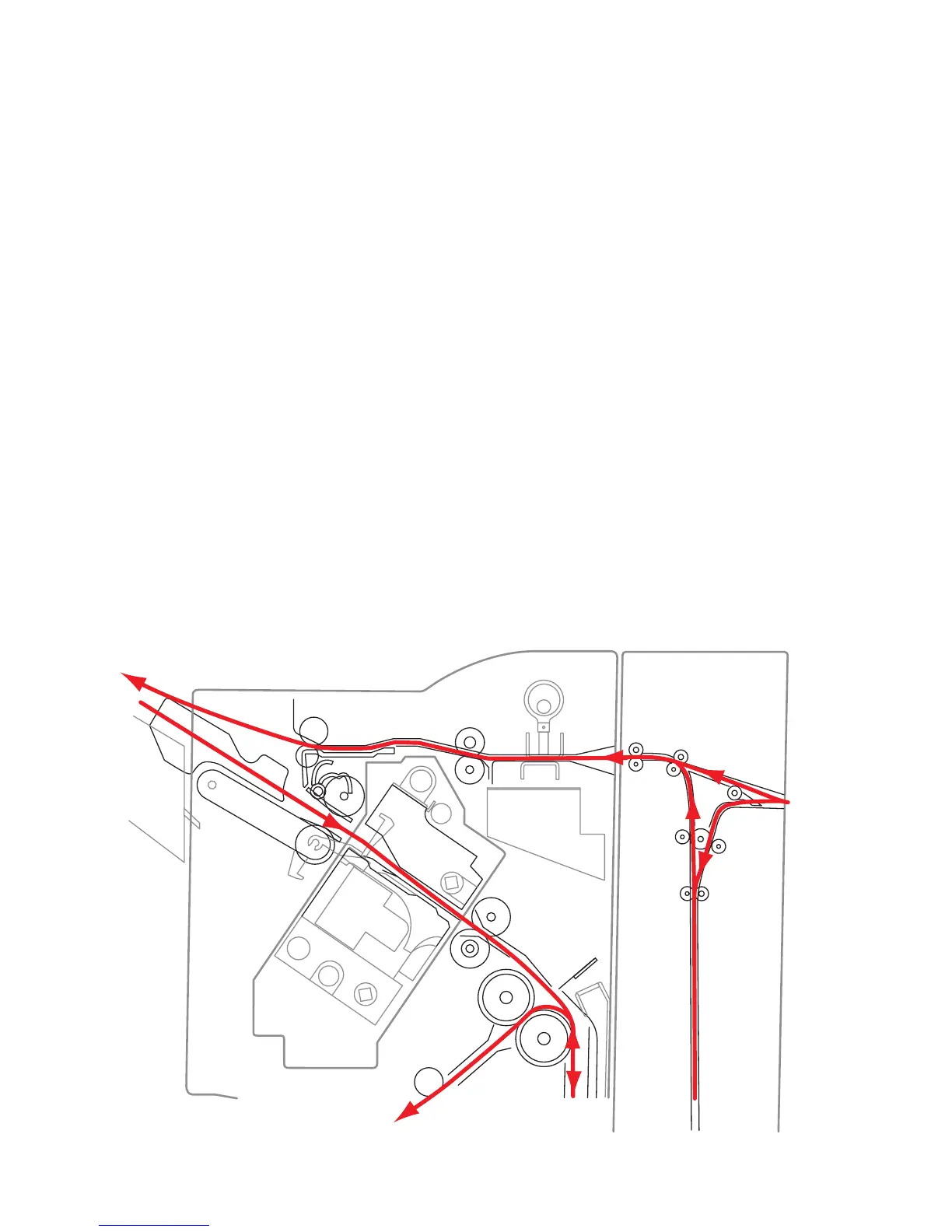

What follows is a summary of the output path through the Finisher. A detailed
description of the Finisher paper path appears in Book 2, Section 2.
Paper fed from the printer’s left side exit enters the Finisher and passes through the
Finisher Punch. If punching is specified, the Punch sensors align the sheet and punch
the prescribed holes. The sheet is then transferred to the Compiler Tray for stacking.
If stapling is specified, the stack is drawn into the Stapler and the Staple Head places
a staple at the point specified then the Compiler Tray ejects the stapled stack to the
Upper Tray. For Saddle stitching, the stack is drawn through the Stapler and stapled at
the center point. The stapled stack continues through the Stapler and is folded in the
Saddle Unit. The stapled and folded stack is delivered to the Lower Tray.
s7400-386

Xerox Phaser 7400 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	12 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Storage media	HDD
Internal memory	512 MB
Processor model	PowerPC
Maximum internal memory	1 MB
Internal storage capacity	20 GB
Total input capacity	800 sheets
Maximum input capacity	3000 sheets
Paper tray 2 input capacity	350 sheets
Auto document feeder (ADF) input capacity	1650 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
Maximum ISO A-series paper size	A3
Power requirements	100-240V, 50/60Hz
Networking features	Fast Ethernet
Supported media weight(s)	270 g/m²
Maximum operating temperature range (T-T)	10 - 32 °C
Certification	FCC p.15 A, CE
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-4 - 140 °F
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	1438 x 623 x 975 mm
