Xerox Phaser 7760 Service Manual

January 2010
4-15
Phaser 7760 Color Laser Printer
REP 4.3
Repairs and Adjustments
Revised
REP 4.3 Developer Drive Motor
Parts List on PL 1.1
Removal
1. Remove the Rear Cover (REP 14.2).
2. Remove the HVPS Chassis (REP 1.6).
3. Remove the 5 V LVPS Bracket (REP 1.1).
4. Removing the Developer Drive Module (Figure 1).
a. Disconnect P/J232 (refer to Section 7, Developer Motor, Tray 2 Size Switch Plug/
Jack Locations - Figure 17).
b. Remove the harness from the Harness Clip.
c. Remove the 2 screws and remove the Developer Drive Module.

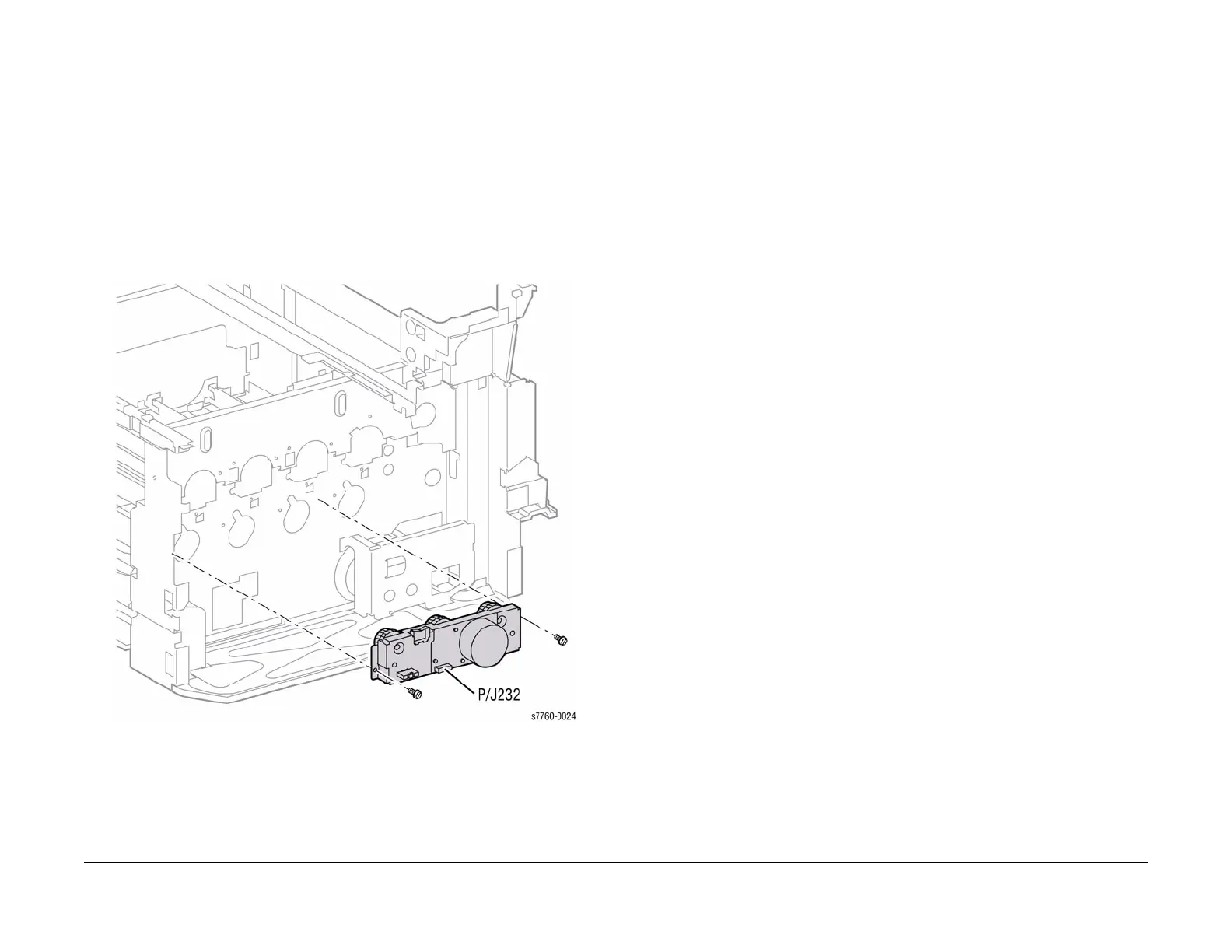

Figure 1 Removing Developer Drive Module
