Xerox Phaser 7760 Service Manual

January 2010
4-35
Phaser 7760 Color Laser Printer
REP 8.7
Repairs and Adjustments
Revised
REP 8.7 Exit Transport Assembly
Parts List on PL 2.10
Removal
1. Remove the Rear Cover (REP 14.2).
2. Remove the Rear Left Upper Cover (REP 14.5).
3. Remove the Fuser Cover (REP 14.8).
4. Open the Left-Hand Door A.
5. Removing the Exit Transport (Figure 1).
a. Remove the 1 screw securing the Transport Assembly Cover and remove the Cover.
b. Disconnect the wiring harness P/J and the Left-Hand Cover Interlock Connector.
c. Remove the 3 screws and remove the Transport Assembly.

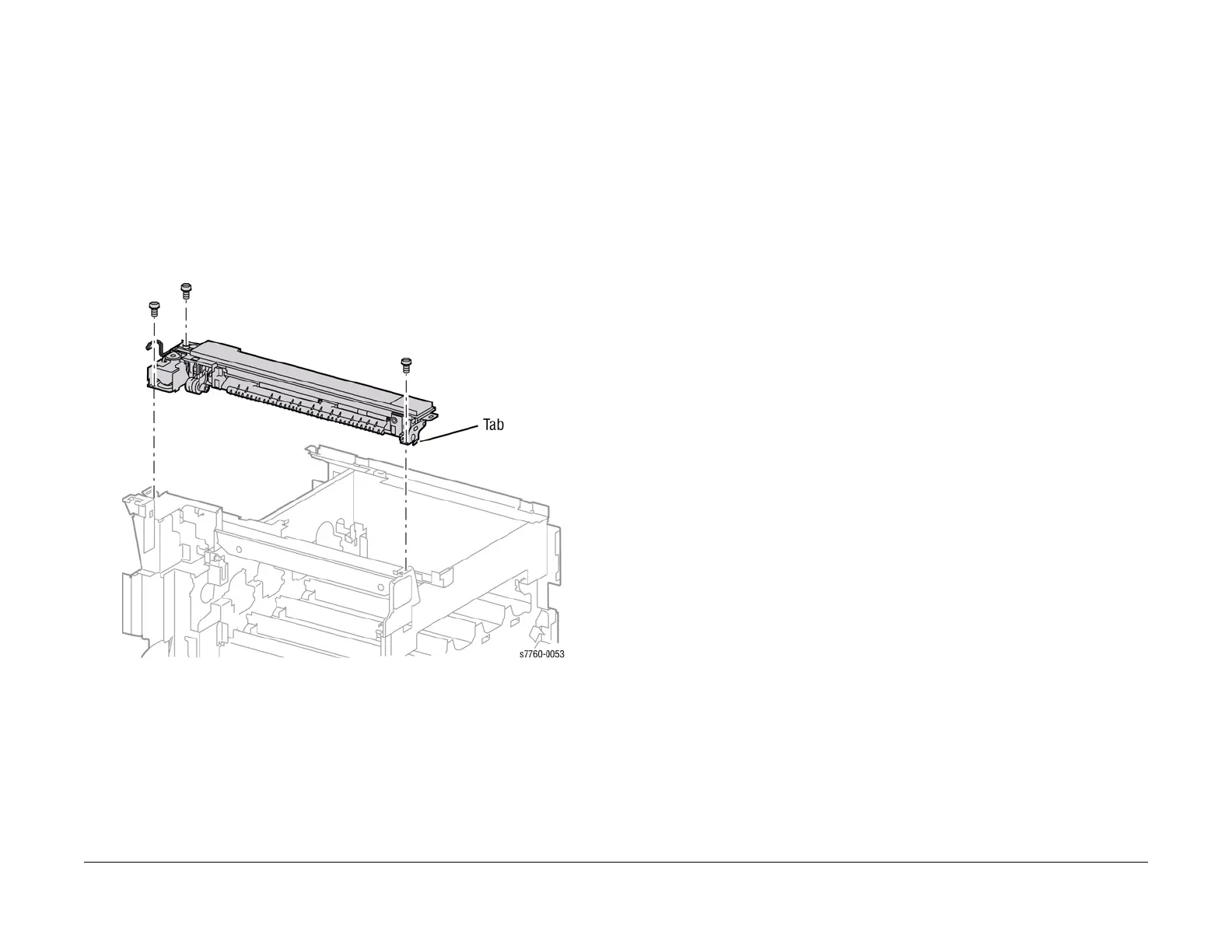

Figure 1 Removing Exit Transport
